Wiper Motor: Installation
WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

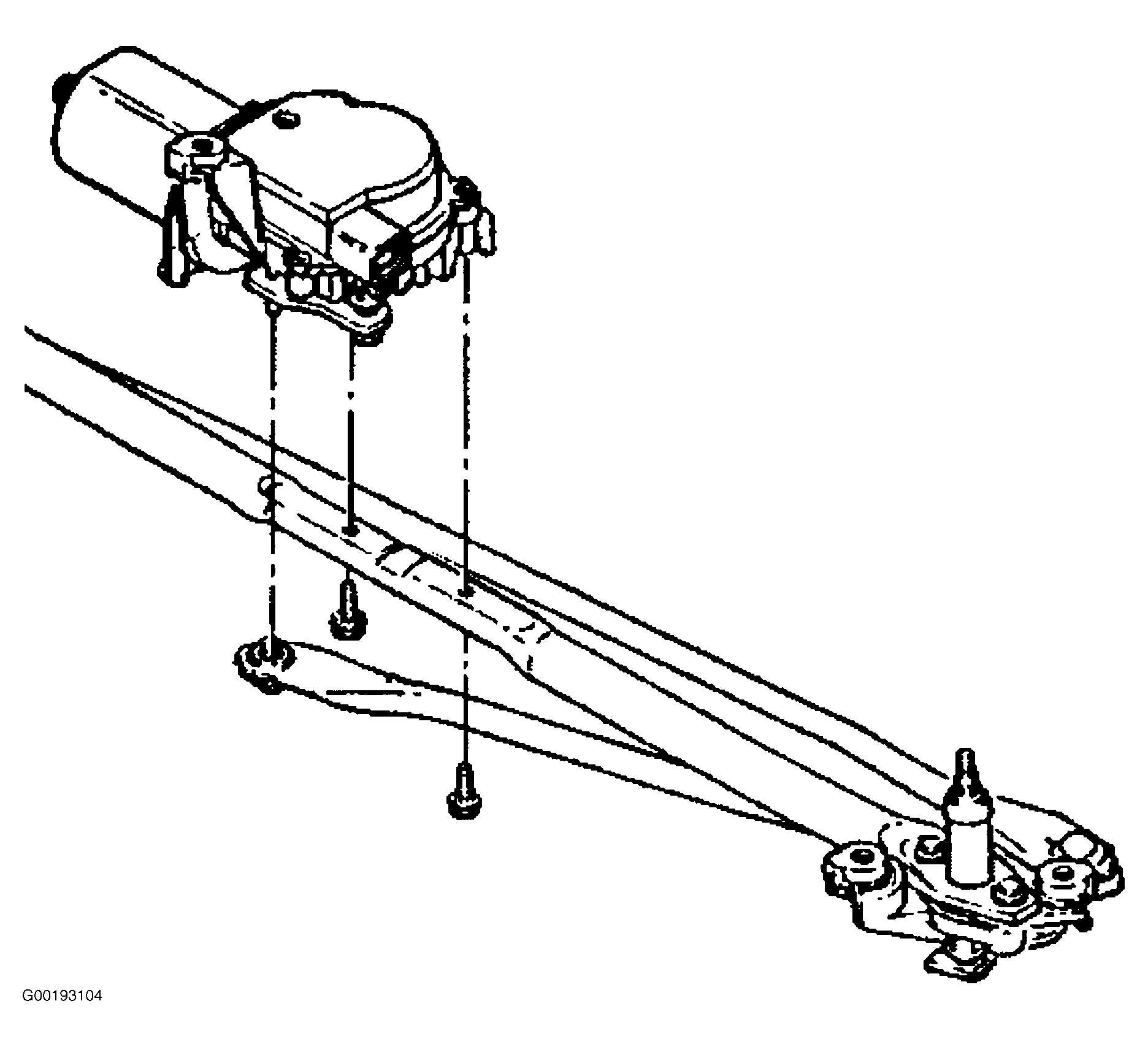

Install wiper motor assembly onto wiper drive system module with the 2 bolts. Tighten bolts to 8 N.m (71 lb in). See Fig 1 . Install drive link onto wiper motor crank arm. Install wiper drive system module onto vehicle. See WIPER DRIVE SYSTEM MODULE . Ensure wiper/washers operate properly.
