Wiper Motor Cover: Installation
WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

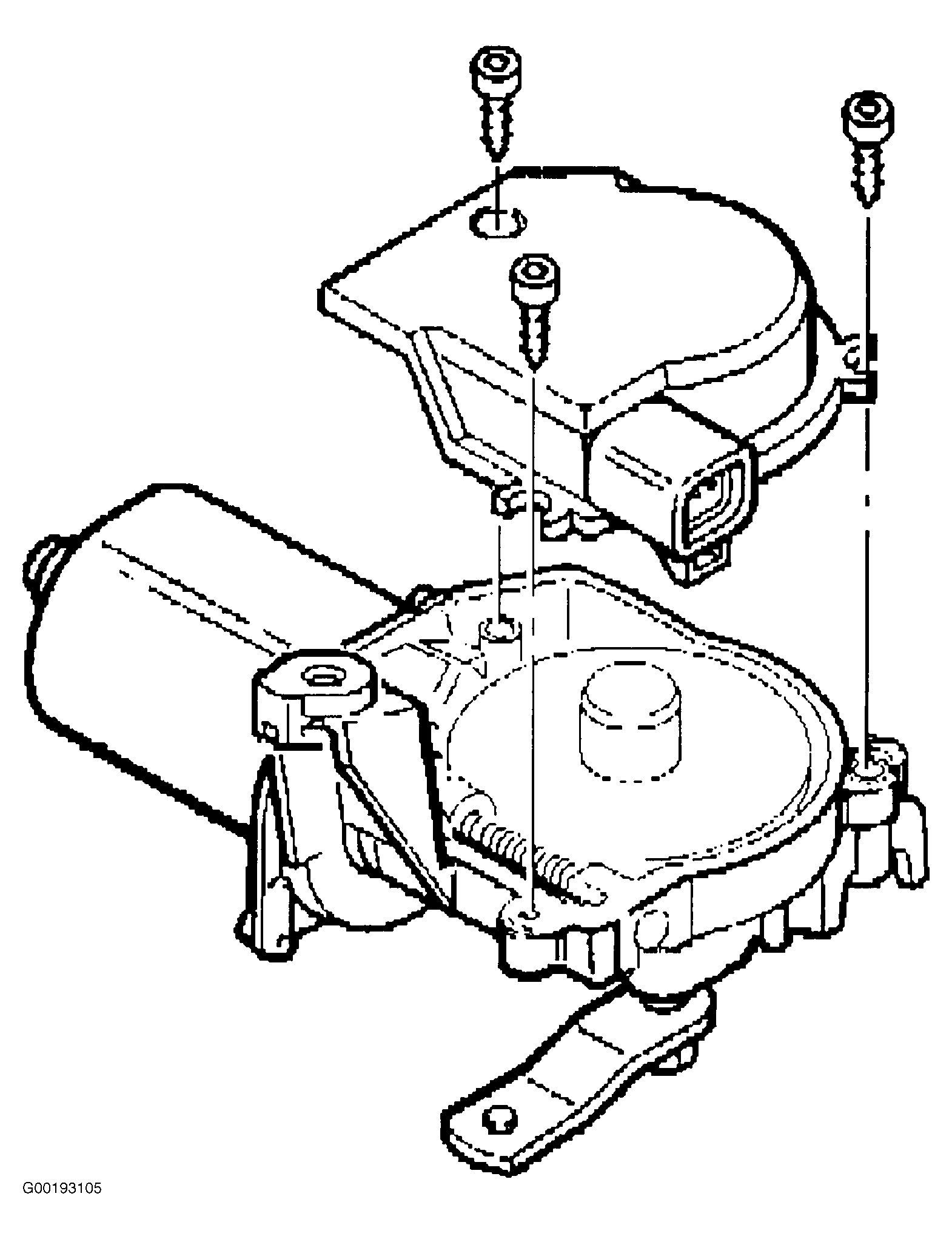

Install wiper motor cover onto wiper motor with 3 screws. See Fig 1 . Tighten screws to 2.5 N.m (22 lb in). Connect electrical connector to wiper motor. Install air inlet screen. Install wiper arms. Ensure wiper/washers operate properly.
