Secondary Air Injection Crossover Pipe/Hose: Installation
WARNING: This page is about a different car, the 2003 Cadillac Seville and 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

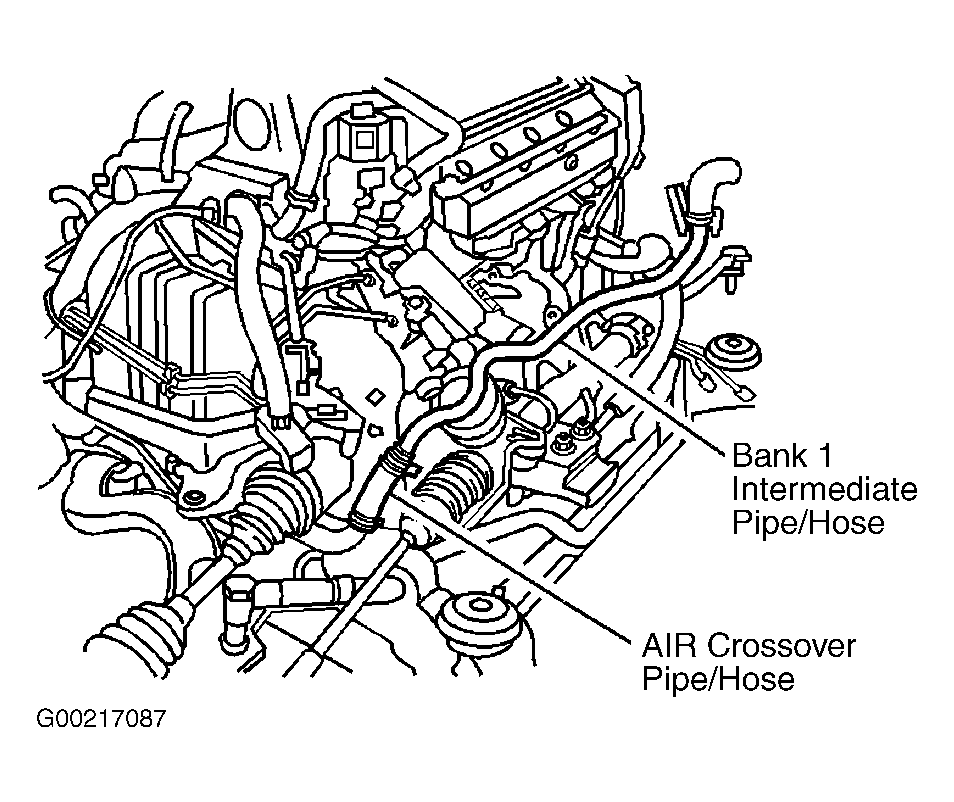

- Install the crossover pipe/hose to the bank 1 intermediate pipe/hose. Install the crossover pipe/hose to intermediate pipe/hose pinch clamp. Install the crossover pipe/hose to the AIR pump outlet hose.
- Install the clamp connecting the crossover pipe/hose to the AIR outlet hose. Install the tie straps to secure the crossover pipe/hose to the engine cradle. Lower the vehicle.
