| A/C Compressor Bracket Bolts |
30 (40) |
| A/C Compressor-To-Bracket Bolts |
16 (22) |
| AIR Pipe Bolt |
18 (24) |
| AIR Pipe Nut |
11 (15) |
| Accessory Drive Belt Tensioner Bolt |
30 (40) |
| A/T Cooler Lines |
15 (20) |
| AWD Drive Shaft Support Bearing Bolts |
19 (26) |
| AWD Drive Shaft-To-Rear Module Bolts |
37 (50) |
| Ball Joint Nuts |
74 (100) |
| Battery Terminal Bolt |
13 (18) |
| Battery Tray (Cooling Box) Bolts |
11 (15) |
| Body-To-Engine Ground Strap Bolt |
15 (20) |
| Camshaft Gear Bolts |
|
| Coolant Extension Pipe/Engine Lift Bracket Bolt |
15 (20) |
| Coolant Pipe Bracket Bolt |
15 (20) |
| Connecting Rod Bolts |
|
| Cradle (Frame)-To-Body Bolts |
114 (155) |
| Crankshaft |
| Bearing Bridge Outer Bolts |
15 (20) |
| Bearing Cap Bolts |
|
| Drive Gear Bolt |
|
| Reluctor Screws |
11 (15) |
| Cylinder Head Bolts |
|
| Drive Shaft Guard Strap Bolt |
19 (26) |
| Drive Shaft-To-Power Transfer Unit (PTU) Bolts |
19 (26) |
| Engine Ground Strap Bolts |
15 (20) |
| Exhaust |
| Front Pipe-To-Manifold Nuts |
31 (42) |
| Front Pipe-To-Rear Pipe Nuts |
22 (30) |
| Heated Oxygen (O2) Sensor |
33 (45) |
| Manifold Heat Shield Bolts |
18 (24) |
| Manifold-To-Cylinder Head Nuts |
15 (20) |
| Rear Pipe-To-Manifold Nuts |
31 (42) |
| Flexplate-To-Crankshaft Bolts |
|
| Flexplate-To-Torque Converter Bolts |
55 (75) |
| Front Timing Cover Bolts |
18 (24) |
| Generator Lower Mount Bolts |
30 (40) |
| Idler Pulley (Drive Belt) Bolts |
15 (20) |

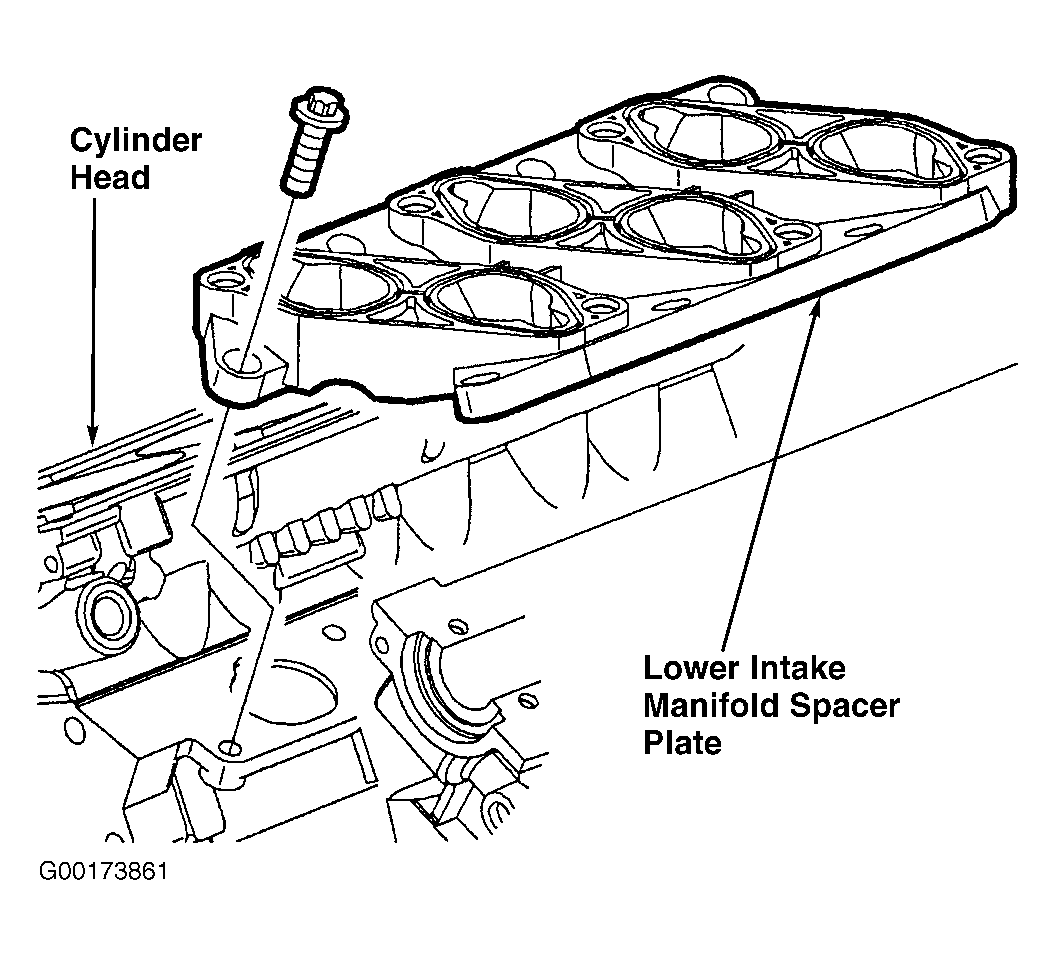

| Intake Manifold Spacer-To-Cylinder Head Bolts |
12 (16) |
| Knock Sensor |
18 (24) |
| Motor Mount |
| Bracket Bolts |
81 (110) |
| Side Nuts |
81 (110) |
| To-Bracket Bolts |
37 (50) |
| To-Frame Bolts |
37 (50) |
| To-Transaxle Bolts |
37 (50) |
| Oil Pan |
| Drain Plug |
18 (24) |
| To-Block Bolts |
11 (15) |
| Oil Pump Pressure Relief Valve Plug |
30 (40) |
| Power Steering Pump Bolts |
18 (24) |
| Shift Control Rod Pinch Bolt |
|
| Spark Plugs |
15 (20) |
| Stabilizer Bar |
| Link Nuts |
48 (65) |
| To-Frame Bolts |
37 (50) |
| Starter Motor Bolts |
30 (40) |
| |
Steering |
| Gear-To-Shaft Bolt |
22 (30) |
| Shaft-To-Intermediate Shaft Bolt |
25 (34) |
| Suspension Support Bolts |
|
| Thermostat Housing Bolts |
15 (20) |
| Tie Rod Nuts |
37 (50) |
| Timing Belt Tensioner Bolts |
30 (40) |
| Transaxle |
| Mount Bolts |
37 (50) |
| To-Block Bolt |
48 (65) |
| To-Oil Pan Bolts |
48 (65) |
| To-Radiator Cooling Line |
18 (24) |
| Water Pump-To-Block Bolts |
18 (24) |
| Wheel Lug Nuts |
92 (125) |
| INCH Lbs. (N.m) |
| Ball Joint Nut |
|
| Battery Bar Side Support Bolt |
89 (10) |
| Battery Box Cover Screws |
18 (2) |

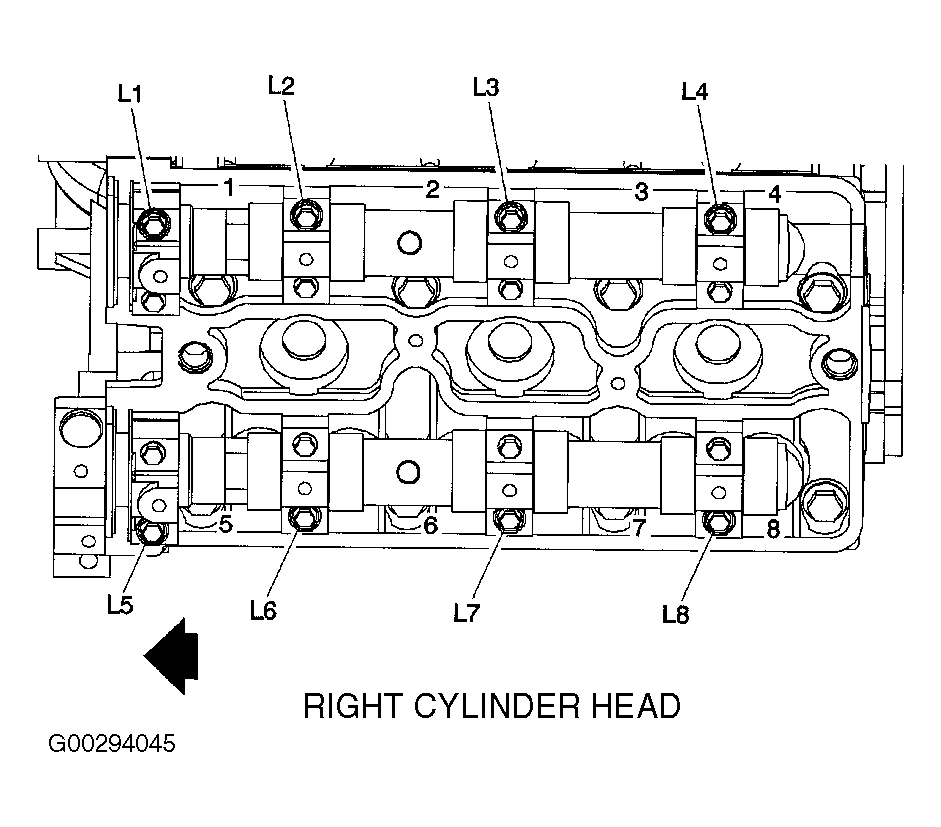

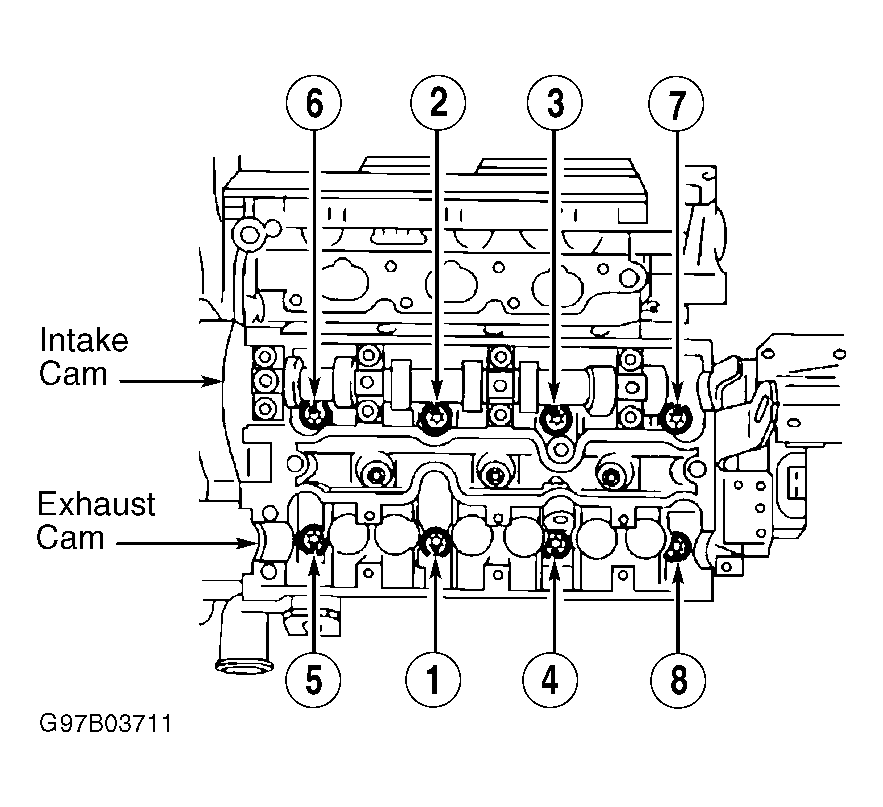

| Camshaft Bearing Cap Bolts |
71 (8) |
| Crankshaft Bearing Bridge Adjuster Sleeve Bolts |
71 (8) |
| Condenser Block-To-Radiator End Tank Bolts |
35 (4) |
| Condenser-To-Radiator Bolts |
35 (4) |
| Engine Block Heater Bolt |
89 (10) |
| Exhaust Heat Shield-To-Underbody |
89 (10) |
| Fan Shroud-To-Radiator Bolts |
35 (4) |
| Front Timing Cover Bolts |
71 (8) |
| Ignition Module Bolts |
71 (8) |
| Liquid Line-To-Condenser Bolt |
35 (4) |
| Lower Control Arm-To-Knuckle Nut |
|

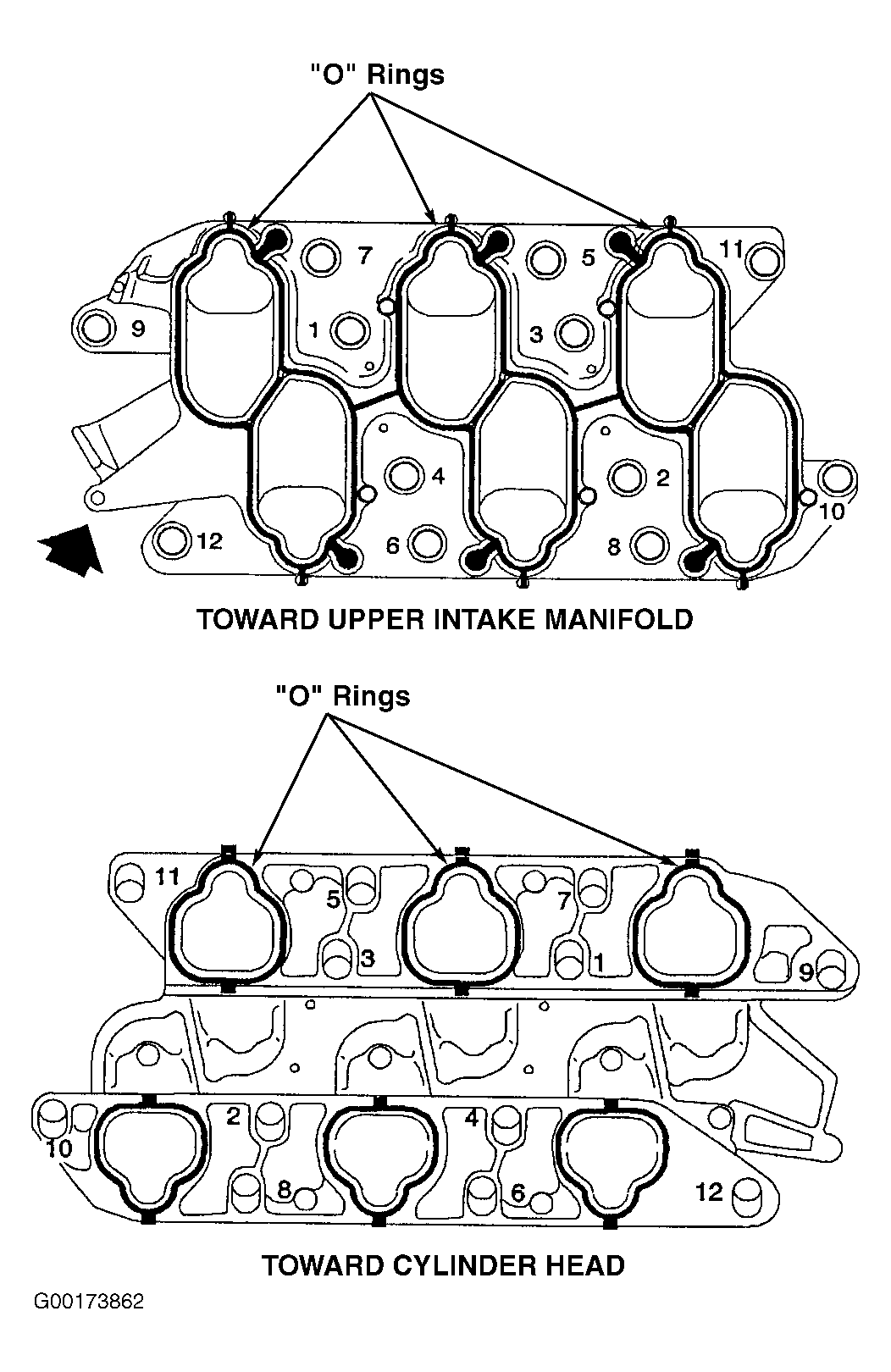

| Lower Intake Manifold-To-Spacer Bolt |
66 (7.5) |
| Oil Pump Bolts |
80 (9) |
| Oil Pump Pickup Tube Bolts |
71 (8) |
| Outlet Resonator/Air Cleaner Duct-To-Support Bracket Bolts |
89 (10) |
| Radiator Bracket-To-Rail Bolts |
53 (6) |
| Rear Timing Cover Bolts |
71 (8) |
| Rear Timing Cover Threaded Pins |
89 (10) |
| Thermostat |
| Housing Bolts |
89 (10) |
| Housing Cover-To-Thermostat Housing Bolts |
89 (10) |
| Pipe Bracket-To-Cylinder Head Bolt |
71 (8) |
| Throttle Body Bolts |
66 (7.5) |
| Transaxle Cooler Line Bolts |
89 (10) |
| Underhood Fuse Block (UHFB) Connector Bolts |
35 (4) |
| Underhood Fuse Block (UHFB) B+ Terminal Nut |
89 (10) |
| Upper Intake Manifold-To-Spacer Bolts |
66 (7.5) |
| Valve Cover Bolts |
71 (8) |
| Water Pump Pulley Bolt |
71 (8) |
