Removal & Disassembly
WARNING: This page is about a different car, the 2003 Saturn Vue and 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Oil pump gear rotors may also be referred to as gears.

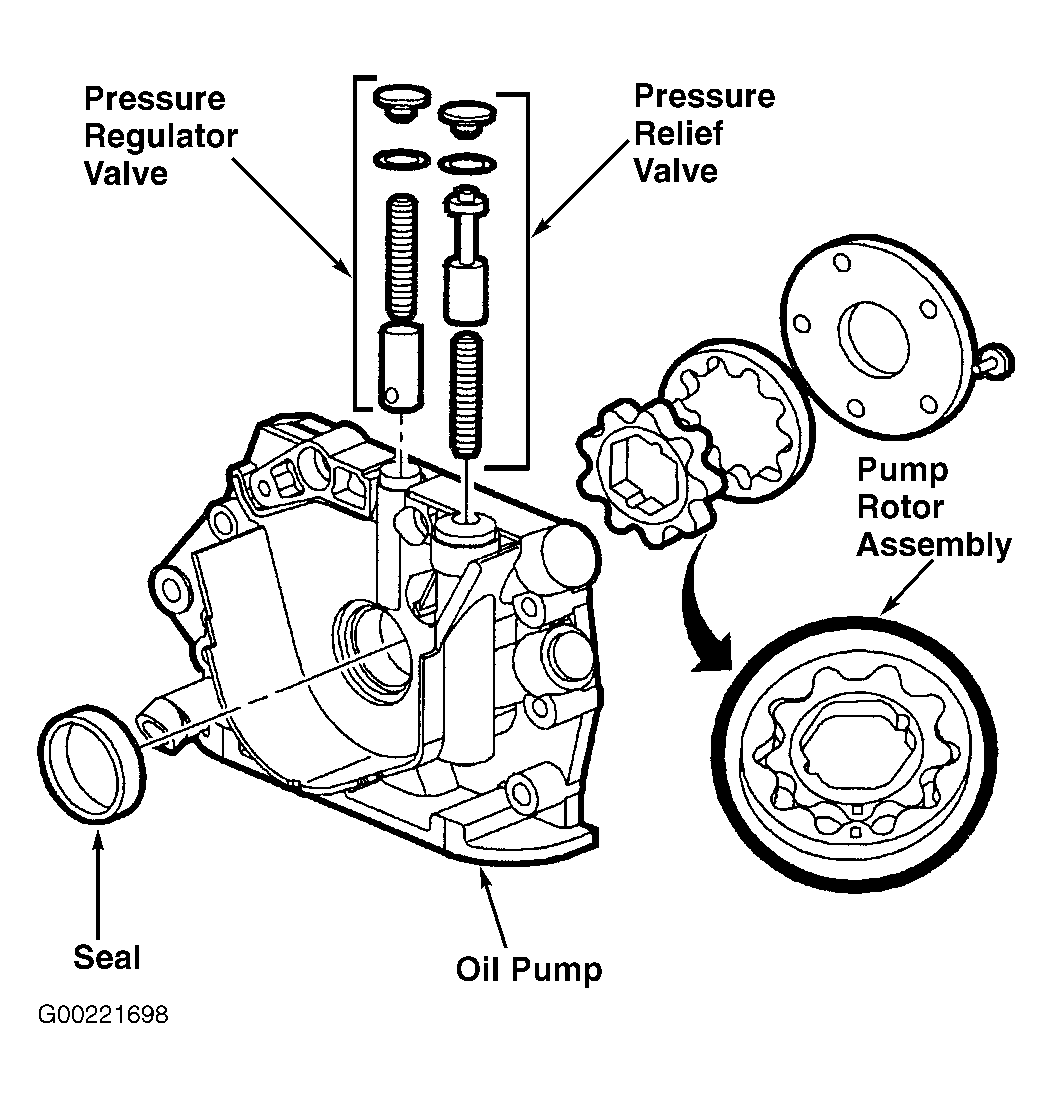

Remove engine front cover and oil pan. See OIL PUMP under REMOVAL & INSTALLATION. Place Identification marks on both oil pump gear faces for installation reference. Remove cover plate and rotors. Remove oil pump pressure relief valve. Remove oil pump regulator valve. See Fig 1.
