Hub & Bearing Assembly: Installation

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the park brake actuator to the rear wheel bearing/hub. See PARK BRAKE ACTUATOR .

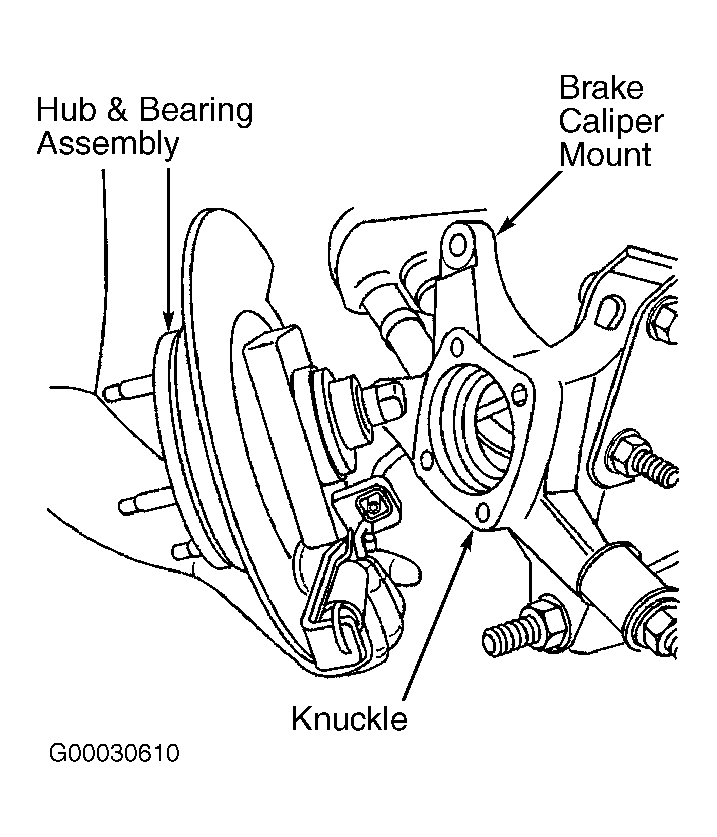

  2. Install the wheel bearing/hub and park brake assembly to the knuckle. See Figure.
  3. Install the wheel bearing/hub-to-knuckle bolts. Tighten the bolts to 55 Ft. Lbs. (75 N.m).
  4. Install the park brake cable to the park brake actuator. See PARK BRAKE CABLE .

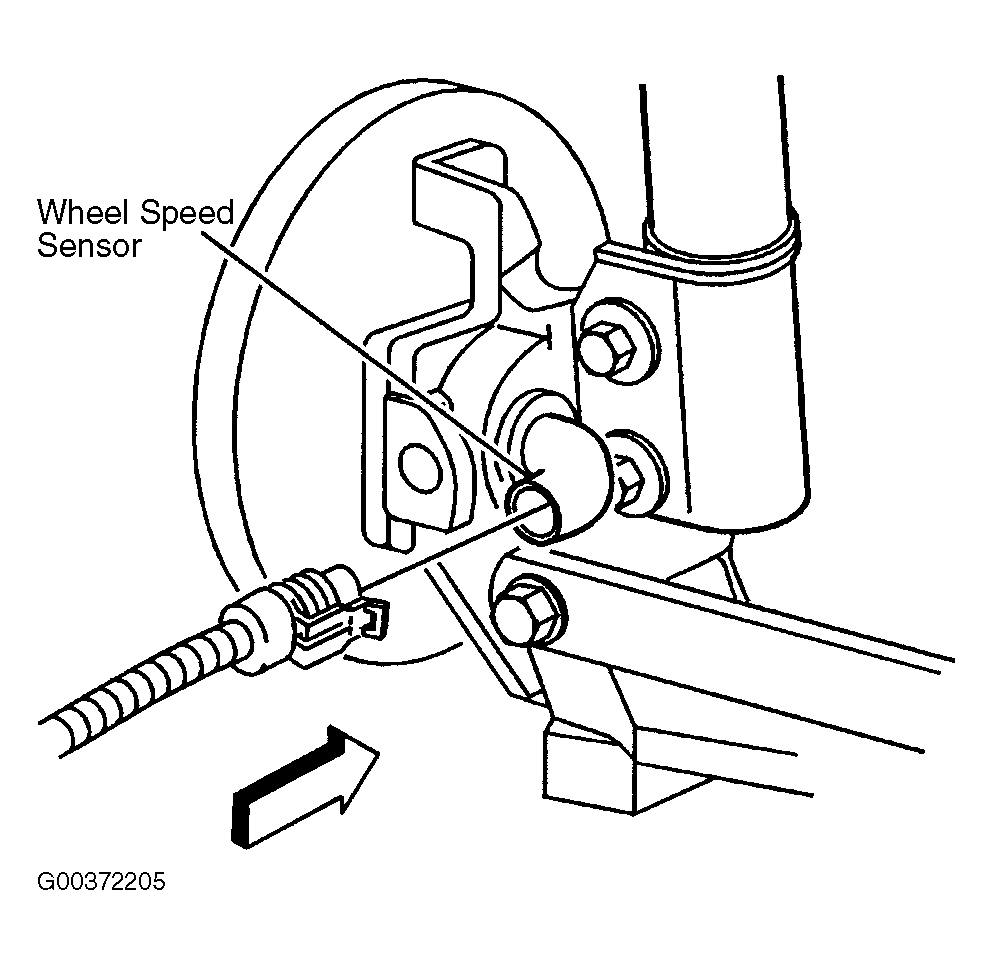

  5. Install the ABS electrical connector to the wheel speed sensor, if equipped. See Figure.
  6. Install the brake rotor. See REAR BRAKE ROTOR .
  7. Install the tires and wheels.
  8. Lower the vehicle.
