Spark Plug Wires: Removal

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Twist the spark plug boot one-half turn in order to release the boot. Pull on the spark plug boot only. Do not pull on the spark plug wire or the wire could be damaged.

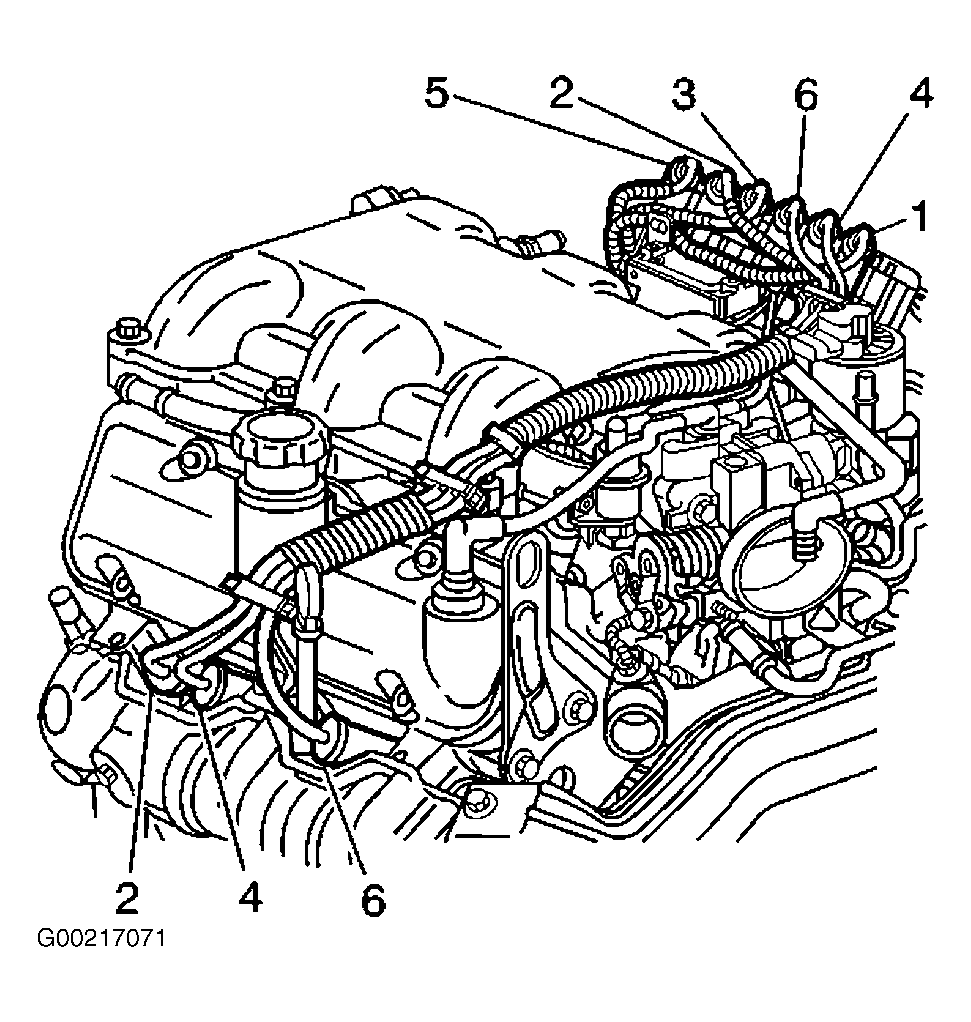

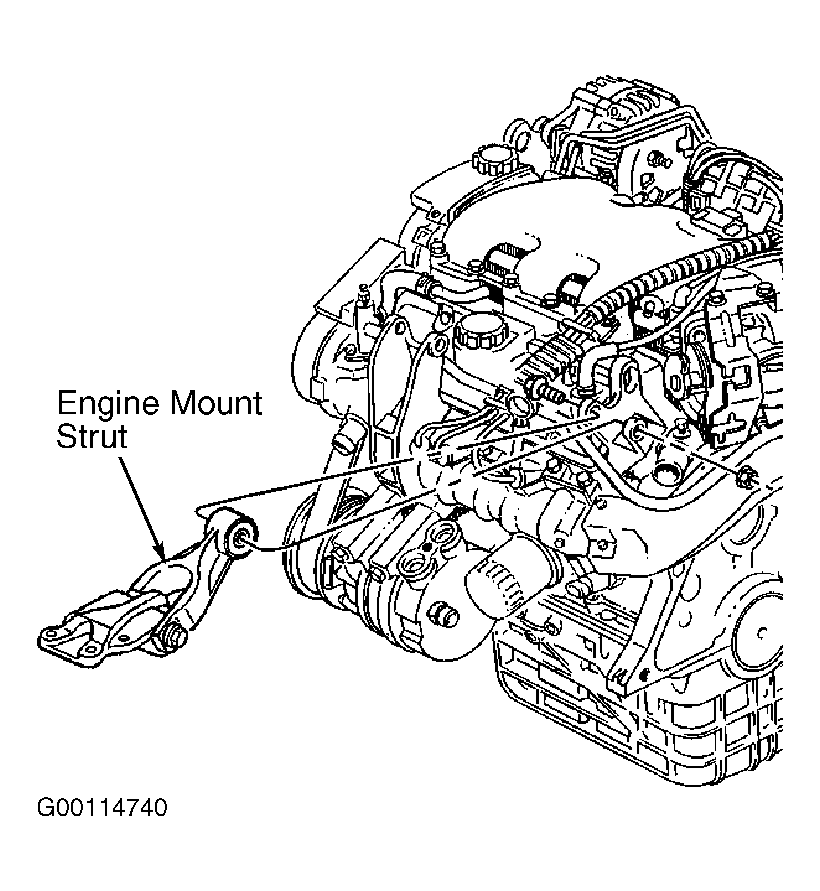

  1. Remove the spark plug wires (2, 4, and 6) from the front bank (bank 1) spark plugs. Remove the spark plug wires from the retaining clips. Set the park brake. Shift the transaxle into Neutral. Remove the engine mount strut bolts. See Figure .

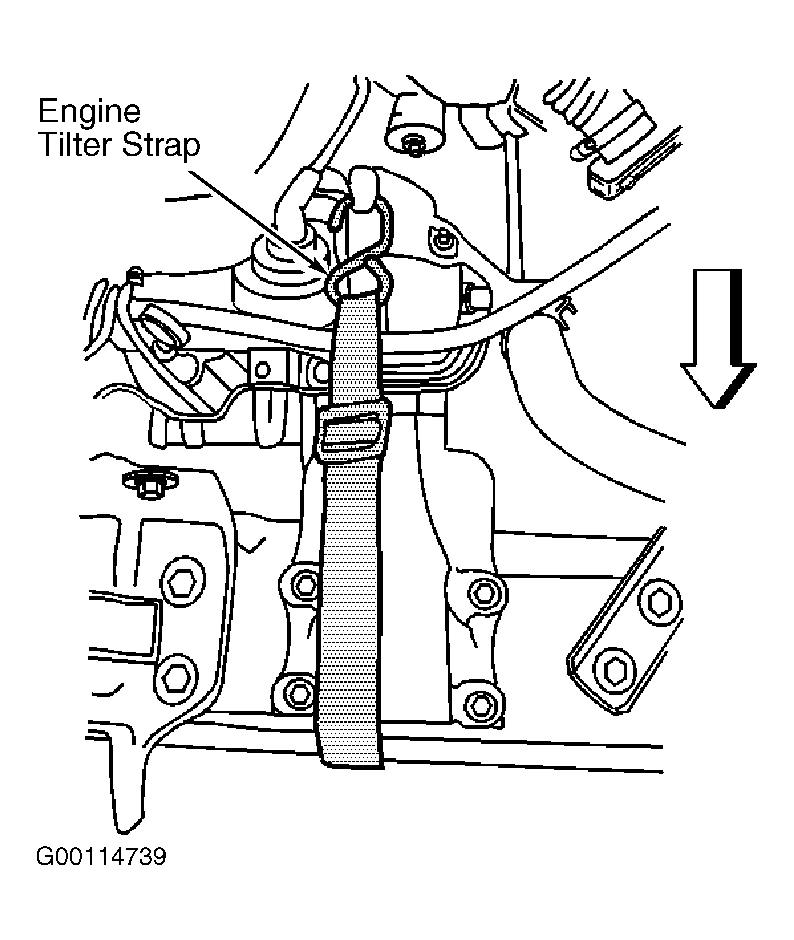

  2. Swing the engine mount struts aside. Install the Engine Tilter Strap (J-41131) to the engine. See Figure . Pull on the engine in order to rotate the engine forward. Tighten the engine tilter strap.

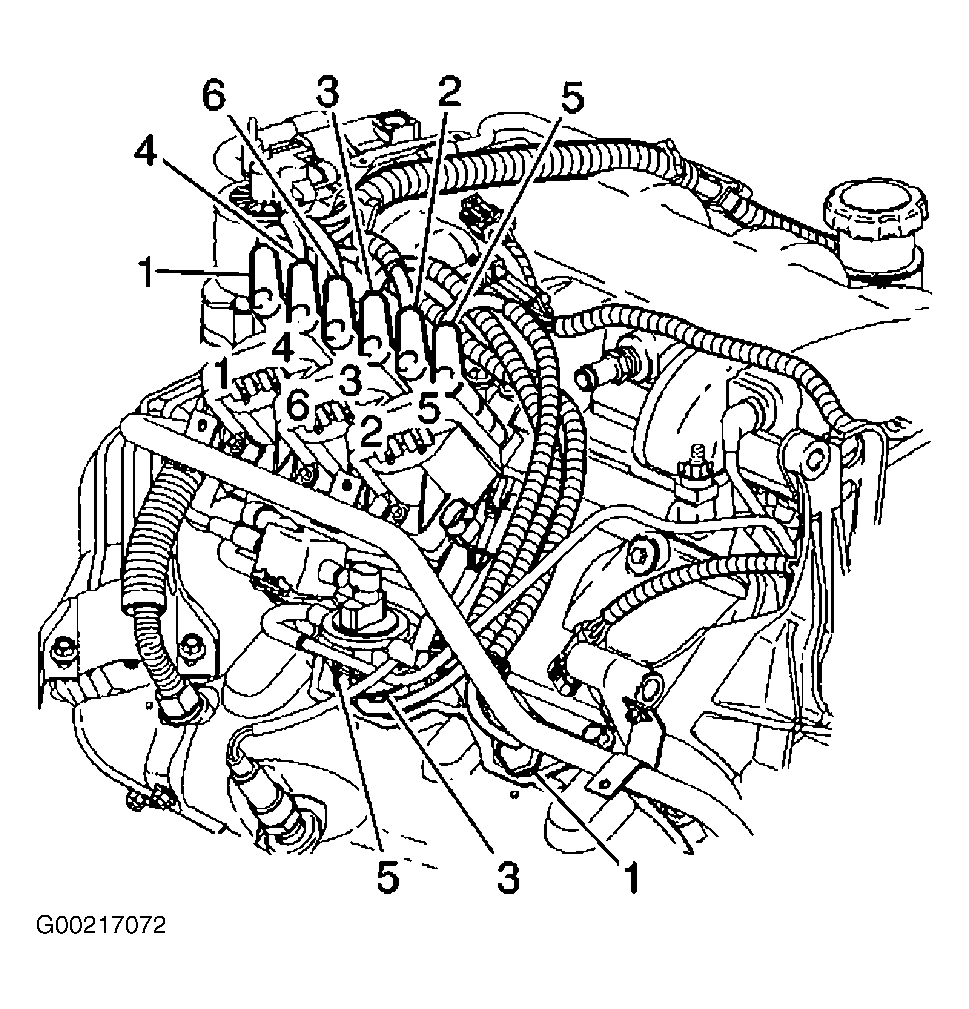

  3. Remove the spark plug wires (1, 3, and 5) from the rear bank (bank 2) spark plugs. Remove the spark plug wires from the retaining clips. Remove the spark plug wires from the ignition coils. Remove the spark plug wires from the engine. See Figure and Figure . If you are replacing the spark plug wires, transfer the boot heat shields, spark plug wire conduit and spark plug wire retaining clips.
