Removal & Installation
WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

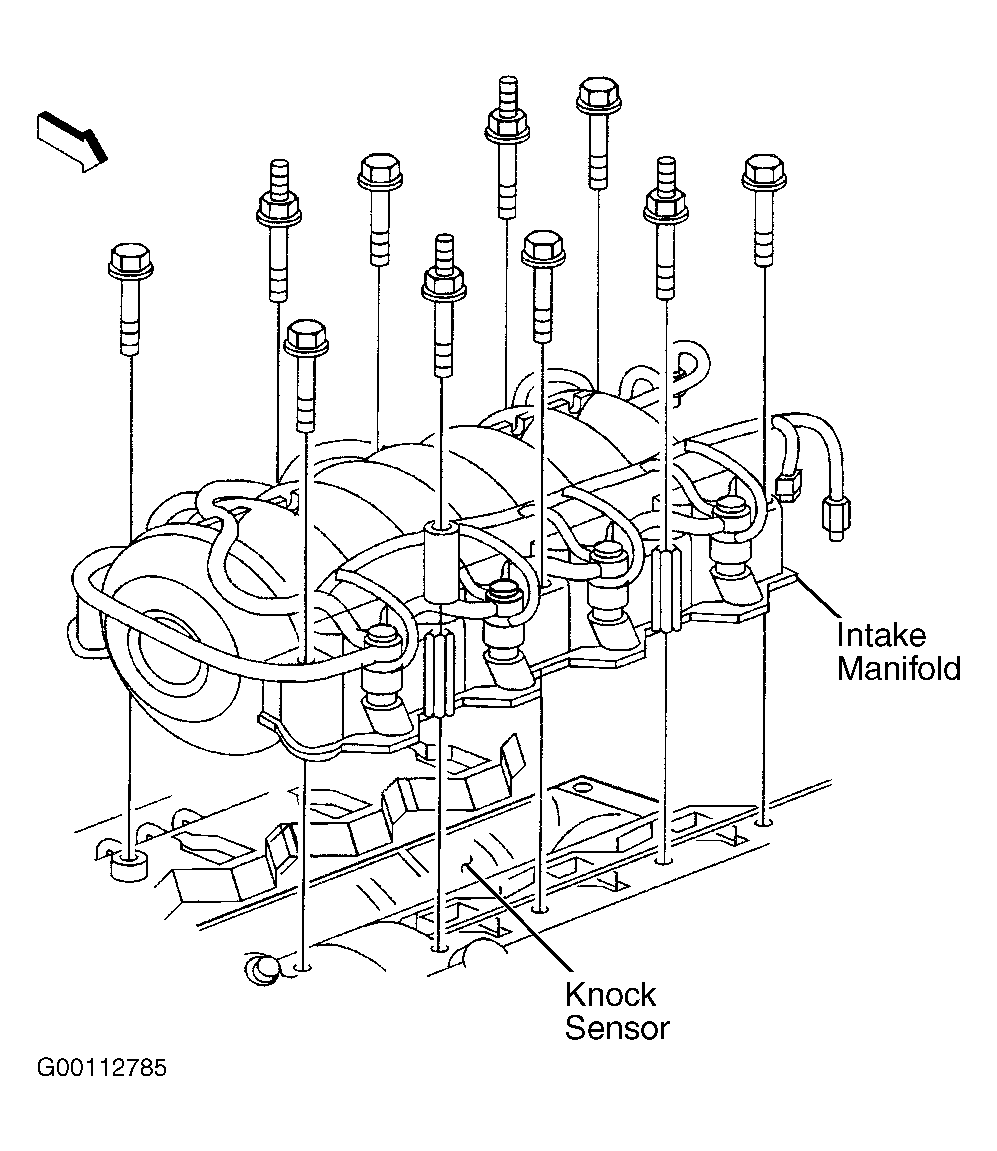

Disconnect negative battery cable. See NEGATIVE BATTERY CABLE under MISCELLANEOUS. Remove intake manifold. See appropriate article in ENGINES. Disconnect knock sensor electrical connector. Remove knock sensor. See Fig 1 . To install, reverse removal procedure. Tighten knock sensor to specification. See TORQUE SPECIFICATIONS .
