Throttle Body: Removal

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE  under AIR INDUCTION SYSTEMS.

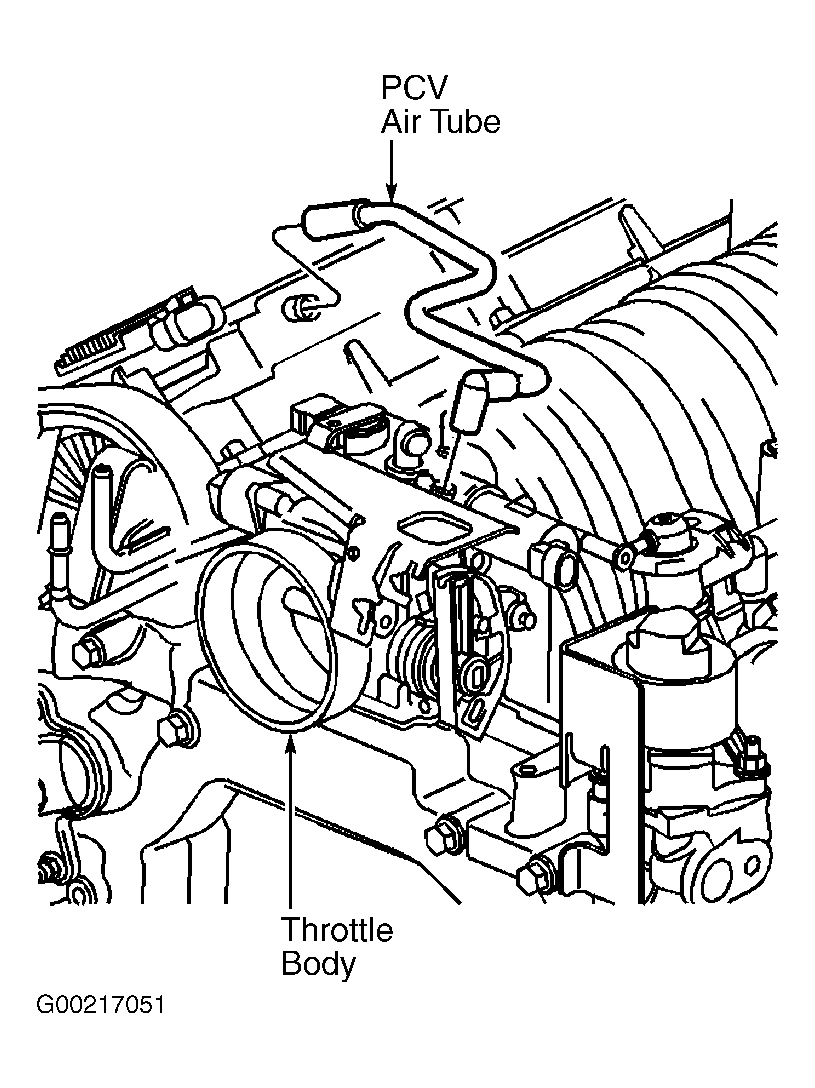

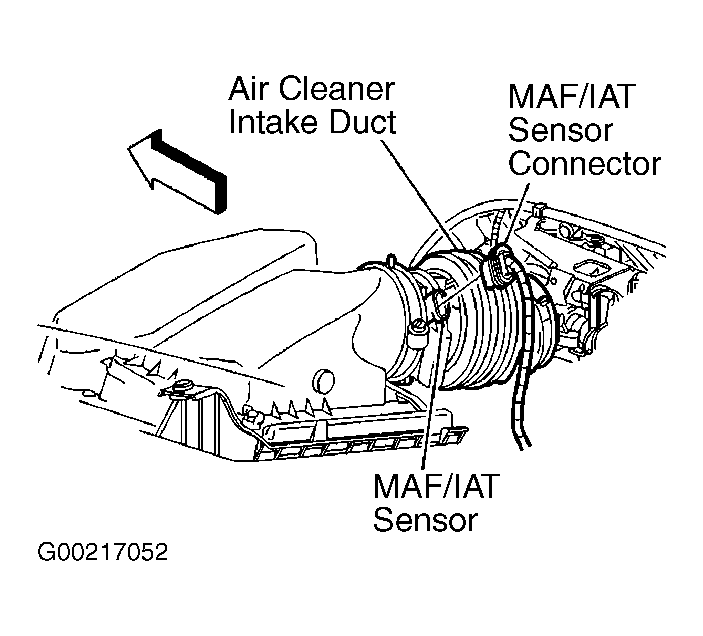

  2. Disconnect the Mass Airflow/Intake Air Temperature (MAF/IAT) sensor harness connector. See Figure . Remove the air cleaner intake duct. Remove the PCV valve air tube. See Figure . Remove the cruise control cable and the accelerator control cable from the accelerator controls cable bracket.

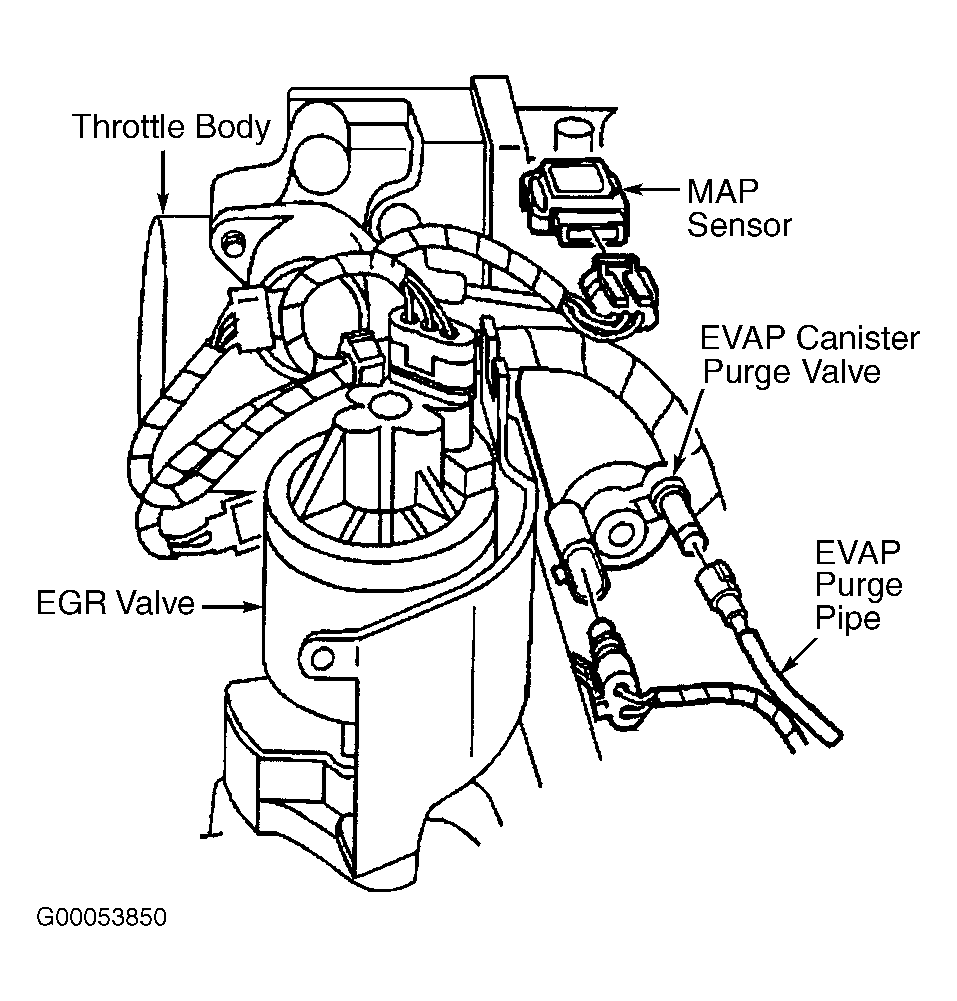

  3. Remove the cruise control cable and the accelerator control cable from the throttle body lever. Disconnect the idle air control valve harness connector. See Figure . Disconnect the TP sensor harness connector.
  4. Remove the fuel feed and return lines from the retainer on the accelerator controls cable bracket. Remove the transaxle shift cable clip from the accelerator controls cable bracket. Remove the throttle body. Remove the accelerator controls cable bracket from the throttle body, if necessary.
