Cruise Control Cable (3.5L V6): Removal
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the cruise control cable from the throttle body cam.
- Disconnect the cruise control cable from the throttle body bracket.

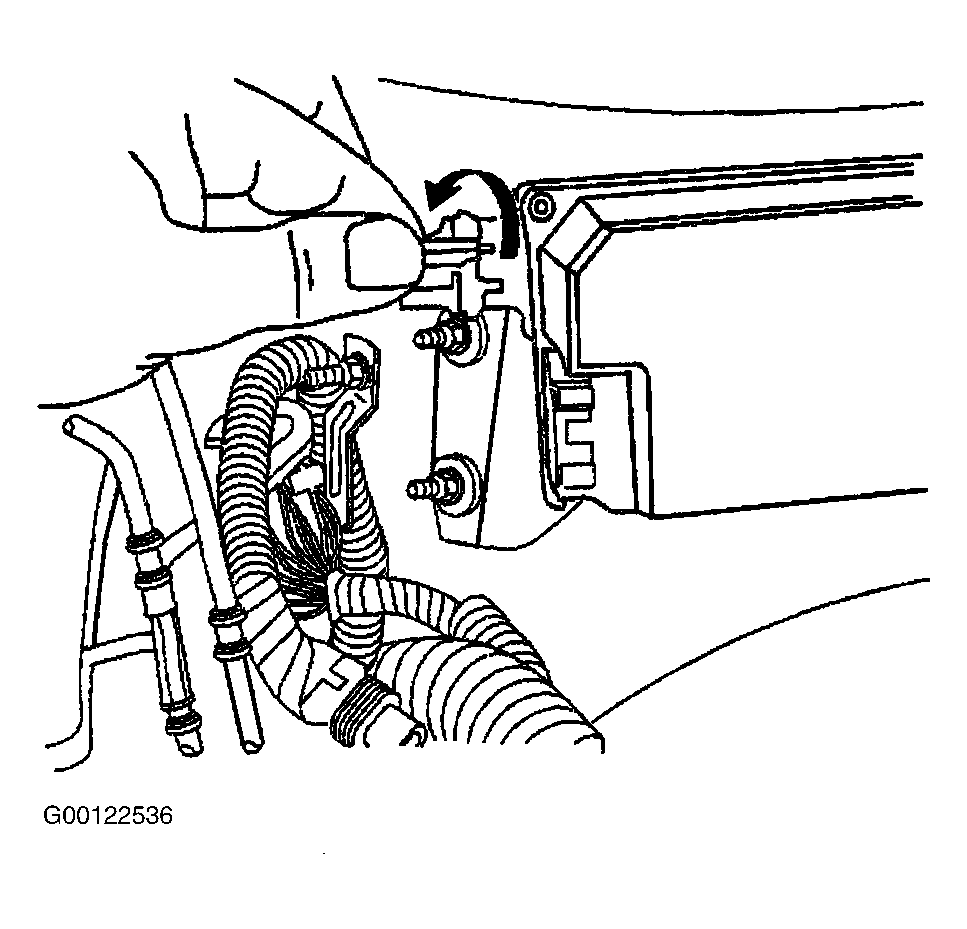

- Twist the cruise control cable housing counterclockwise in order to release the cable housing from the cruise control module. See Figure.

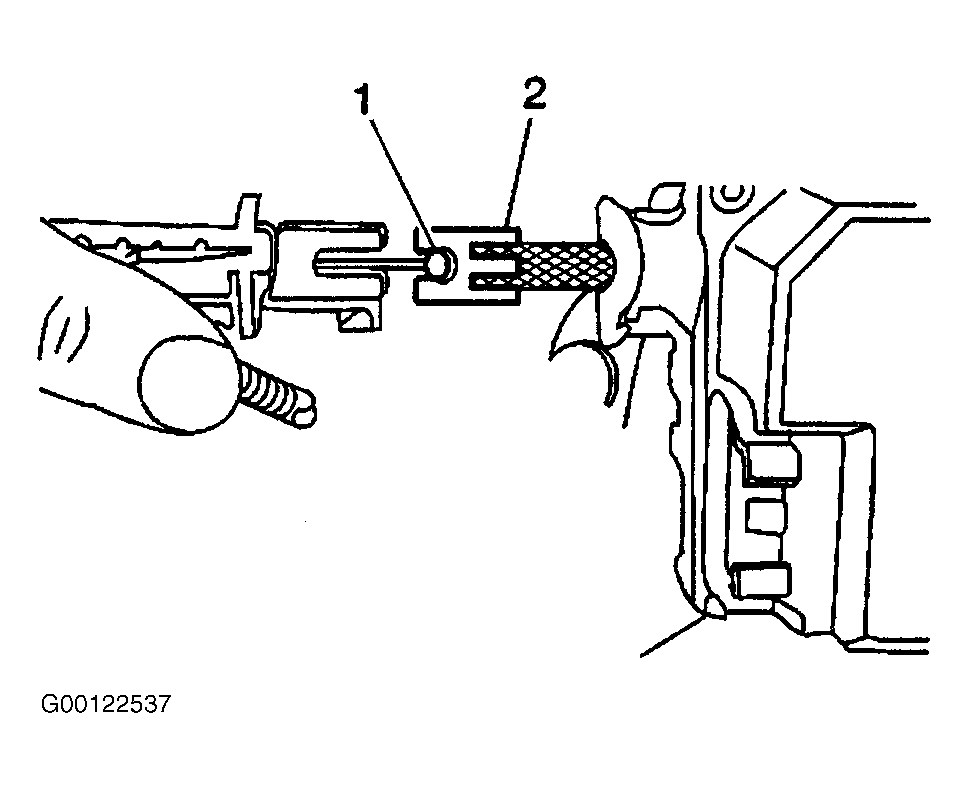

- Disconnect the cruise control cable ball stud (1) from the actuator strip (2) on the cruise control module. See Figure.
- Remove the cable from the cable retainer.
