Transaxle Mounts (Front): Installation

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front transaxle bracket and bolts. Tighten to specification. See TORQUE SPECIFICATIONS .
  2. Install the insulator-to-mount bracket.

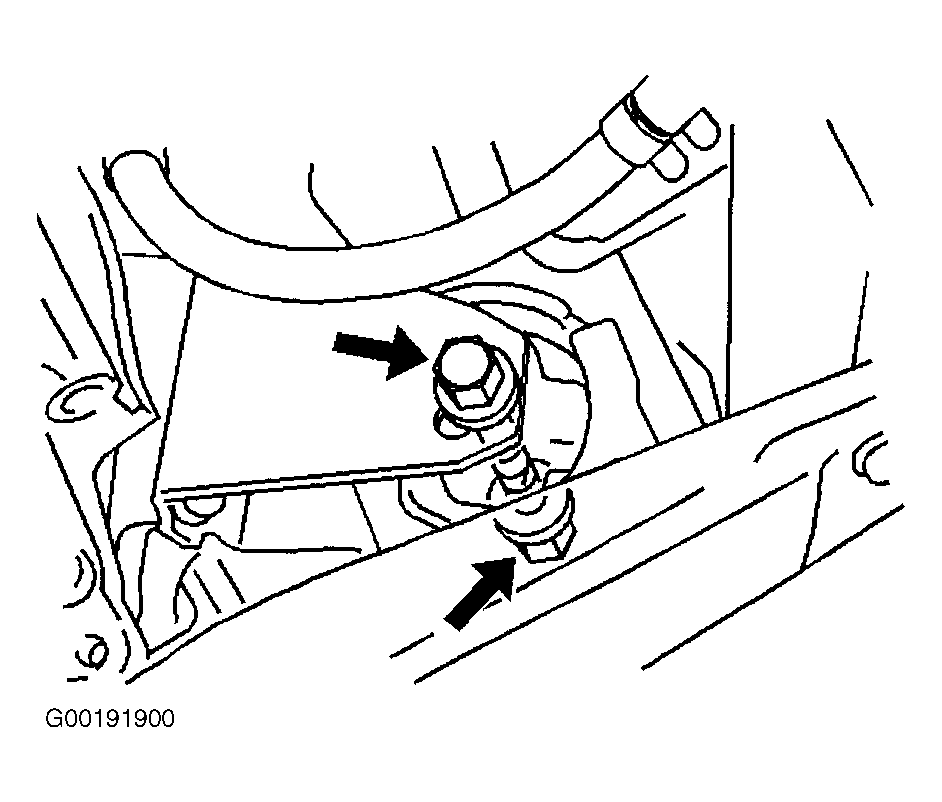

  3. Install the front transaxle mount through bolt. See Figure. Tighten to specification. See TORQUE SPECIFICATIONS .
  4. Install the 2 bolts to the front transaxle mount. Tighten to specification. See TORQUE SPECIFICATIONS .
  5. Install the left hand and right hand splash shields.
  6. Lower the vehicle.
  7. Remove the engine support fixture.
