Removal & Installation
WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

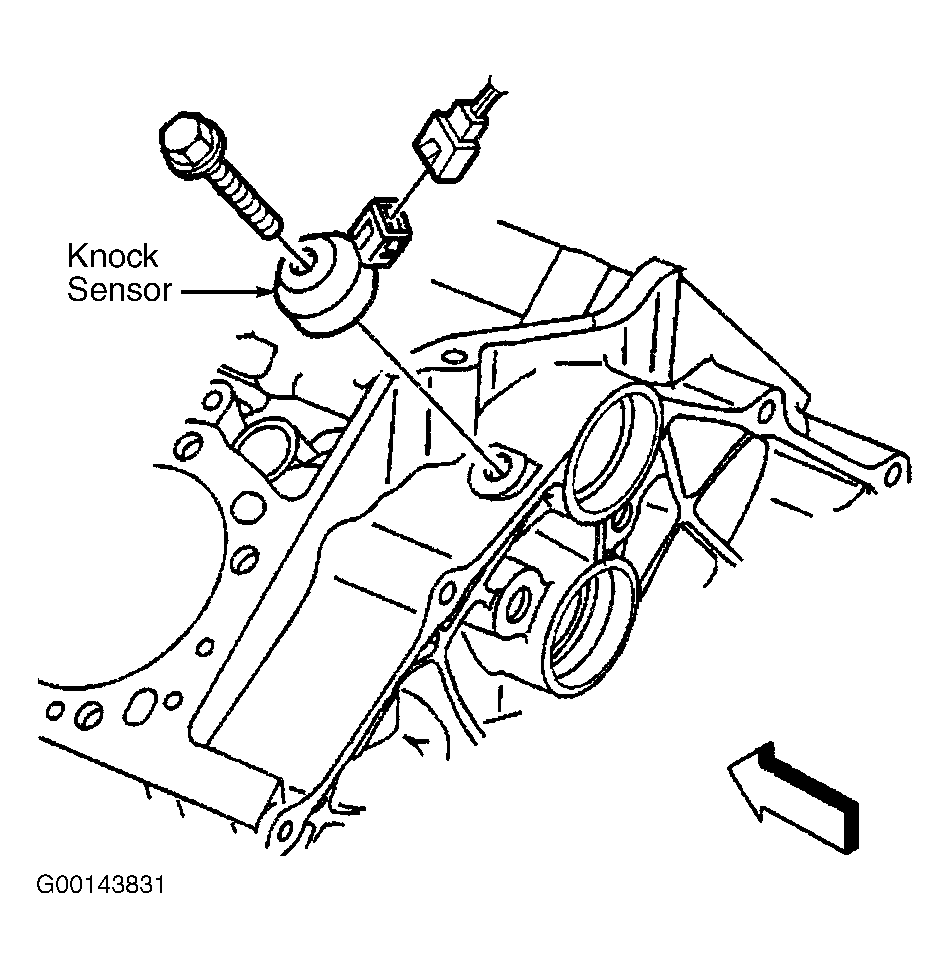

Turn ignition off. Disconnect negative battery cable. Remove engine cover. See ENGINE COVER under MISCELLANEOUS. Disconnect knock sensor harness connector. Knock sensor is located at top rear of engine. See Fig 1 . Remove knock sensor retaining bolt and knock sensor. To install, reverse removal procedure. Tighten knock sensor retaining bolt to specification. See TORQUE SPECIFICATIONS .
