Crankshaft Position Sensor: Removal

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition off. Raise and support vehicle. Remove steering linkage shield mounting bolts and steering linkage shield (if equipped). See Fig 1 .
  2. Disconnect Crankshaft Position (CKP) sensor harness connector. CKP sensor harness connector is located on front of engine, behind crankshaft pulley. See Fig 2 . Remove CKP sensor mounting bolt and CKP sensor.

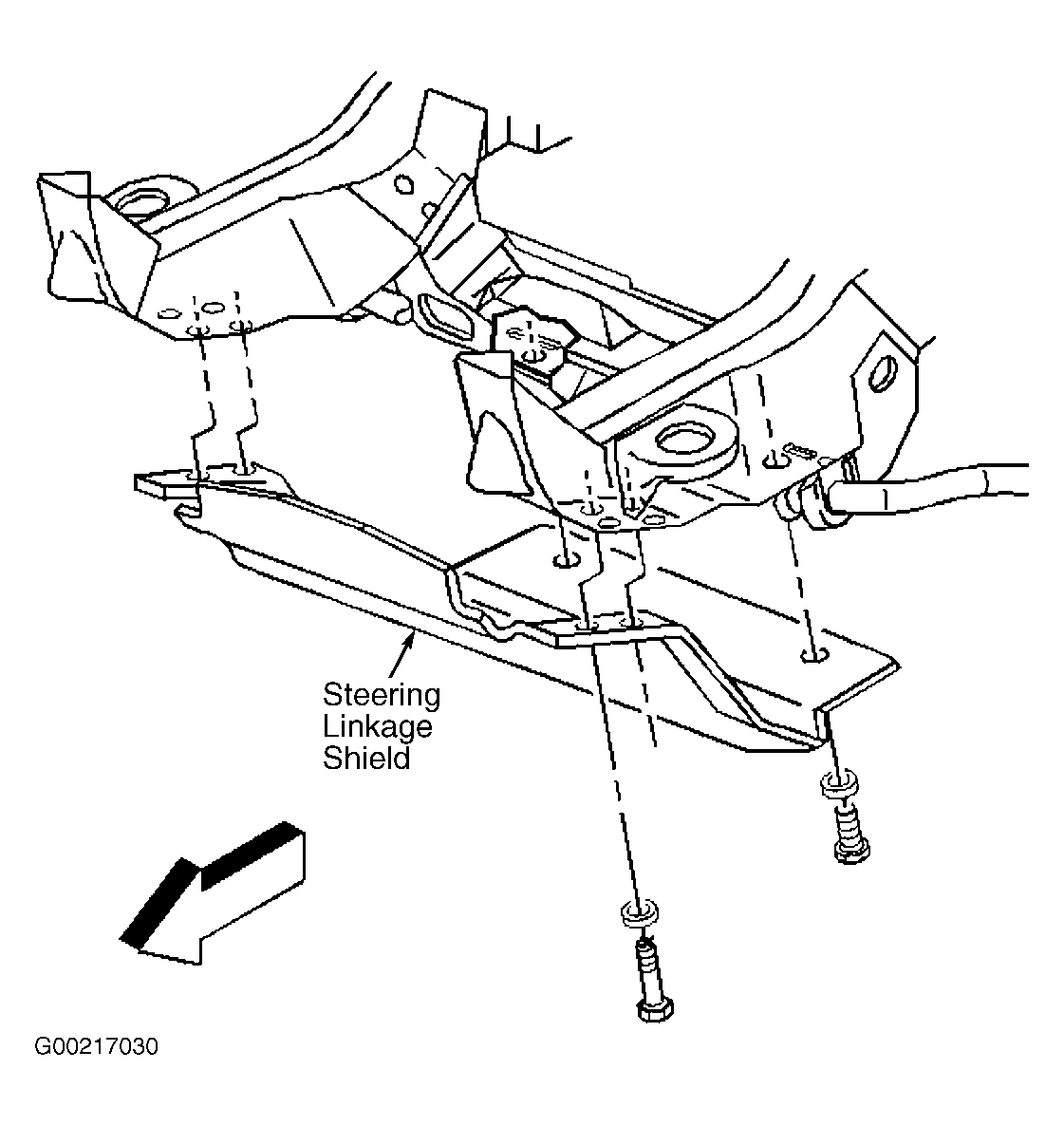

Fig 1: Removing/Installing Steering Linkage Shield
G00217030Courtesy of GENERAL MOTORS CORP.
Fig 2: Locating Crankshaft Position Sensor
G00028213Courtesy of GENERAL MOTORS CORP.
