Removal & Installation
WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

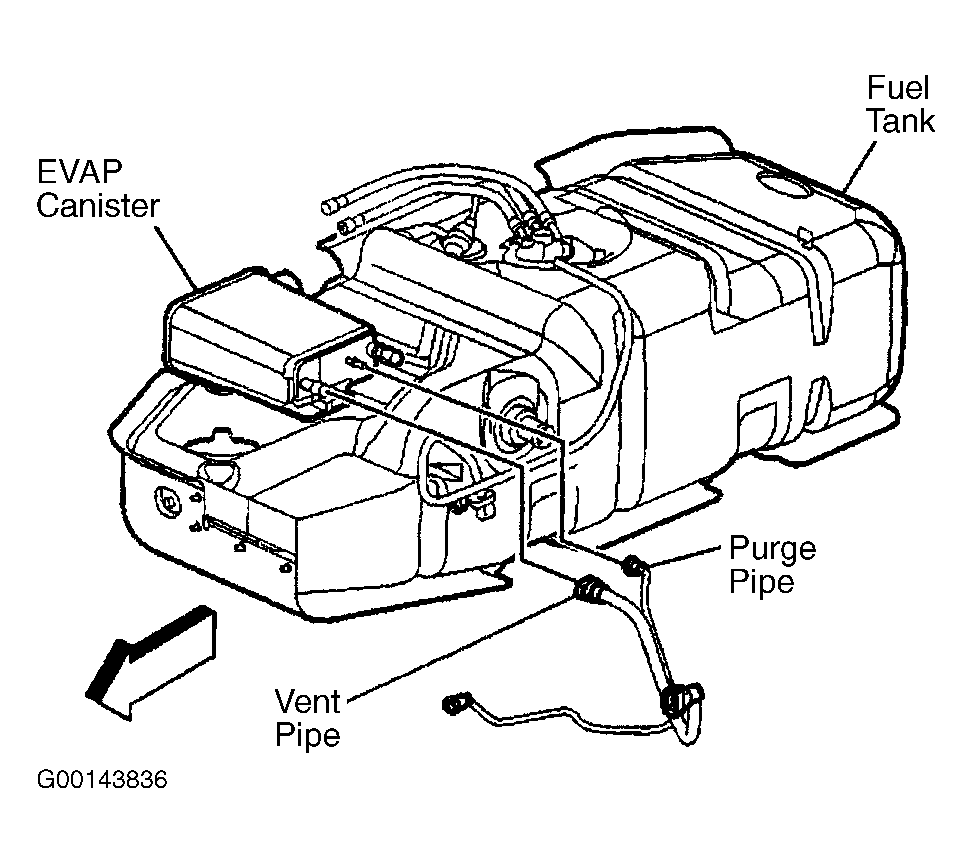

Remove fuel tank. See FUEL TANK under FUEL SYSTEMS. Disconnect EVAP purge pipe, vapor pipe and vent pipe from the EVAP canister. See Fig 1 . Remove the EVAP canister To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS . Check for fuel leaks.
