Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Apply sealant GM P/N 12345739 (Canadian P/N 10953472) or equivalent at the cylinder head to lower intake manifold joint.
  1. Apply sealant at the cylinder head to lower intake manifold joint at the rear of the lower intake manifold (1).
    Fig 1: Rear Of The Lower Intake Manifold
    G01763585Courtesy of GENERAL MOTORS CORP.
  2. Apply sealant at the cylinder head to lower intake manifold joint at the front of the lower intake manifold (1).

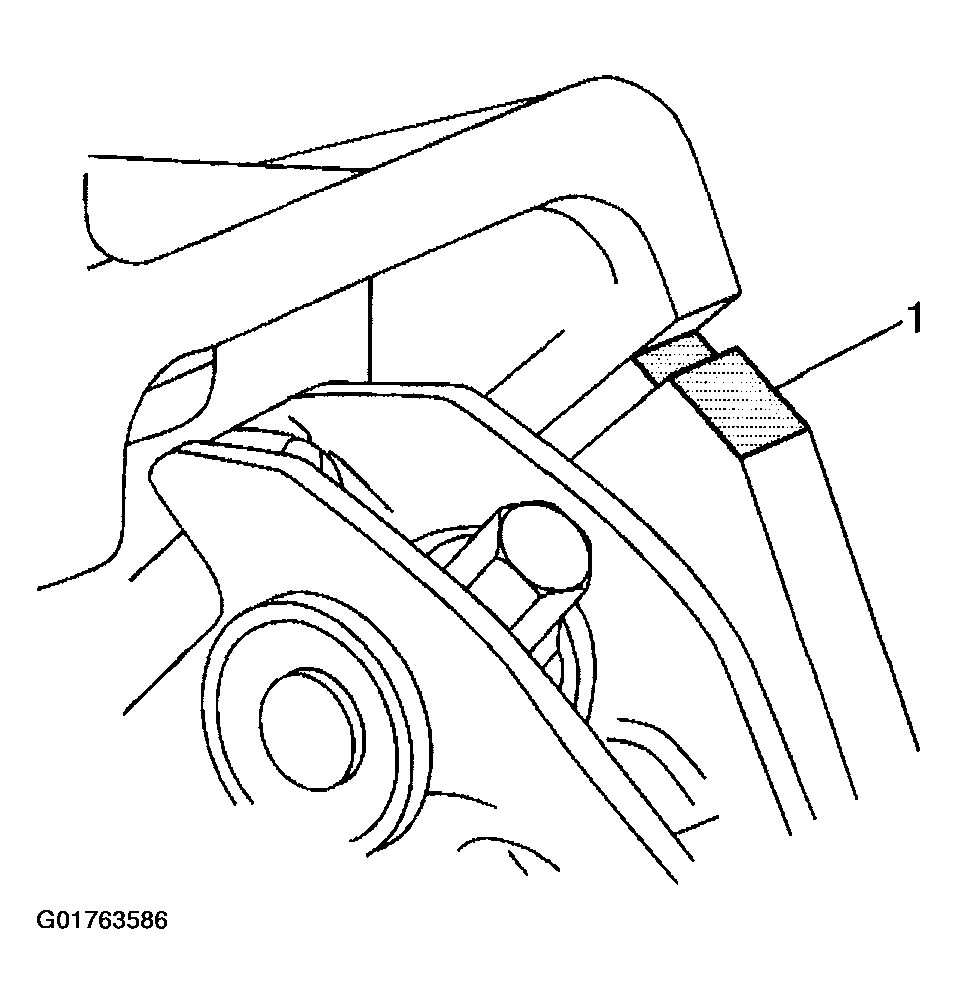

    Fig 2: Front Of The Lower Intake Manifold
    G01763586Courtesy of GENERAL MOTORS CORP.
  3. Install a new right valve rocker arm cover gasket.
  4. Install the right valve rocker arm cover.
  5. Install the right valve rocker arm cover bolts.

    Tighten:

    Tighten the bolts to 10 N.m (89 in lbs)

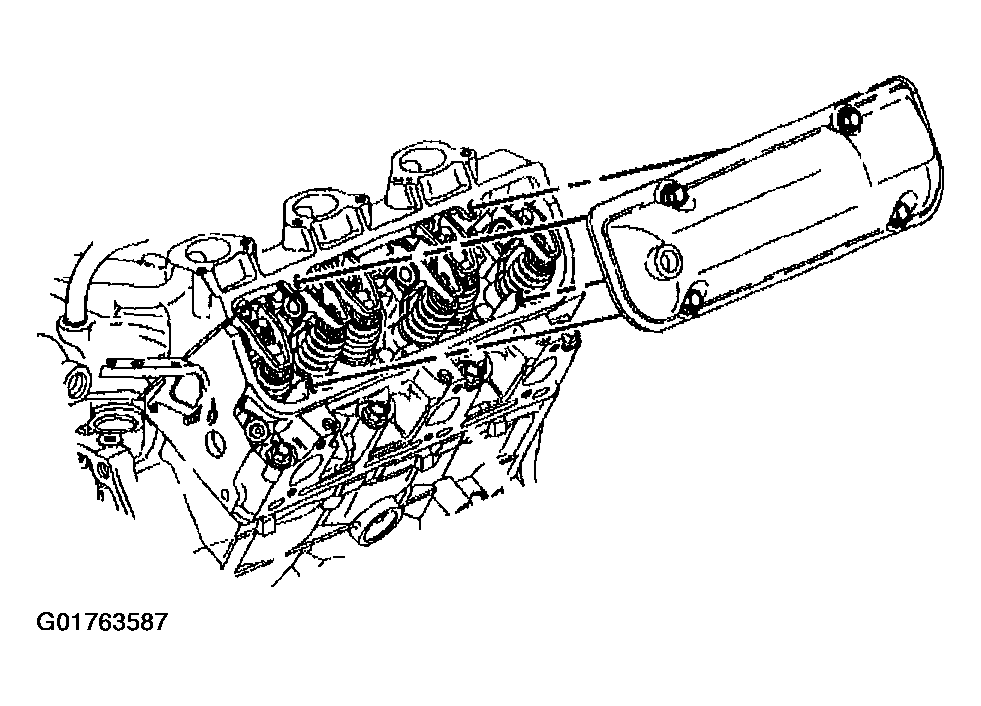

    Fig 3: Right Valve Rocker Arm Cover
    G01763587Courtesy of GENERAL MOTORS CORP.
  6. Install the vacuum hose to the grommet in the right valve rocker arm cover.
  7. Install the ignition coil bracket studs.
  8. Install the ignition coil bracket with the coils. Refer to IGNITION COILS .
  9. Install the EVAP purge valve. Refer to EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE REPLACEMENT in ENGINE CONTROLS - REMOVAL & INSTALLATION, OVERHAUL
  10. Install the right spark plug wires. Refer to SPARK PLUG WIRE REPLACEMENT in ENGINE CONTROLS - REMOVAL & INSTALLATION, OVERHAUL .
  11. Install the generator bracket.
  12. Install the generator. Refer to GENERATOR .
  13. Install the drive belt. Refer to Drive Belt Replacement .
  14. Connect the negative battery cable.
  15. Inspect for leaks.
