Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the lifters with prelube GM P/N 1052367 (Canadian P/N 992869) or equivalent.
  2. Install the lifters to the same location from which they were removed.
  3. Install the lifter guides.
  4. Install the lifter guide bolts.

    Tighten:

    Tighten the bolts to 10 N.m (89 in lbs)

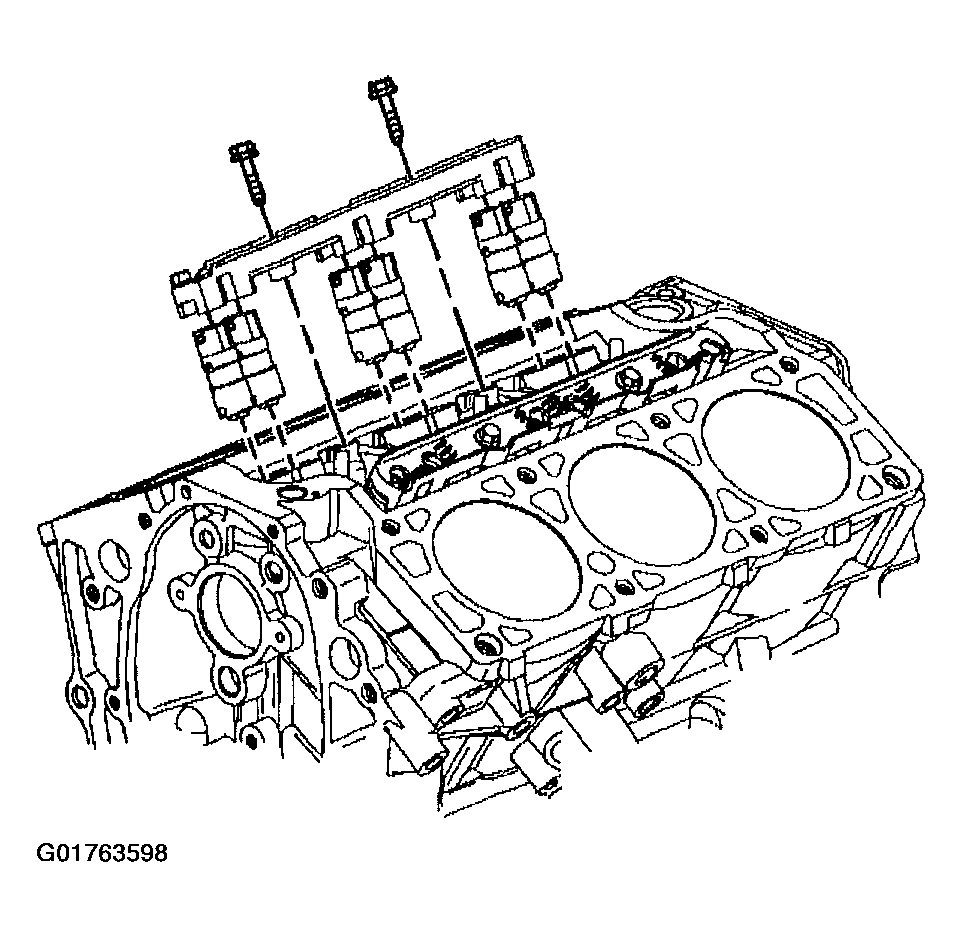

    Fig 1: Valve Lifter Components
    G01763598Courtesy of GENERAL MOTORS CORP.
  5. Install the intake manifold oil splash shield

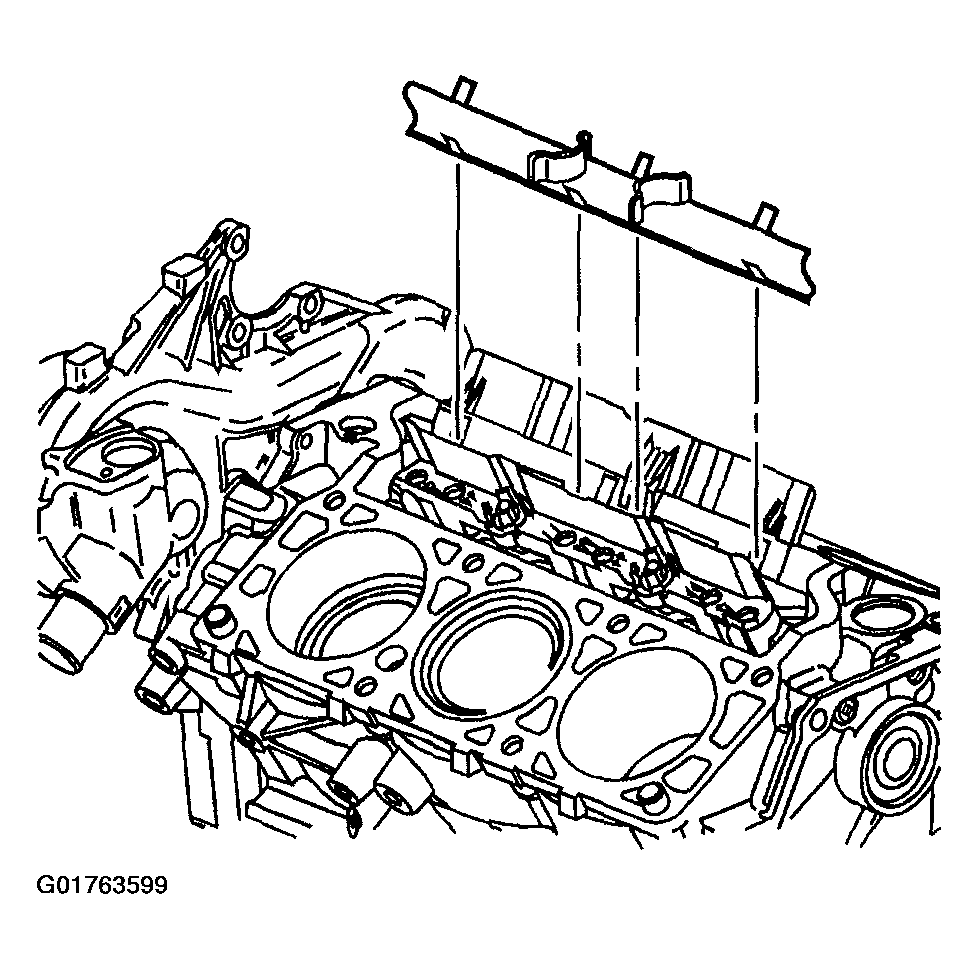

    Fig 2: Intake Manifold Oil Splash Shield
    G01763599Courtesy of GENERAL MOTORS CORP.
  6. Install the valve rocker arms and pushrods. Refer to Valve Rocker Arm and Push Rod Replacement .
  7. Install the lower intake manifold. Refer to Intake Manifold Replacement - Upper .
