Side Mount: Installation
WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Hand start all bolts before tightening.

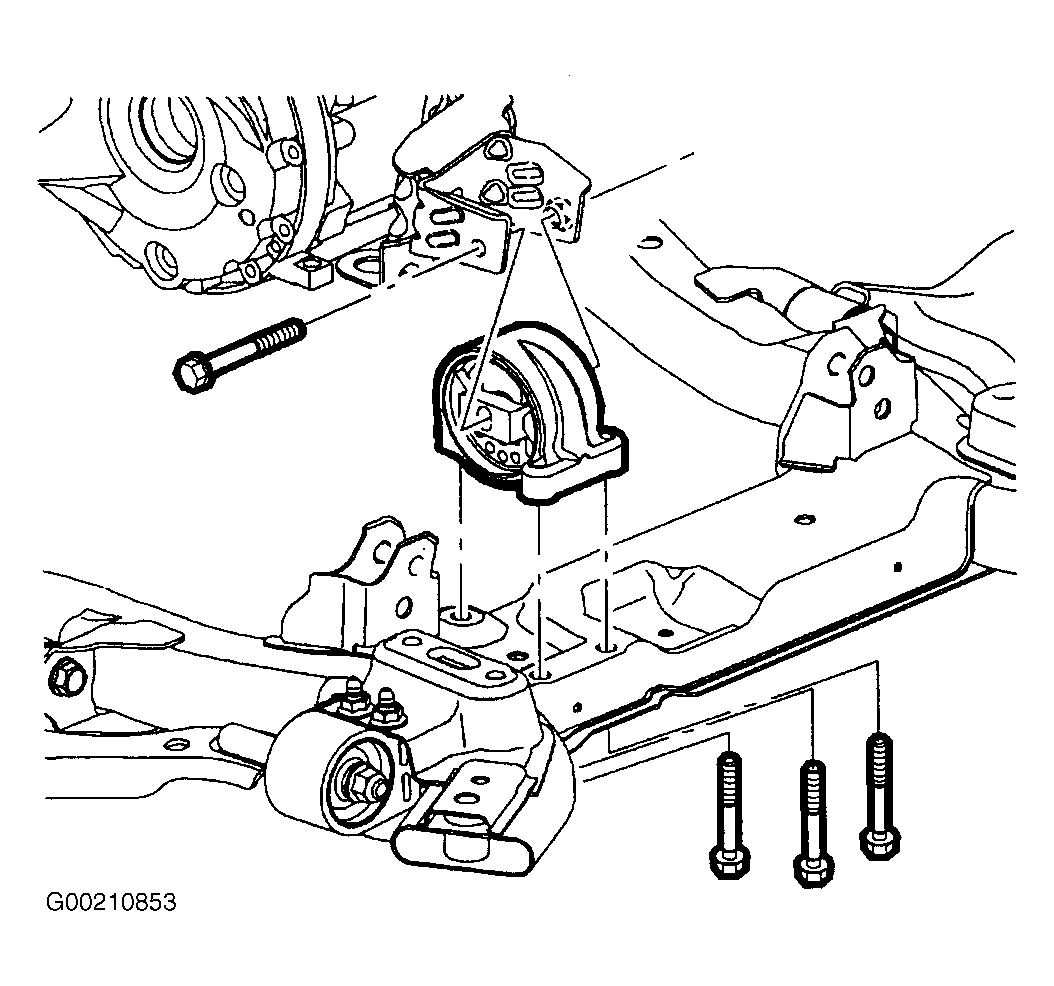

- Install the transaxle mount in the side rail. See Figure . Tighten transaxle mount-to-side rail bolts to specification. See TORQUE SPECIFICATIONS .
- Use the floor jack to raise the powertrain into position.

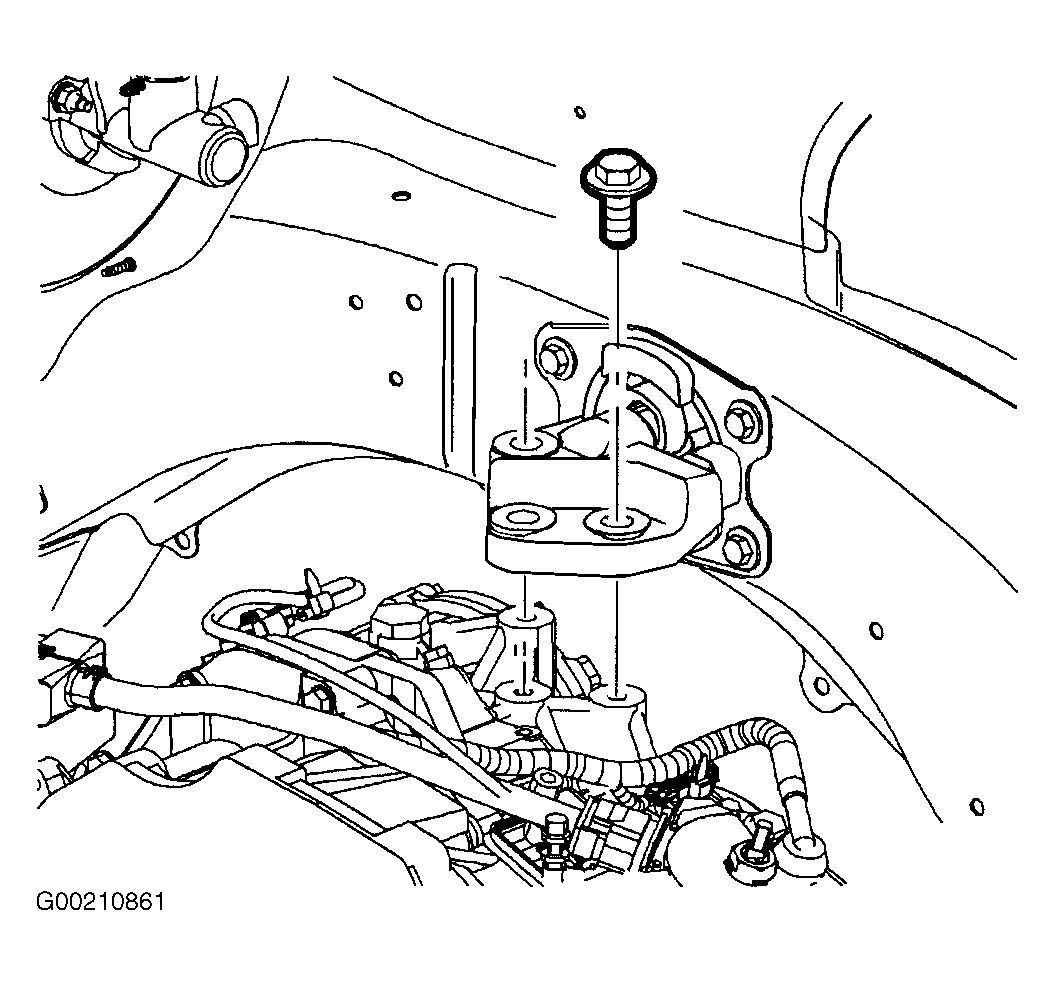

- Align both side mounts with the surfaces flush with the mount brackets. See Figure .

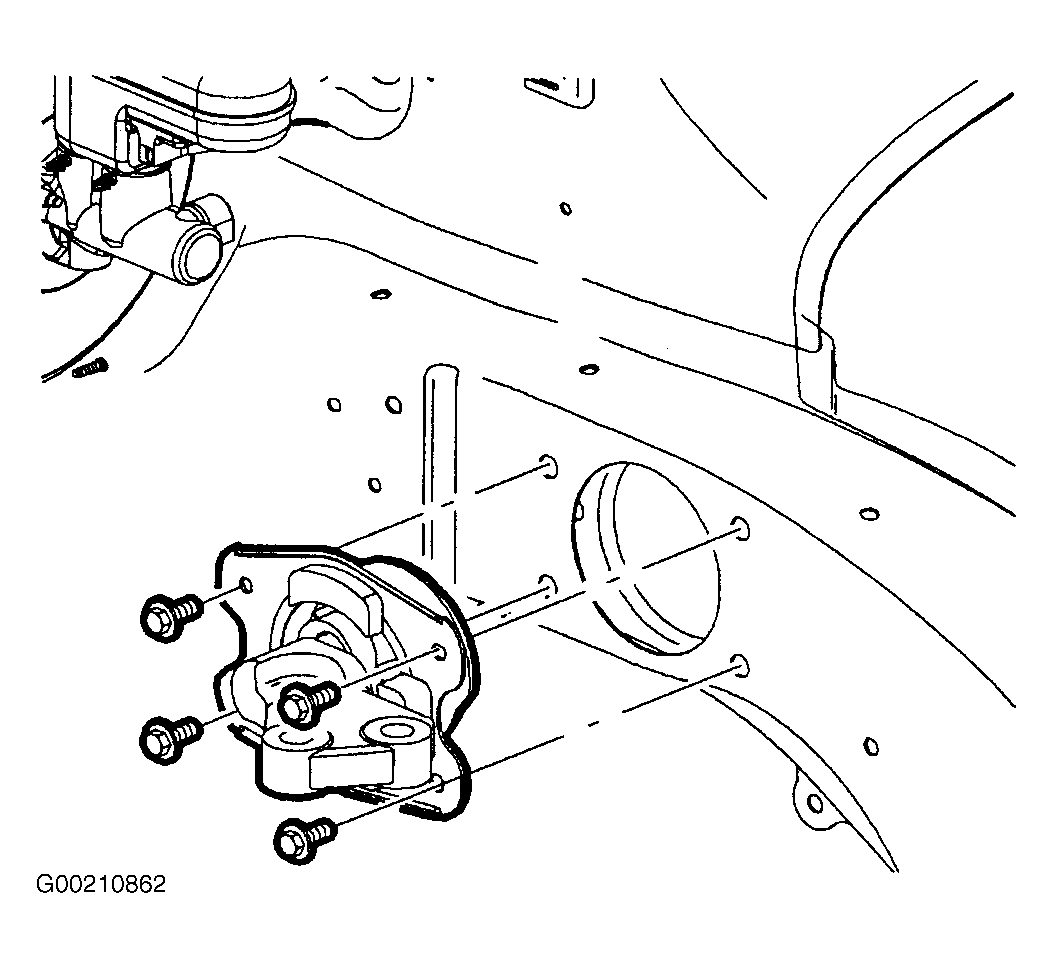

- Align all the bolt holes in both side mounts and hand tighten both upper mount bolts. Three per side.

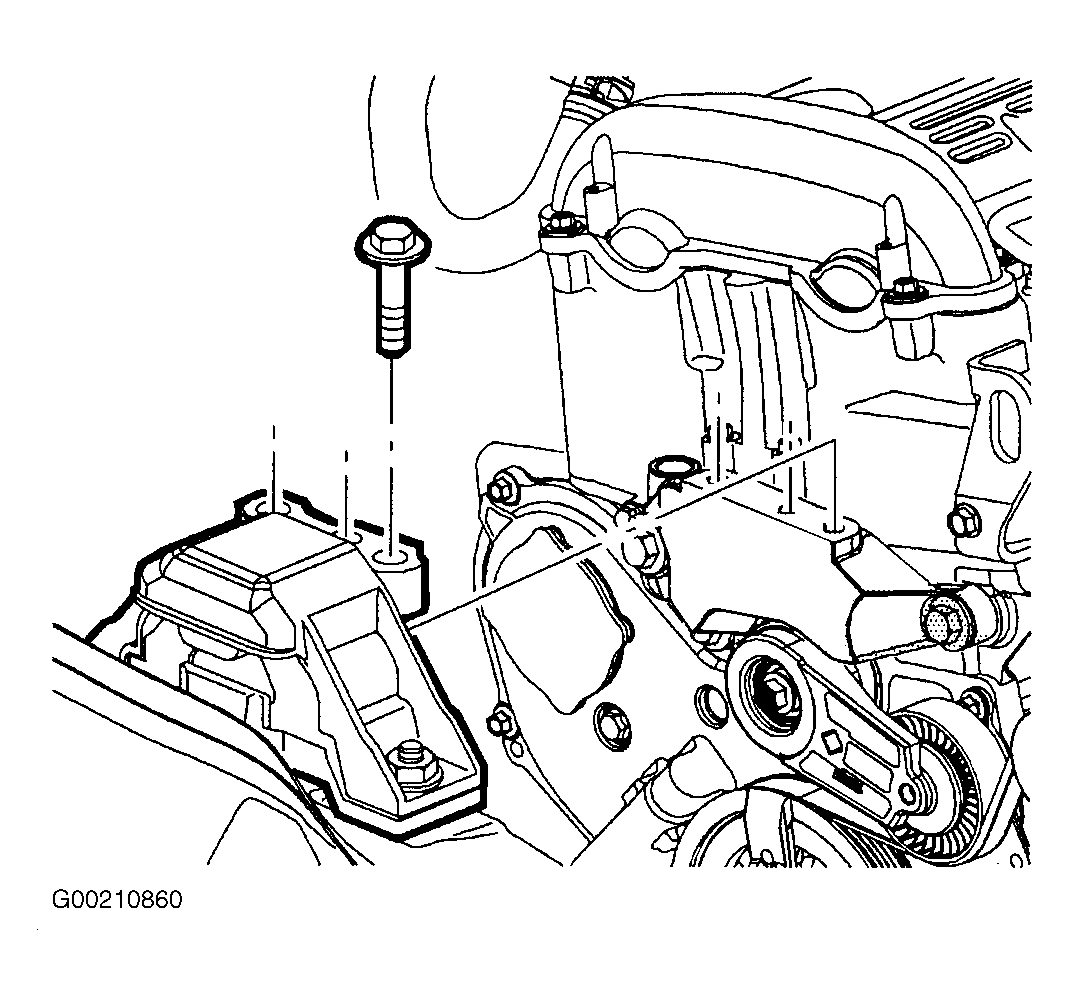

- Tighten the mount bolts starting with the center ones. See Figure . Tighten both upper mount bolts to specification. See TORQUE SPECIFICATIONS .
- Raise the vehicle.

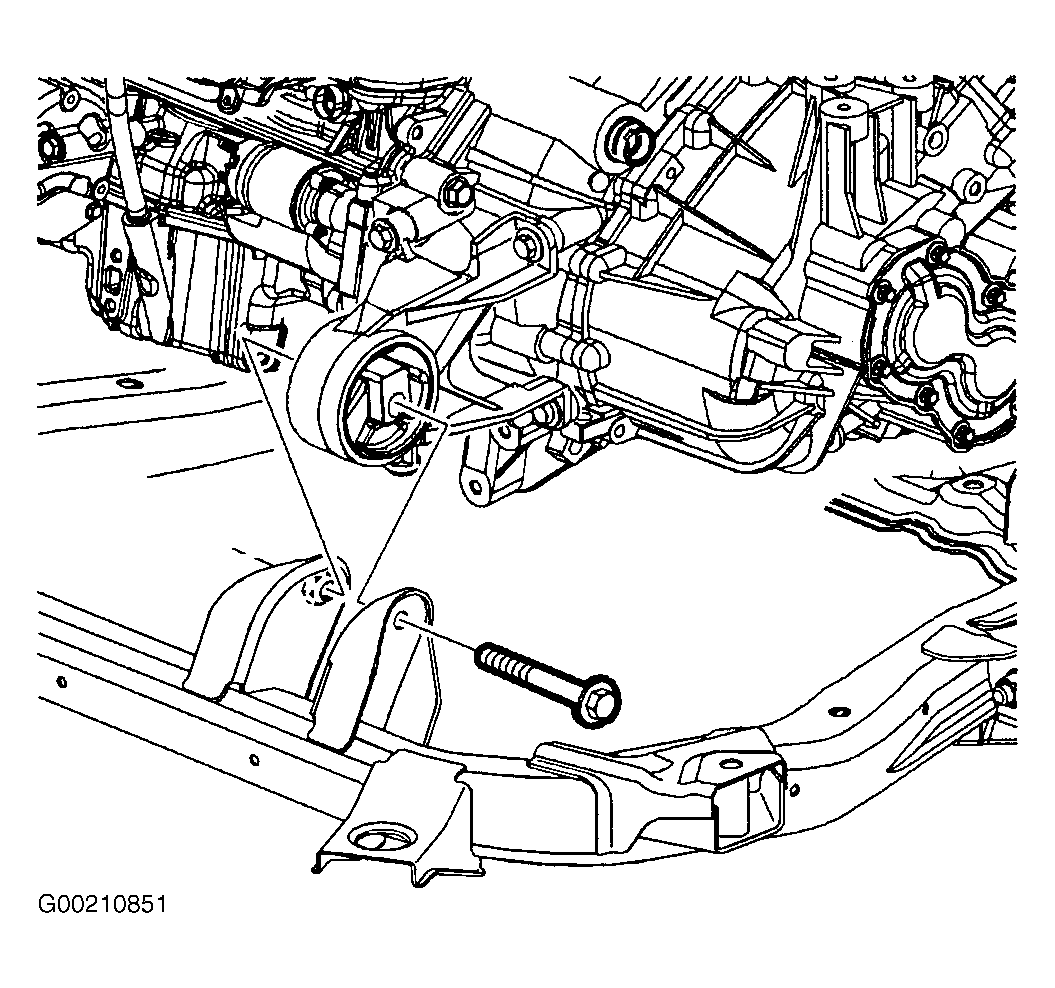

- Install the rear mount through bolt. See Figure . Hand tighten only.
- Install the front mount through bolt. See Figure . Hand tighten only.
- Perform the powertrain mount balance procedure. See POWERTRAIN MOUNT BALANCE (TOTAL MOUNT) .
- Remove the floor jack and block of wood.
- Install the battery box. See appropriate SERVICING article as follows:
- For 2002 models, see BATTERY COOLING BOX under REMOVAL & INSTALLATION in SERVICING - VUE (AF33-5) article.
