Manifold Absolute Pressure Sensor: Removal

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. The MAP sensor is located at back of intake manifold. See Fig 1. Remove the fuel rail cover. See Fig 2. Remove the fuel rail assembly. See FUEL RAIL & INJECTORS  under FUEL SYSTEMS.
  2. Remove the PCV heat exchange cable nut. See Fig 3. Remove the PCV hose from the throttle body. Remove the PCV hose from the right cylinder bank port. Release the PCV hose assembly from the mounting brackets.
  3. Move the PCV hose assembly aside. Disconnect the MAP sensor harness connector. Pull the MAP sensor forward in order to release the sensor from the retainer. See Fig 4. Lift the MAP sensor upward.
Fig 1: Locating CMP, EOP & MAP Sensors
G98J02211Courtesy of GENERAL MOTORS CORP.
Fig 2: Removing/Installing Fuel Rail Cover
G00209101Courtesy of GENERAL MOTORS CORP.

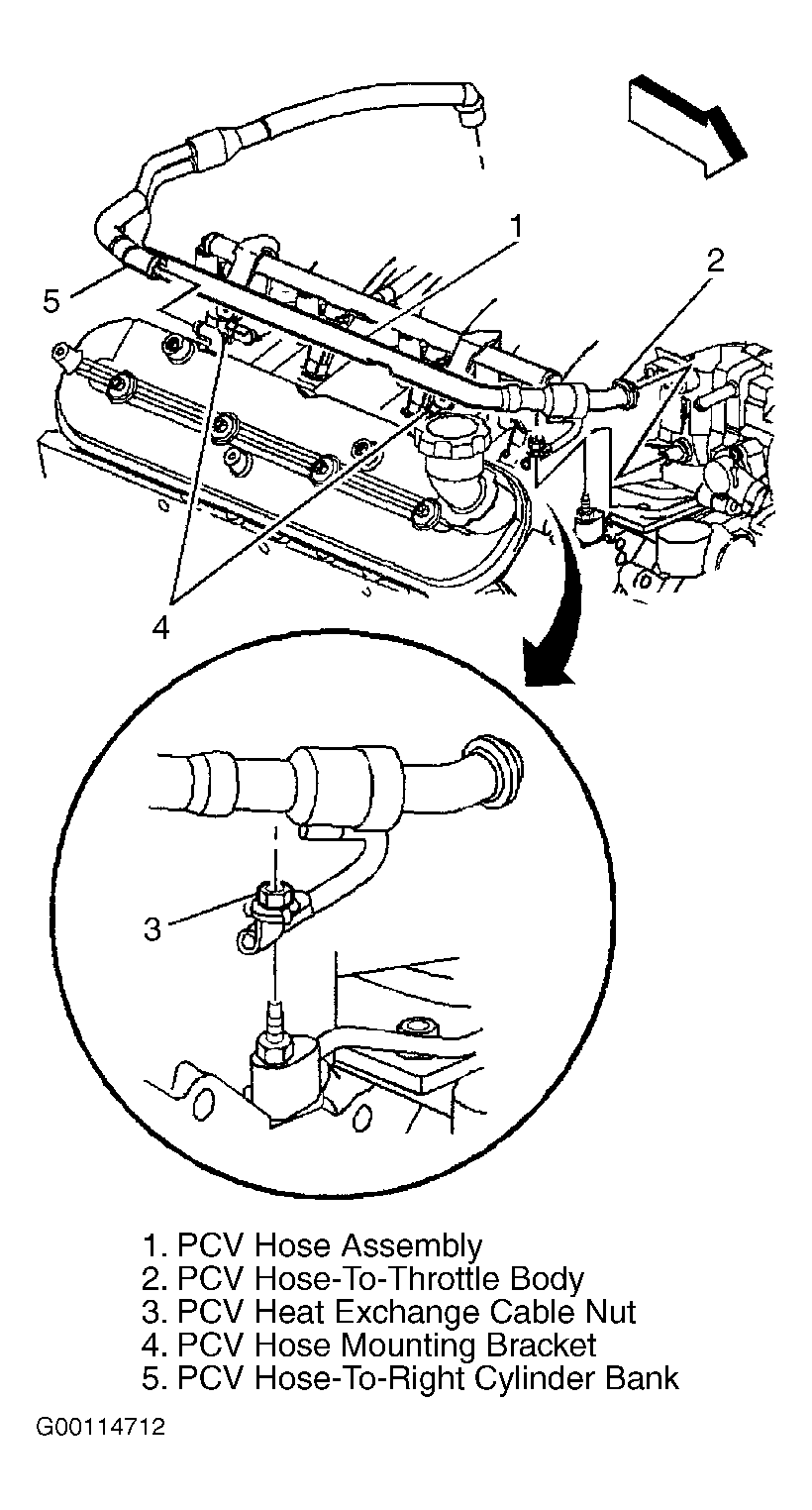

Fig 3: Removing PCV Hose Assembly
G00114712Courtesy of GENERAL MOTORS CORP.

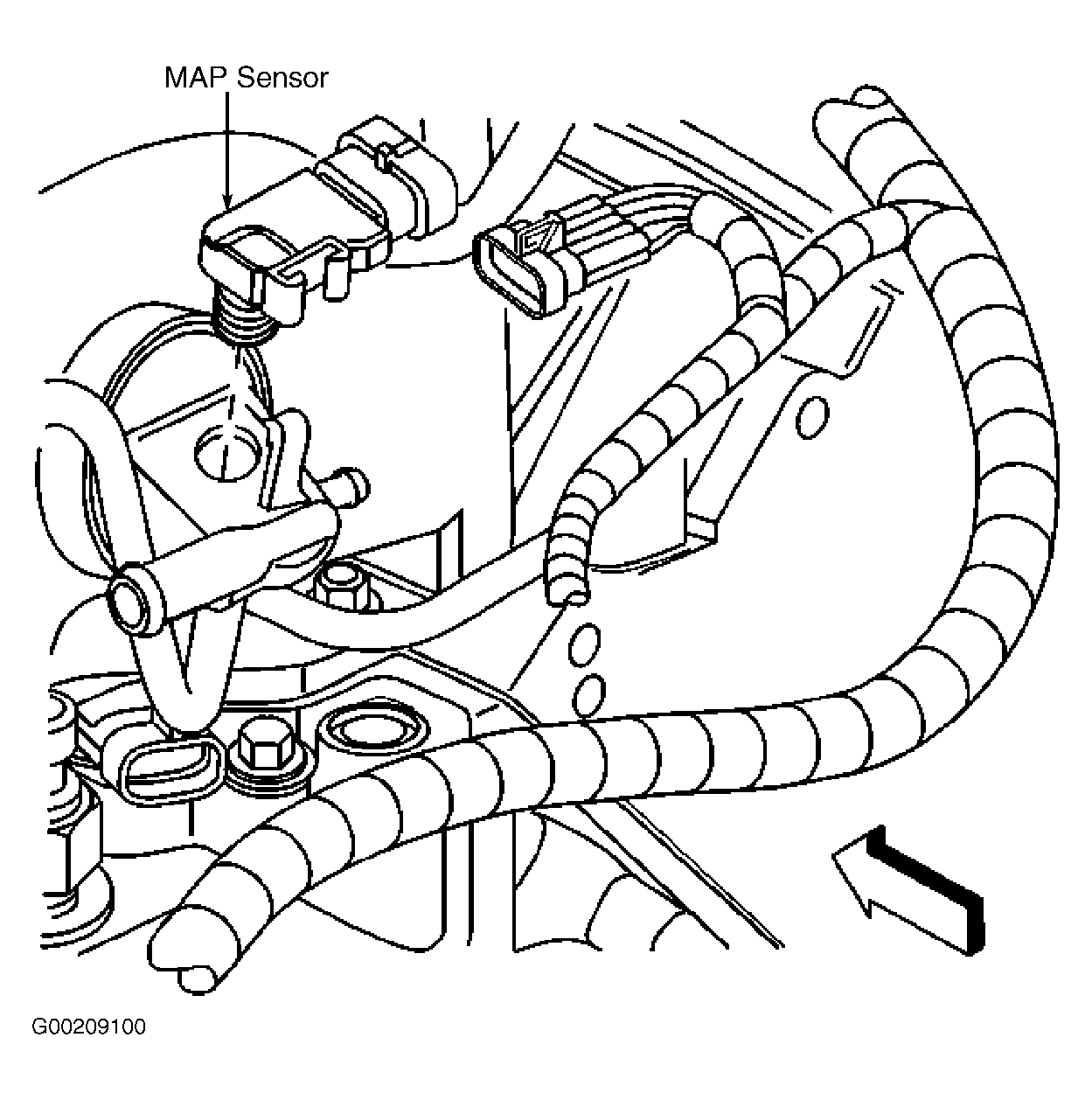

Fig 4: Removing/Installing MAP Sensor
G00209100Courtesy of GENERAL MOTORS CORP.
