Removal & Installation
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

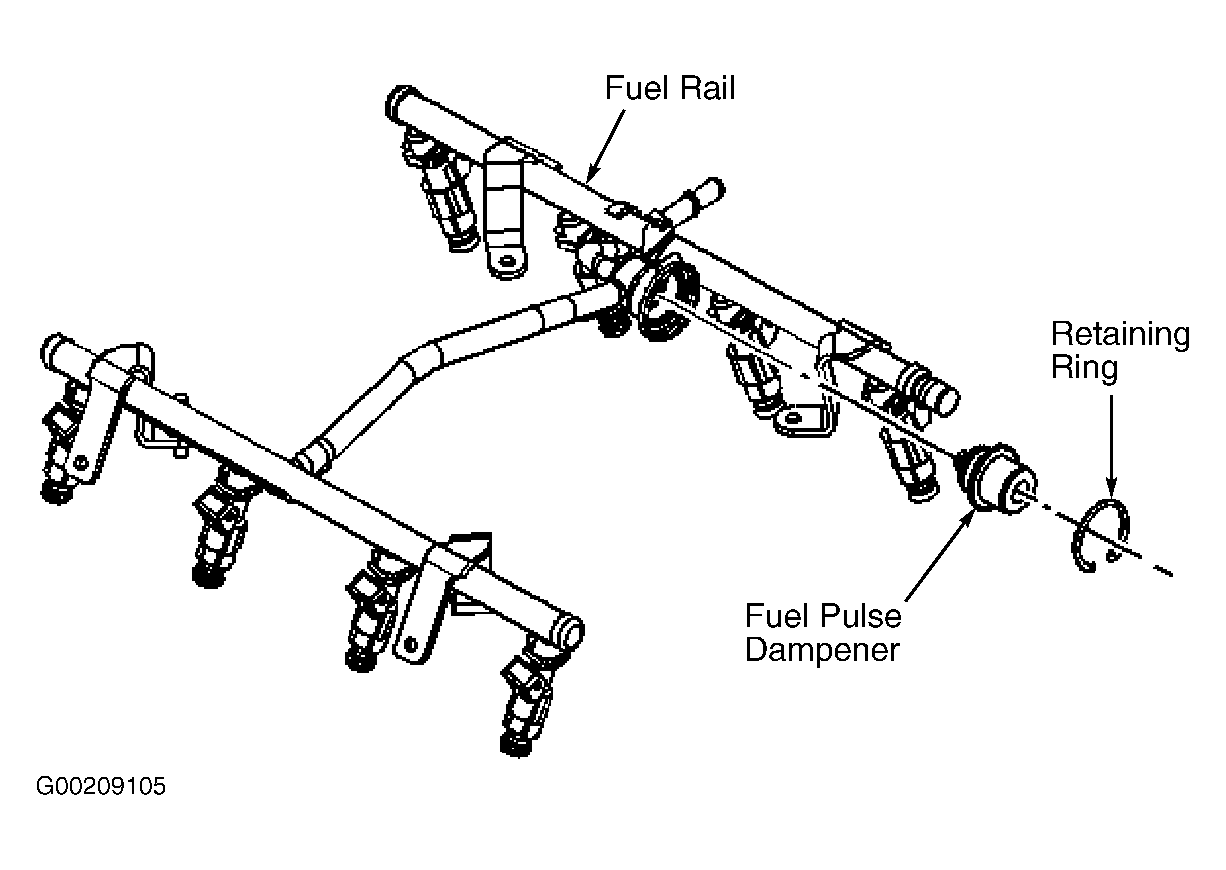

Remove the left fuel rail cover. See Figure. Release fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE . Fuel pulse dampener is located on fuel rail. See Figure. Clean any dirt from the fuel pulse dampener retaining ring. Remove the fuel pulse dampener retaining ring. Remove the fuel pulse dampener from the fuel rail.
