Secondary Air Injection Pump: Installation

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the AIR pump. Install the mounting bolts and tighten to specification. See TORQUE SPECIFICATIONS . Connect the electric connector to AIR pump. Connect the hoses to the AIR pump. Install the left side close-out panel. Lower the vehicle. Verify the AIR system for proper operation.

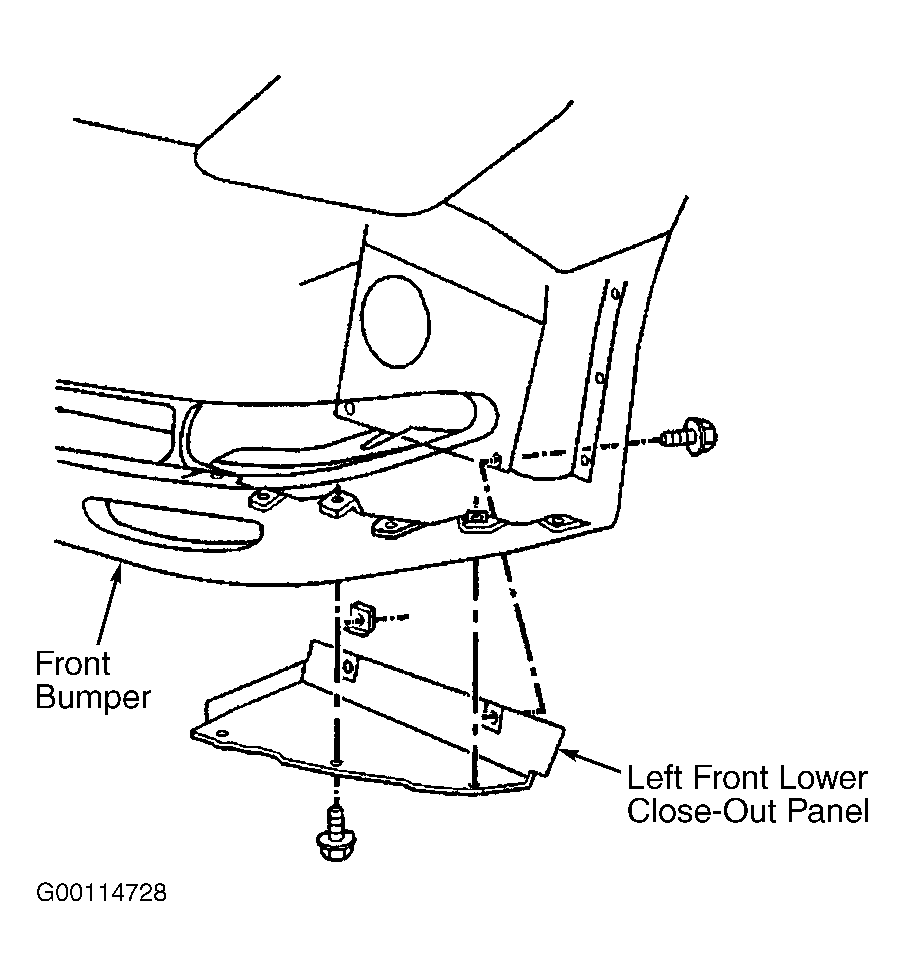

Fig 1: Removing Left Front Lower Close-Out Panel
G00114728Courtesy of GENERAL MOTORS CORP.

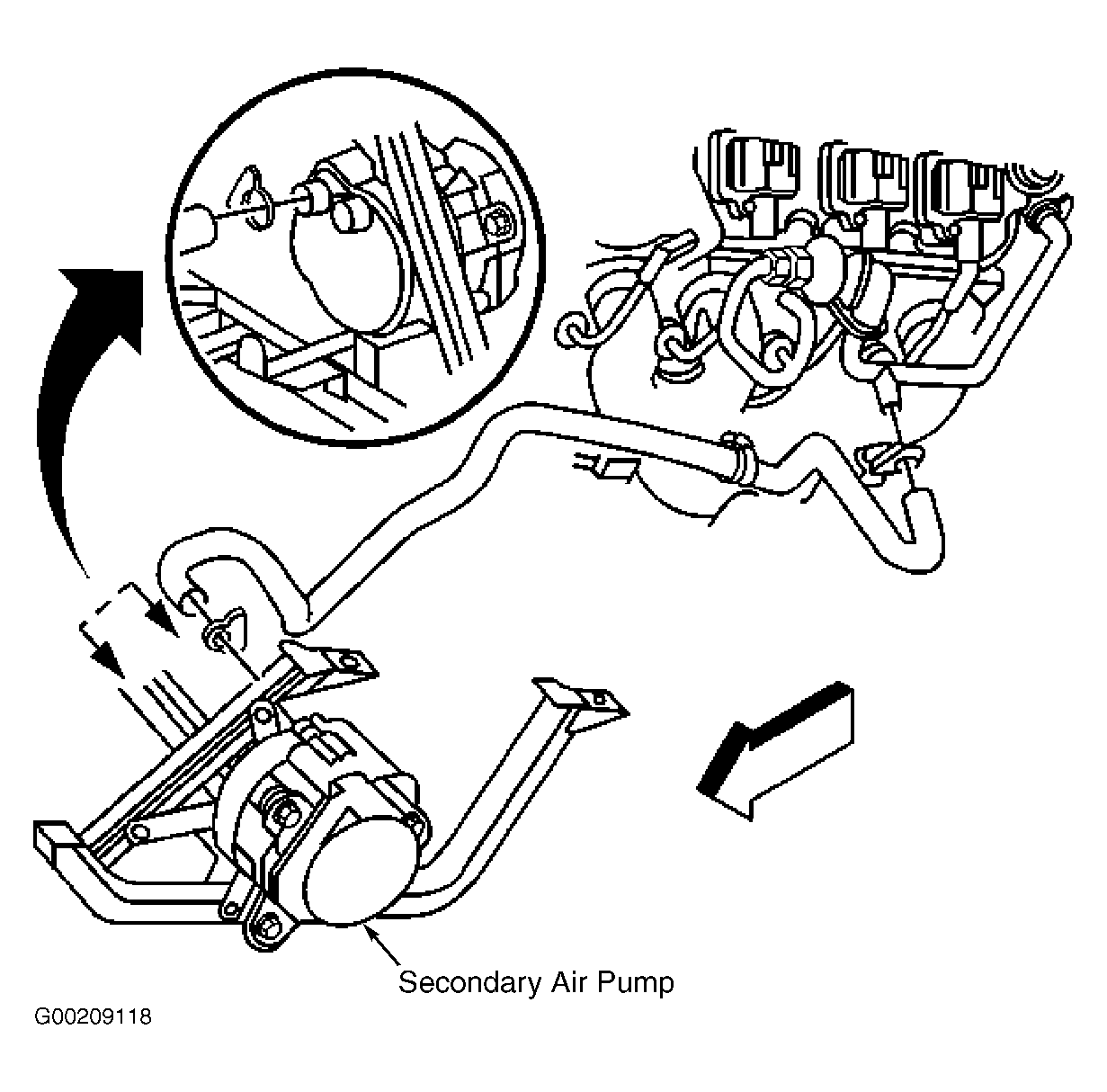

Fig 2: Removing Secondary AIR Pump
G00209118Courtesy of GENERAL MOTORS CORP.
