Description & Operation
WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

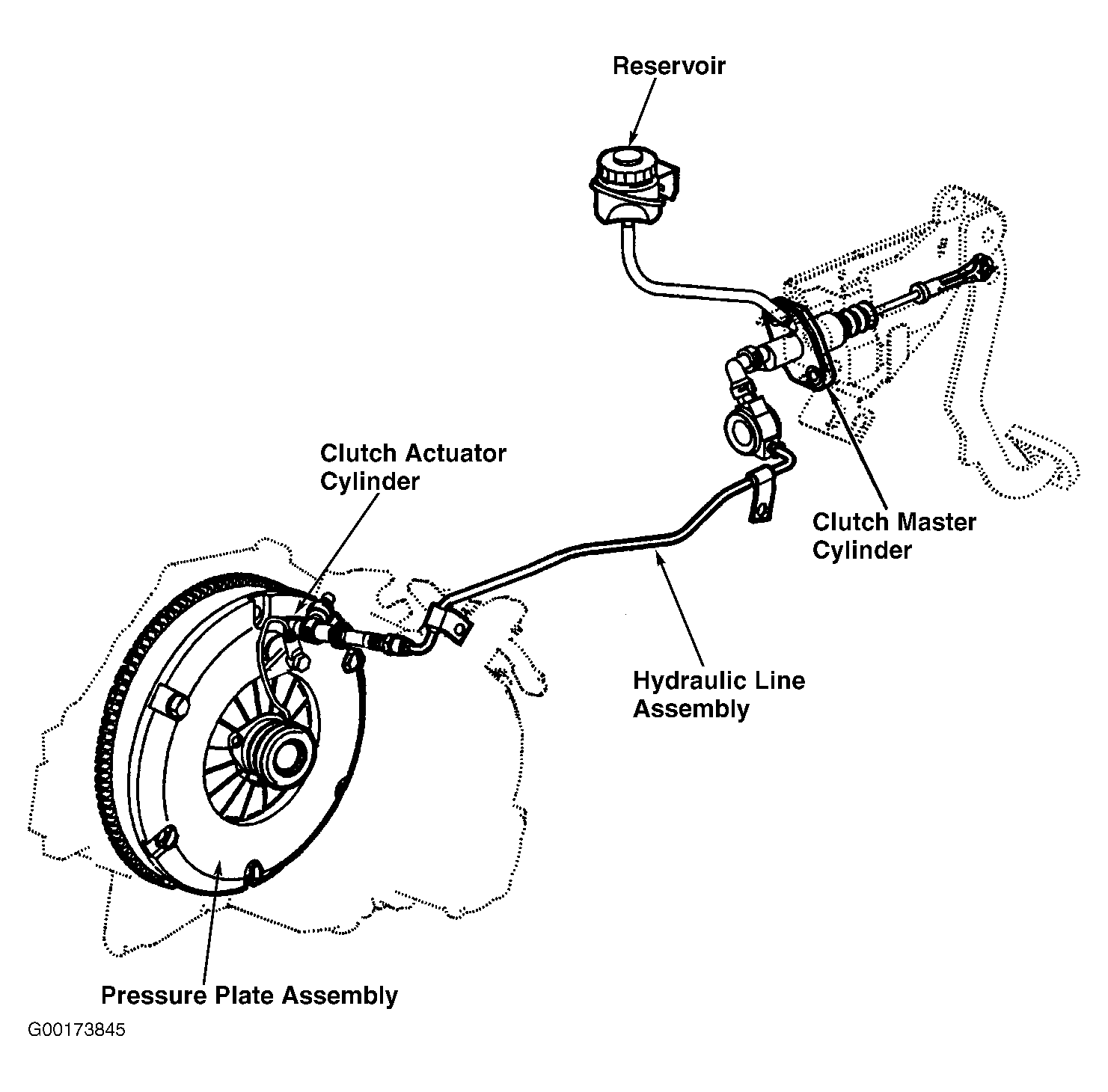

Clutch assembly consists of a single-plate clutch disc and a diaphragm spring-type pressure plate. Hydraulic clutch release system consists of clutch pedal, clutch master cylinder, clutch actuator cylinder and permanently lubricated clutch release bearing. See Fig 1 .
