Transmission Support: Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

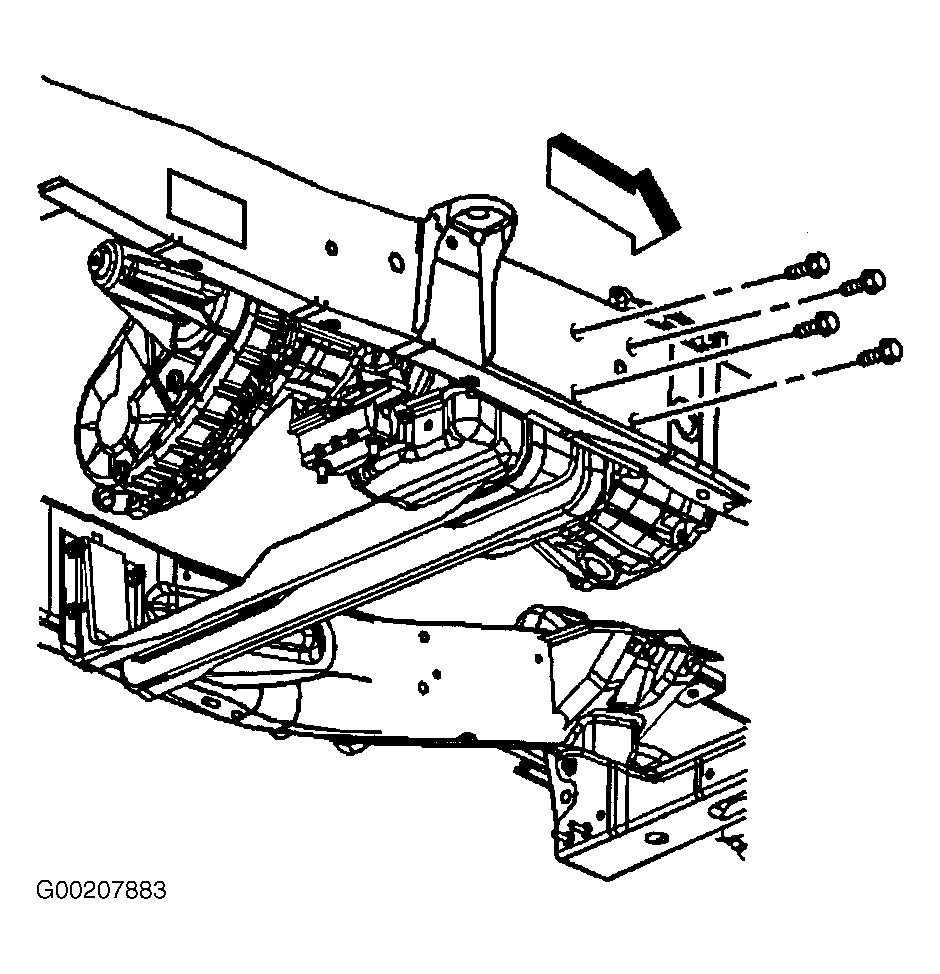

  1. Install the transmission support to the vehicle. See Figure .
  2. Install the transmission support-to-frame mounting bolts. Tighten the bolts to specification. See TORQUE SPECIFICATIONS  .

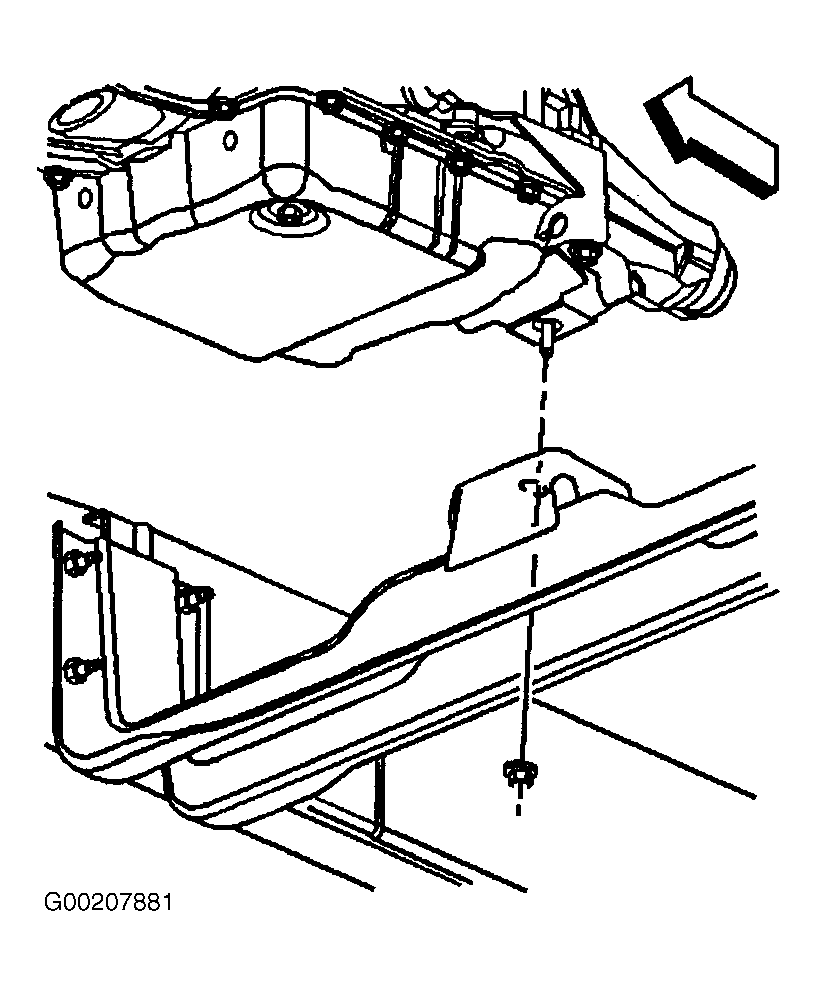

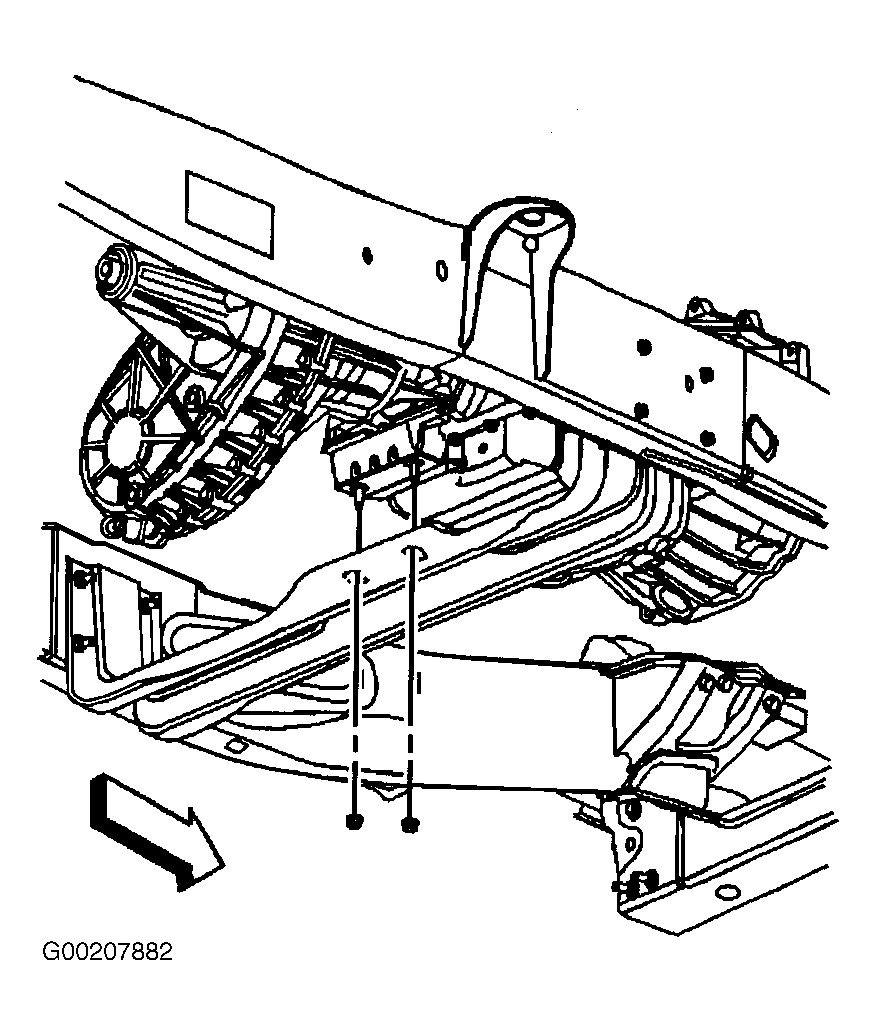

  3. Install the transmission mount-to-transmission support retaining nuts. See Figure or Figure . Tighten the nuts to specification. See TORQUE SPECIFICATIONS  .
  4. Install the fuel filter bracket-to-transmission support retaining bolts. See Figure . Tighten the bolts to specification. See TORQUE SPECIFICATIONS  .

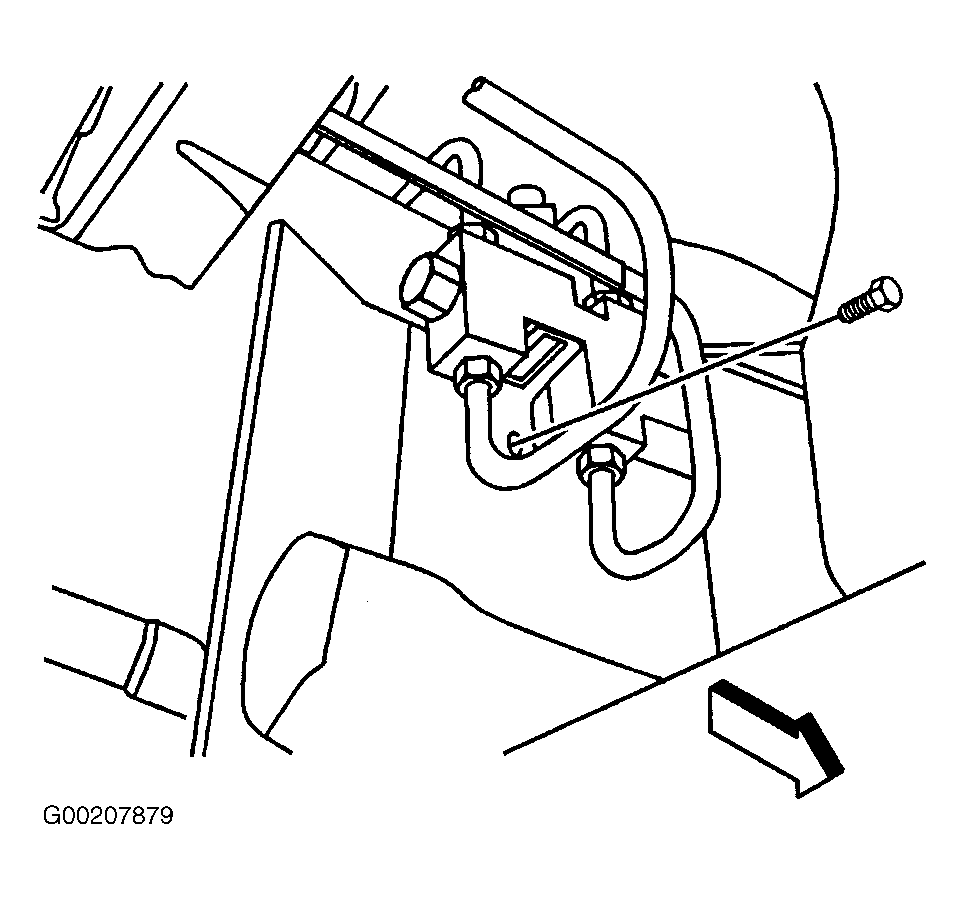

  5. Install the brake combination valve-to-transmission support mounting bolt. See Figure . Tighten the bolt to specification. See TORQUE SPECIFICATIONS  .
  6. Remove the safety stands.
  7. Lower the vehicle.
