Transmission Support: Removal

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the fuel tank shield.
  3. Remove the Evaporative Emission (EVAP) canister from its mounting bracket. DO NOT disconnect the canister lines.
  4. Support the transmission with a transmission jack.
  5. Remove the transmission mount-to-transmission support retaining nuts. See Fig 1 .
  6. Remove the lower transmission support-to-frame mounting bolts. See Fig 2 .
  7. Remove the upper transmission support-to-frame mounting bolts. See Fig 3 .
  8. Remove the transmission support from the frame.

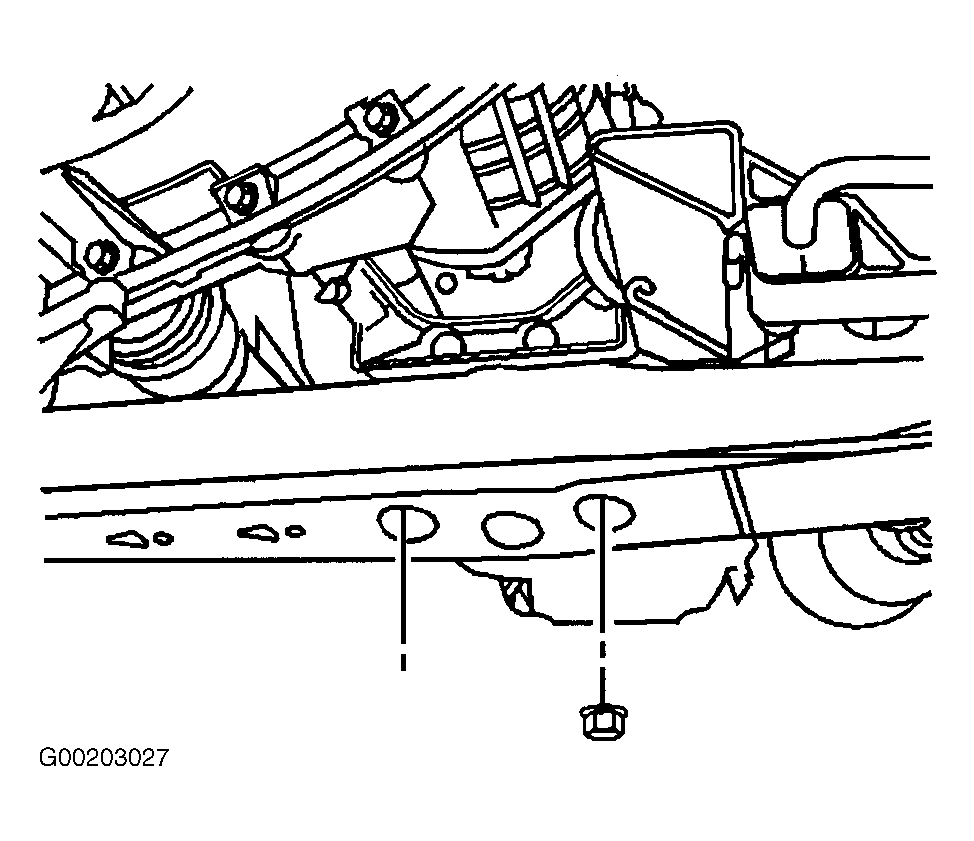

Fig 1: Removing Mount-To-Support Retaining Nuts
G00203027Courtesy of GENERAL MOTORS CORP.

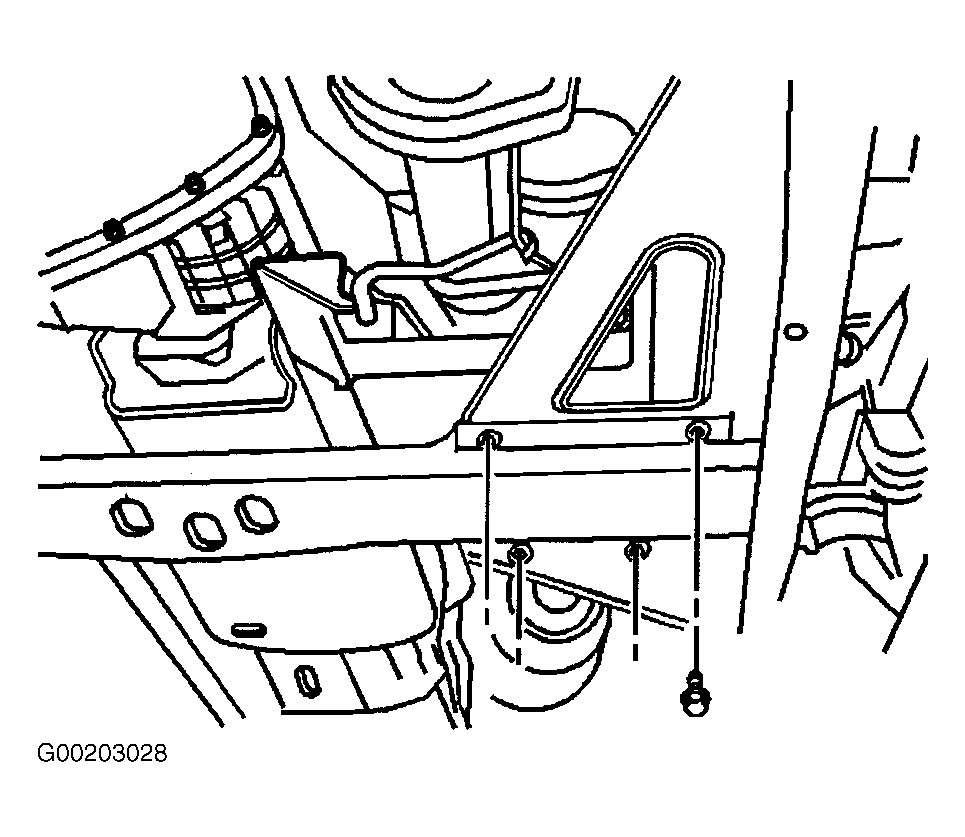

Fig 2: Removing Lower Support-To-Frame Mounting Bolts
G00203028Courtesy of GENERAL MOTORS CORP.

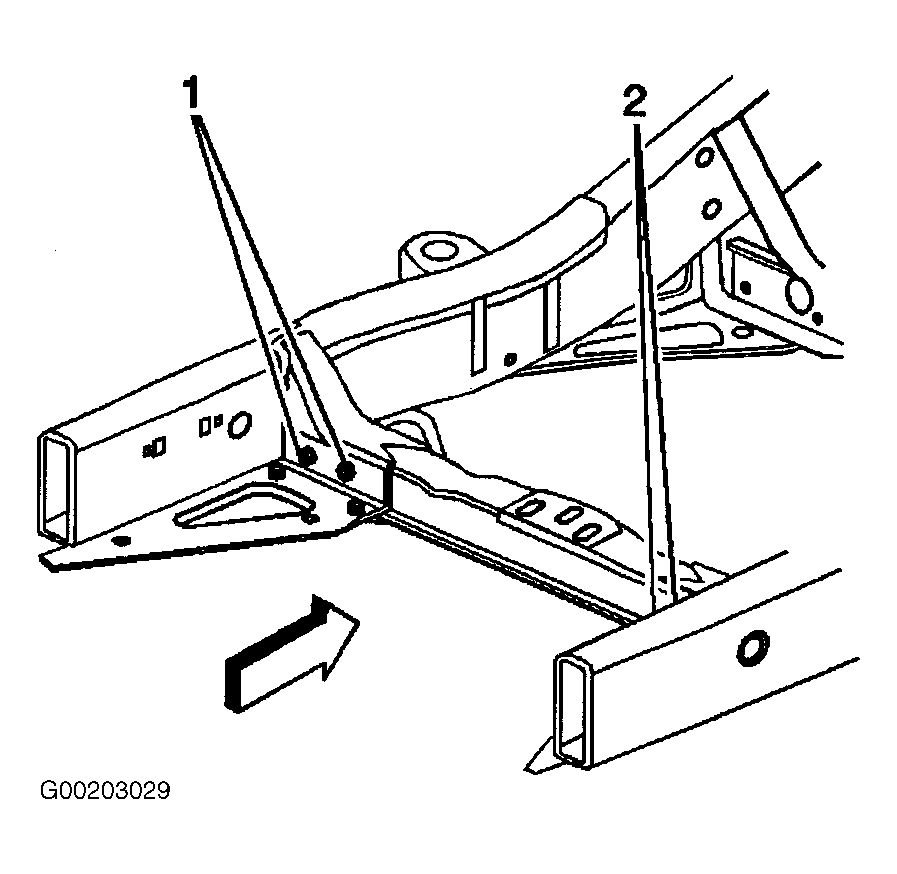

Fig 3: Removing Upper Support-To-Frame Mounting Bolts
G00203029Courtesy of GENERAL MOTORS CORP.
