Oil Cooler Hose/Pipe (VIN 6 - 5.3L): Installation
WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
- Install the transmission oil cooler lines to the vehicle.
- Install the transmission cooler lines to the transmission. See OIL COOLER LINES QUICK CONNECT FITTINGS .

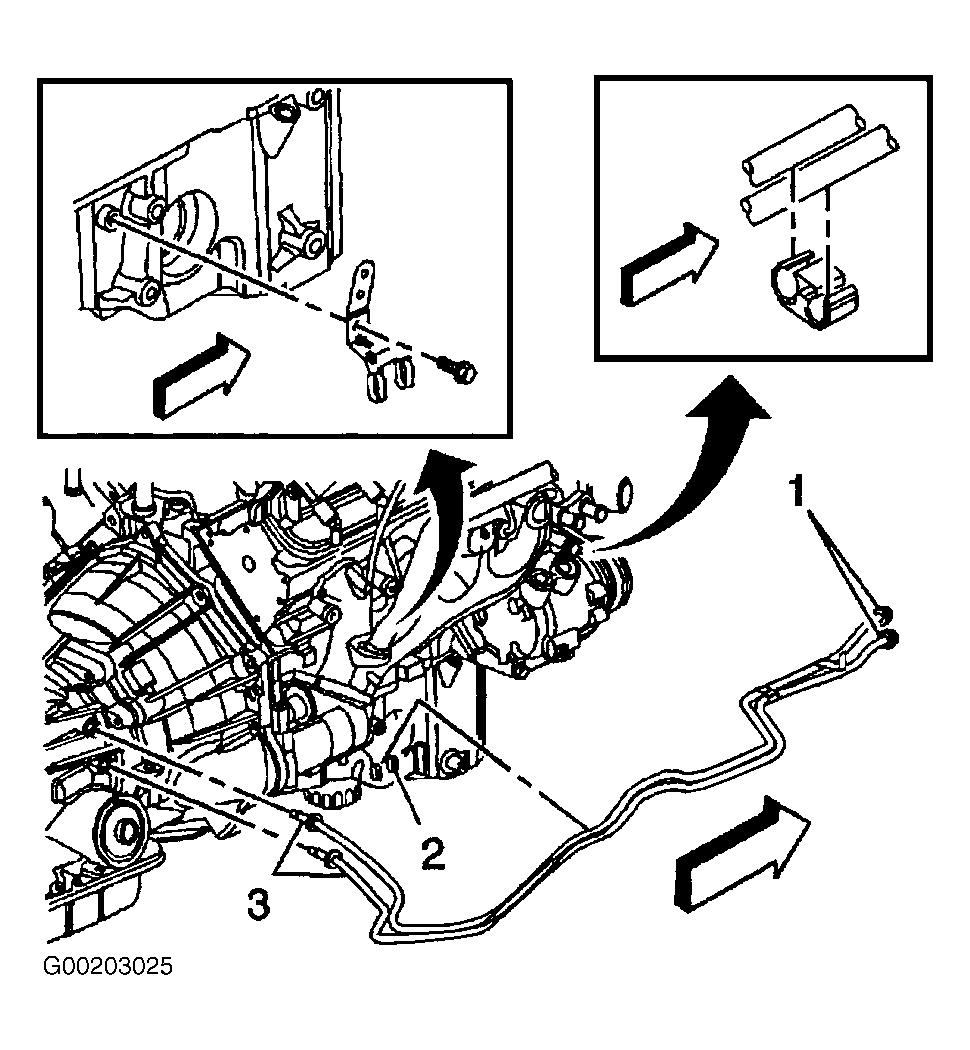

- Connect the rear cooler lines (2) to the front cooler lines (1). See Figure .
- Install the cooling line ends (3) to the transmission. See Figure and OIL COOLER LINES QUICK CONNECT FITTINGS .
- Raise the transmission into position.
- Install the front exhaust pipe assembly.
- Install the transmission support. See TRANSMISSION SUPPORT .
- Remove the transmission jack.
- Install the clip that holds the cooler lines together.
- Install the cooler lines to the retainer (2) located on the right side of the engine.
- Install the front sections of the cooler lines to the vehicle.
- Install the cooler lines to the retainer located on the radiator shroud.
- Connect the front and rear cooler lines at the quick connect fitting.
- Install the cooler lines (4 and 5) to the radiator. See Fig 1 and OIL COOLER LINES QUICK CONNECT FITTINGS .
- Remove the drain pan from under the vehicle.
- Lower the vehicle.
- Fill transmission with appropriate fluid to proper level. See LUBRICATION .
