Accumulator Assembly: Removal

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the transmission oil pan and filter. See DRAINING & REFILLING  under LUBRICATION.
    NOTE: The 1-2 accumulator can be removed without removing the control valve assembly.
  3. Remove the control valve body. See VALVE BODY & PRESSURE SWITCH  .
  4. Remove the accumulator cover retaining bolts. See Fig 1 .
  5. Remove the 1-2 accumulator cover assembly.
  6. Disassemble the 1-2 accumulator as follows:
    1. Blow compressed air into the 1-2 accumulator cover, as shown, to remove the 1-2 accumulator piston. See Fig 2 .
    2. Remove the 1-2 accumulator inner and outer springs.
  7. Inspect the 1-2 accumulator inner and outer springs for cracks.
  8. Remove the 1-2 accumulator piston seal (1) from the 1-2 accumulator piston. See Fig 3 .
  9. Inspect the 1-2 accumulator piston for the following defects:
    • Porosity.
    • Cracks.
    • Scoring.
    • Nicks and scratches.
  10. Inspect the 1-2 accumulator cover for the following defects:
    • Porosity.
    • Cracks.
    • Scoring.
    • Nicks and scratches. See Fig 4 .
  11. Remove the spacer plate support retaining bolts. See Fig 5 .
    NOTE: Use care not to drop the following items that will be removed along with the spacer plate:
    • No. 1 checkball.
    • 3-4 accumulator spring.
    • 3-4 accumulator pin.
  12. Remove the spacer plate support. See Fig 6 .
  13. Remove the spacer plate to valve body gasket, the spacer plate and the spacer plate to transmission case gasket.
  14. Remove the 3-4 accumulator piston (2). See Fig 7 .
  15. Inspect the 3-4 accumulator spring for cracks.
  16. Remove the 3-4 accumulator piston seal (1) from the 3-4 accumulator piston. See Fig 3 .
  17. Inspect the 3-4 accumulator piston for the following defects:
    • Porosity.
    • Cracks.
    • Scoring.
    • Nicks and scratches.

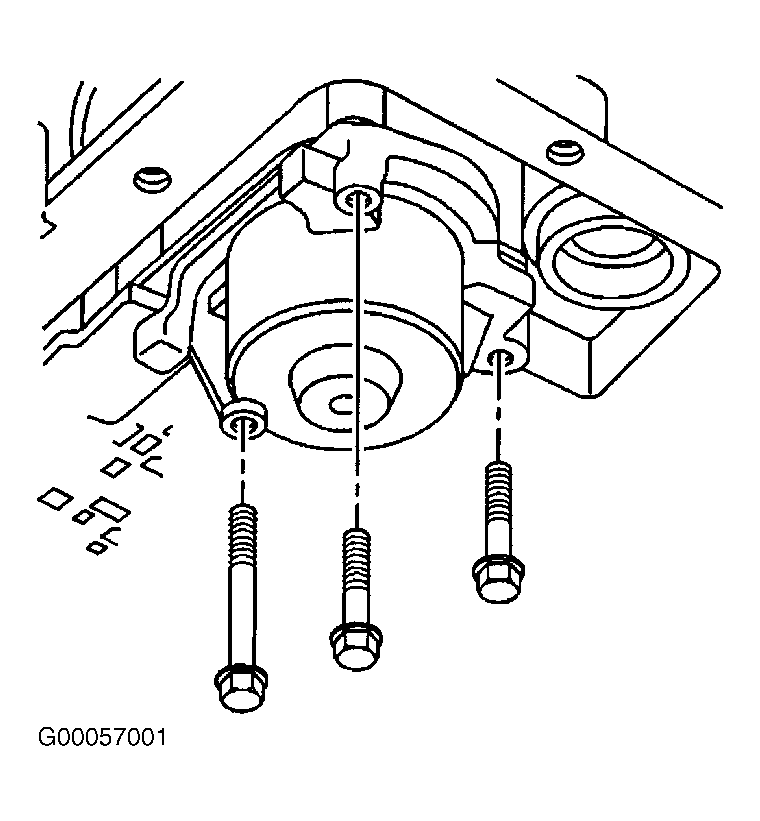

Fig 1: Removing & Installing Accumulator Assembly Bolts
G00057001Courtesy of GENERAL MOTORS CORP.
Fig 2: Applying Compressed Air Into 1-2 Accumulator
G00057002Courtesy of GENERAL MOTORS CORP.
Fig 3: Removing & Installing Accumulator Seals
G00089884Courtesy of GENERAL MOTORS CORP.
Fig 4: Inspecting Accumulator Cover For Damage
G00089889Courtesy of GENERAL MOTORS CORP.
Fig 5: Removing & Installing Oil Pass Cover
G00057004Courtesy of GENERAL MOTORS CORP.

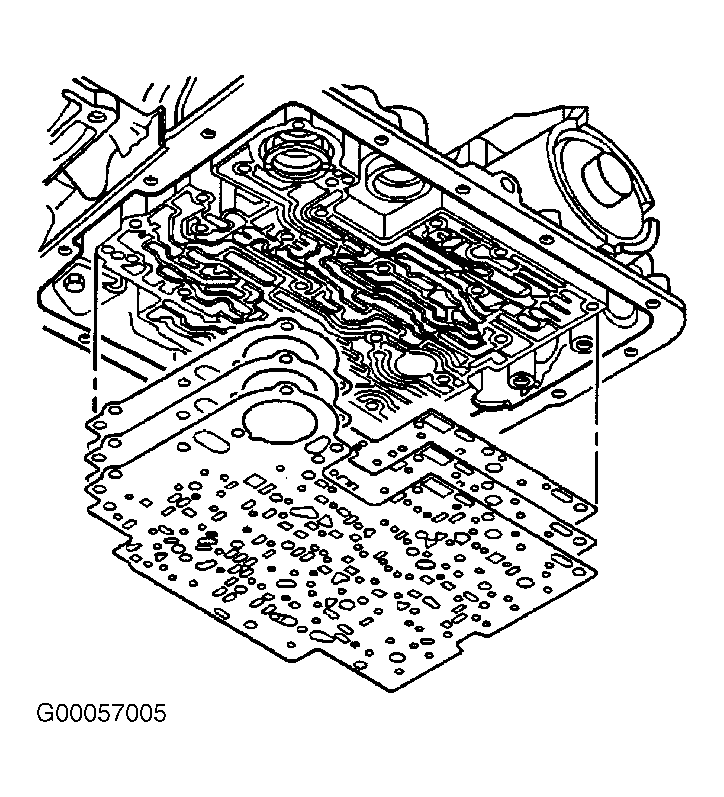

Fig 6: Removing & Installing Spacer Plates
G00057005Courtesy of GENERAL MOTORS CORP.

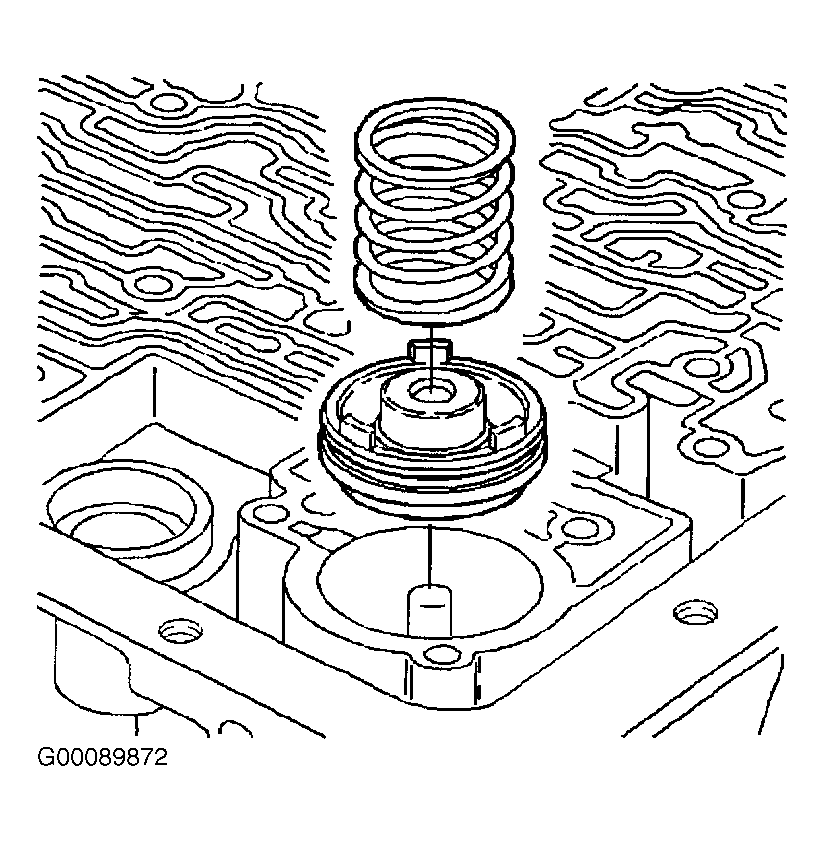

Fig 7: Removing & Installing 3-4 Accumulator Piston
G00089872Courtesy of GENERAL MOTORS CORP.
