Transaxle Reassembly: Notes
WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2003 Pontiac Montana, 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Pontiac Aztek, and 2003 Oldsmobile Silhouette. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

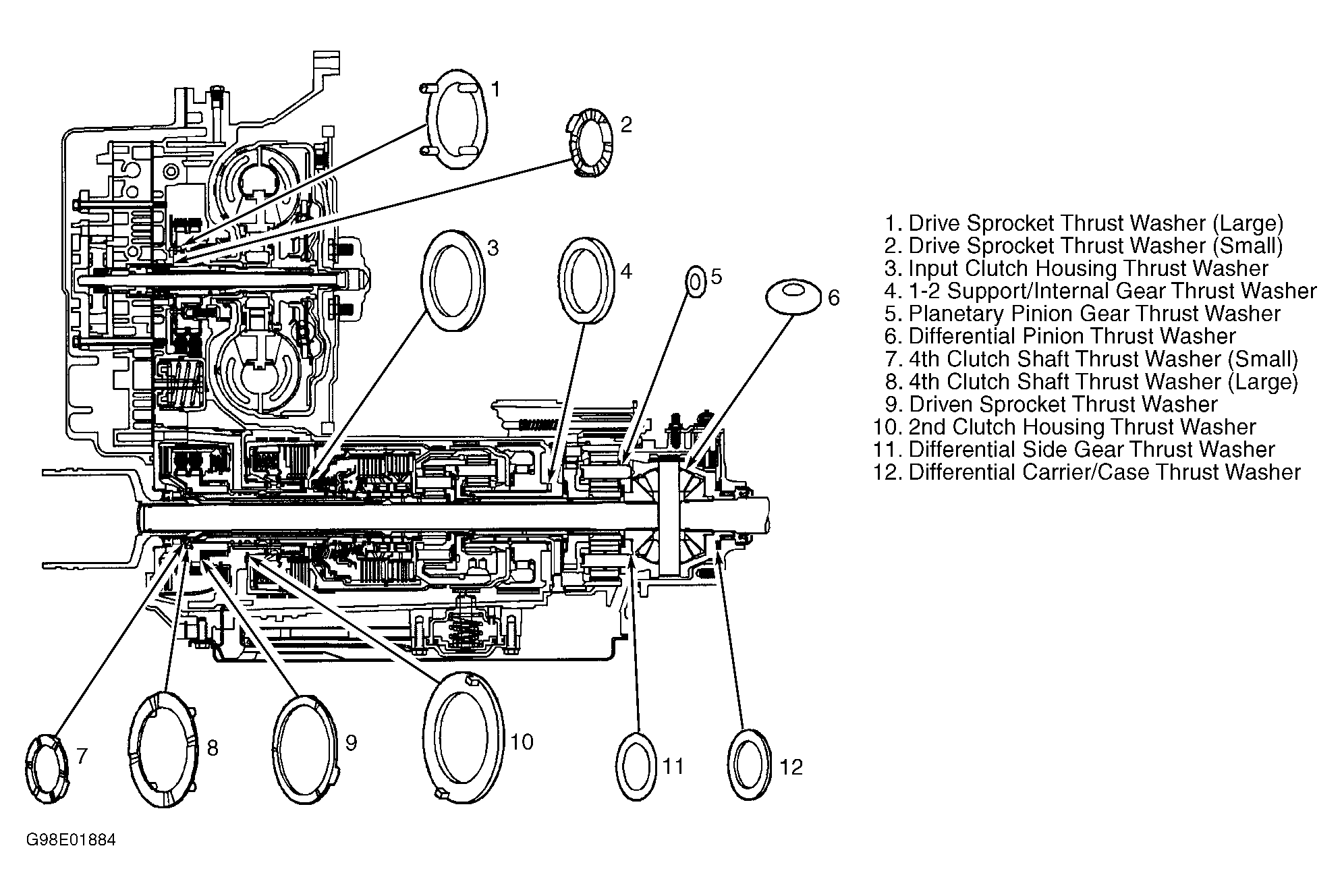

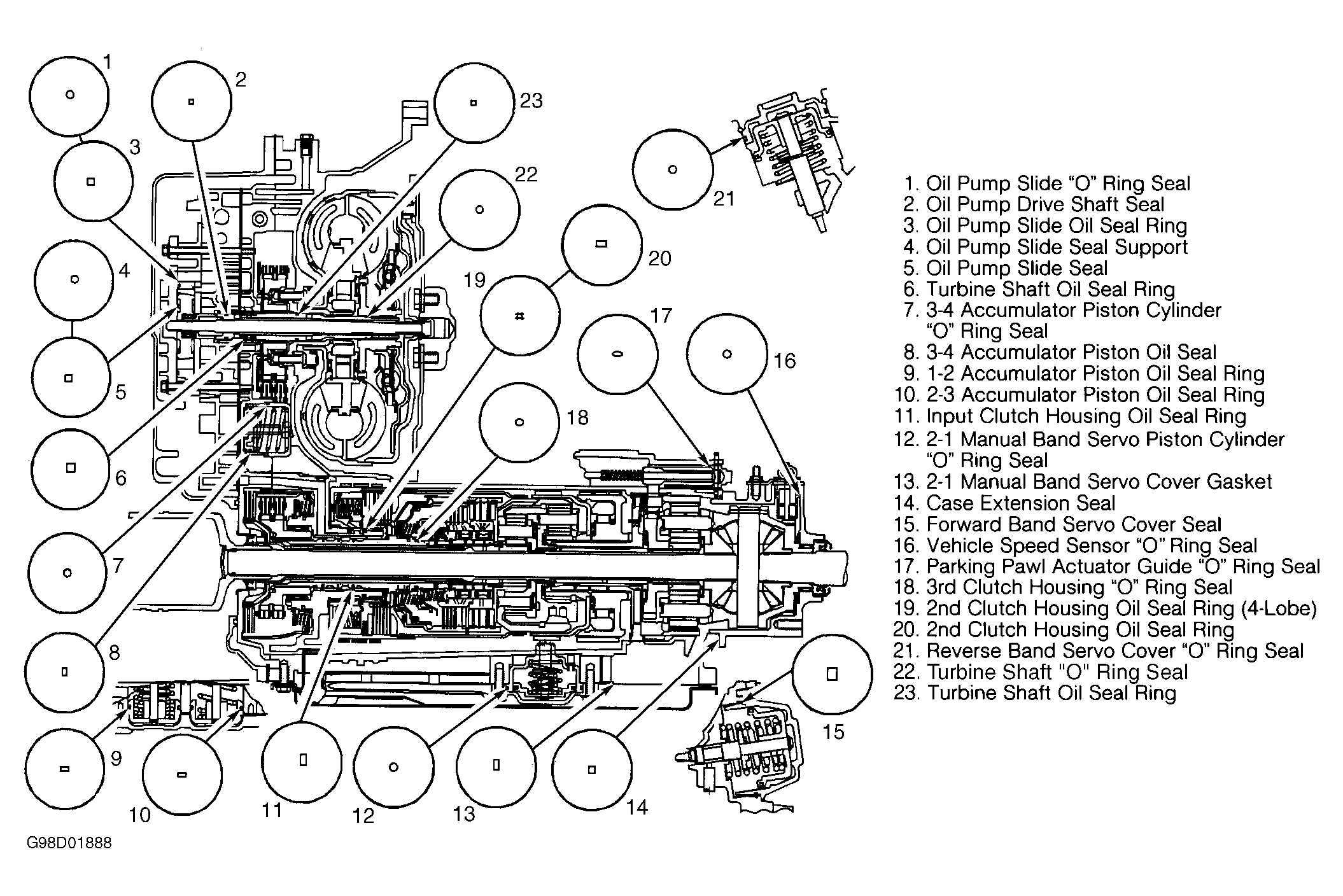

End play checks performed during TRANSAXLE DISASSEMBLY procedure must be rechecked at appropriate reassembly stage. For thrust washer, thrust bearing, bushing and seal installation direction and location during reassembly, refer to appropriate illustration. See Figure-Figure
.
