Torque Converter

WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2003 Pontiac Montana, 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Pontiac Aztek, and 2003 Oldsmobile Silhouette. However, it is still accessible from the selected car via links, so may be relevant.

Remove torque converter and turbine shaft "O" ring seal. See Fig 1. Install Holding Fixture (J-28664-B) onto transaxle. See Fig 2. Install transaxle and holding fixture into Base (J-3289-20). Insert pin into base to hold transaxle in desired position.

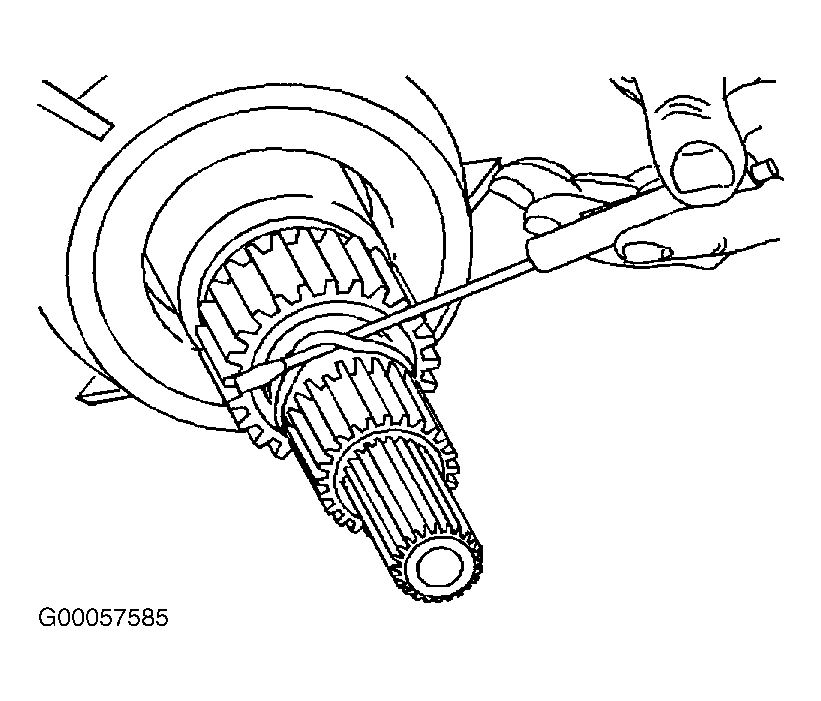

Fig 1: Removing Turbine Shaft "O" Ring Seal

Courtesy of GENERAL MOTORS CORP.

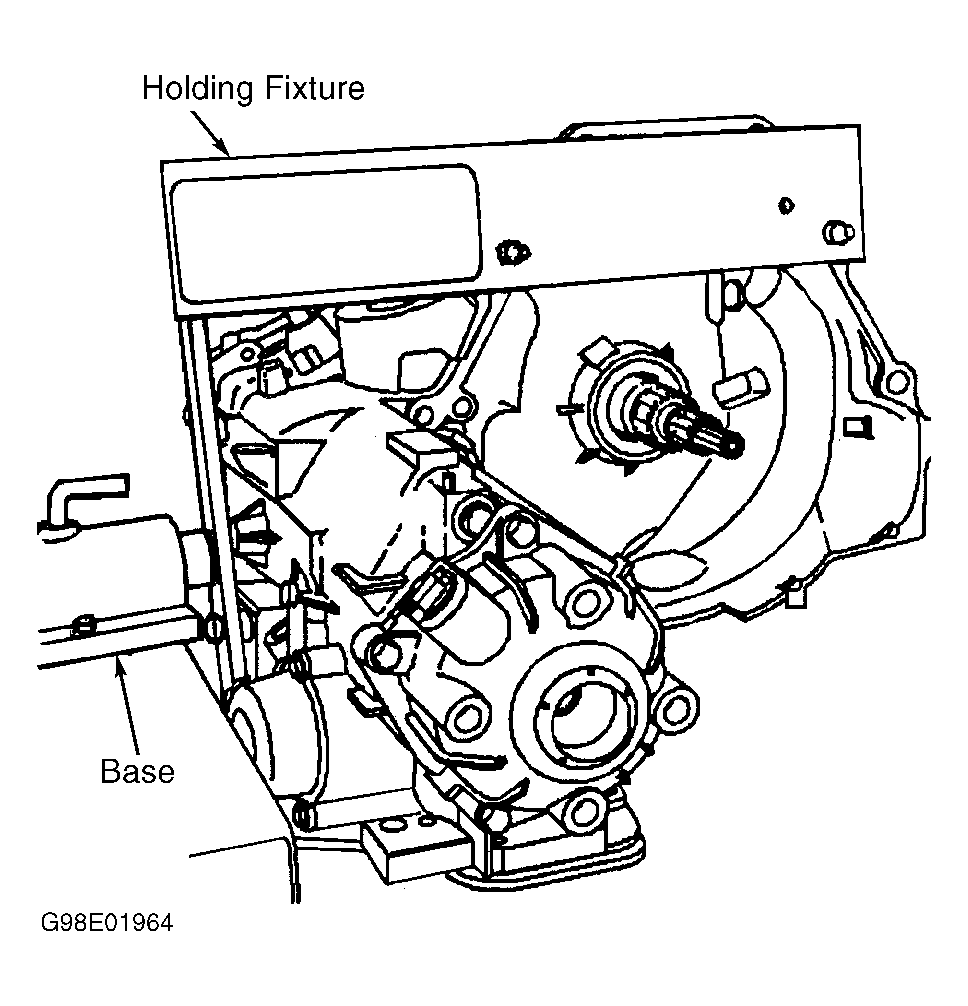

Fig 2: Installing Transaxle Holding Fixture & Base

Courtesy of GENERAL MOTORS CORP.
