Input & Reaction Carrier
WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2003 Pontiac Montana, 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Pontiac Aztek, and 2003 Oldsmobile Silhouette. However, it is still accessible from the selected car via links, so may be relevant.

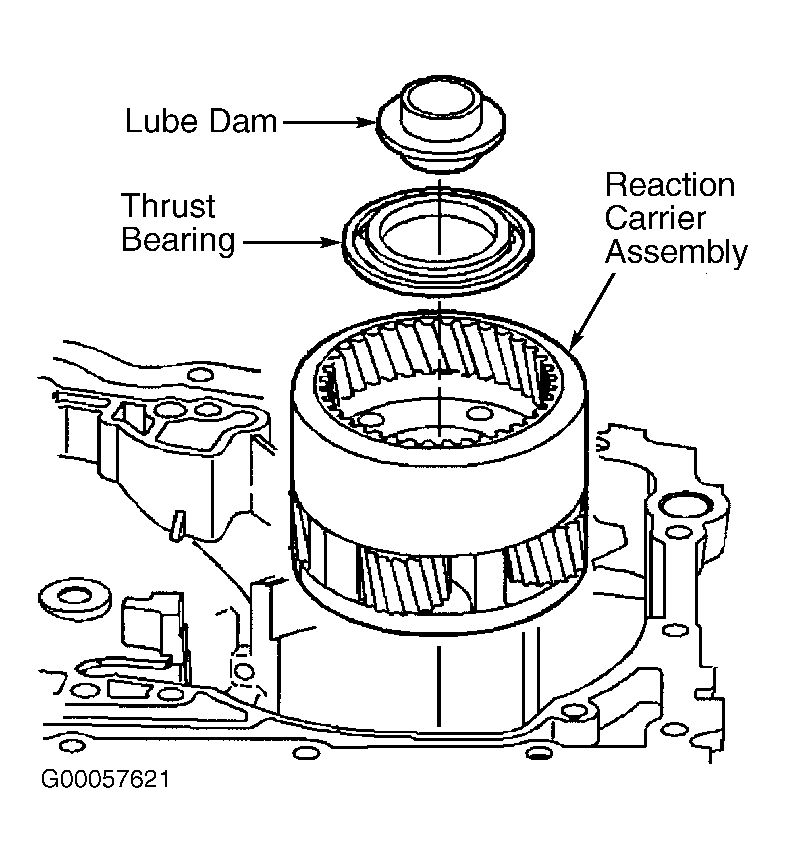

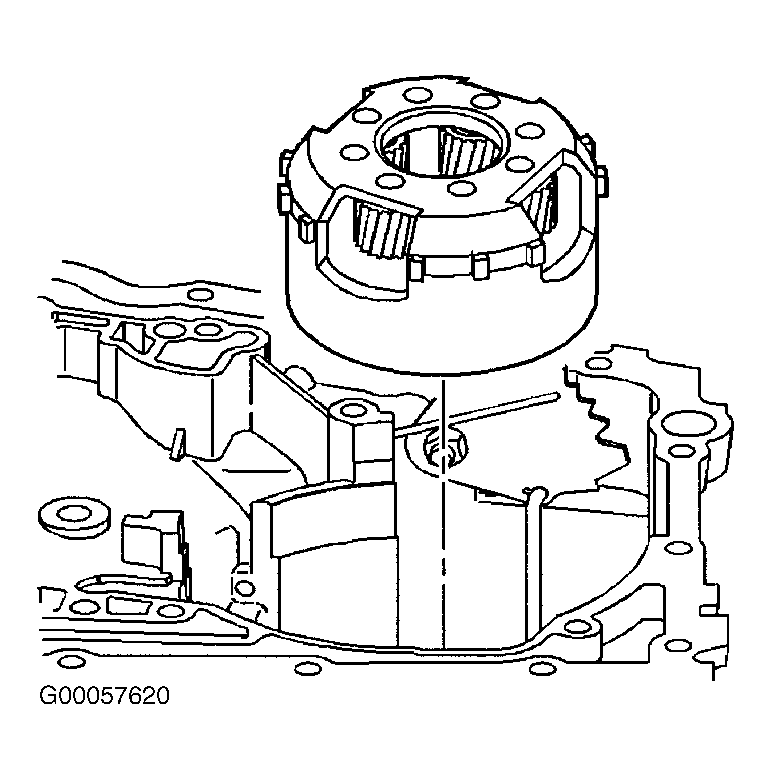

Position transaxle with case cover facing up. Remove input carrier assembly. See Fig 1. Remove input carrier and reaction carrier lube dam. See Fig 2. Lube dam may be stuck to input carrier assembly. Remove thrust bearing from reaction carrier. Remove reaction carrier assembly.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
