Final Drive Internal Gear
WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2003 Pontiac Montana, 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Pontiac Aztek, and 2003 Oldsmobile Silhouette. However, it is still accessible from the selected car via links, so may be relevant.

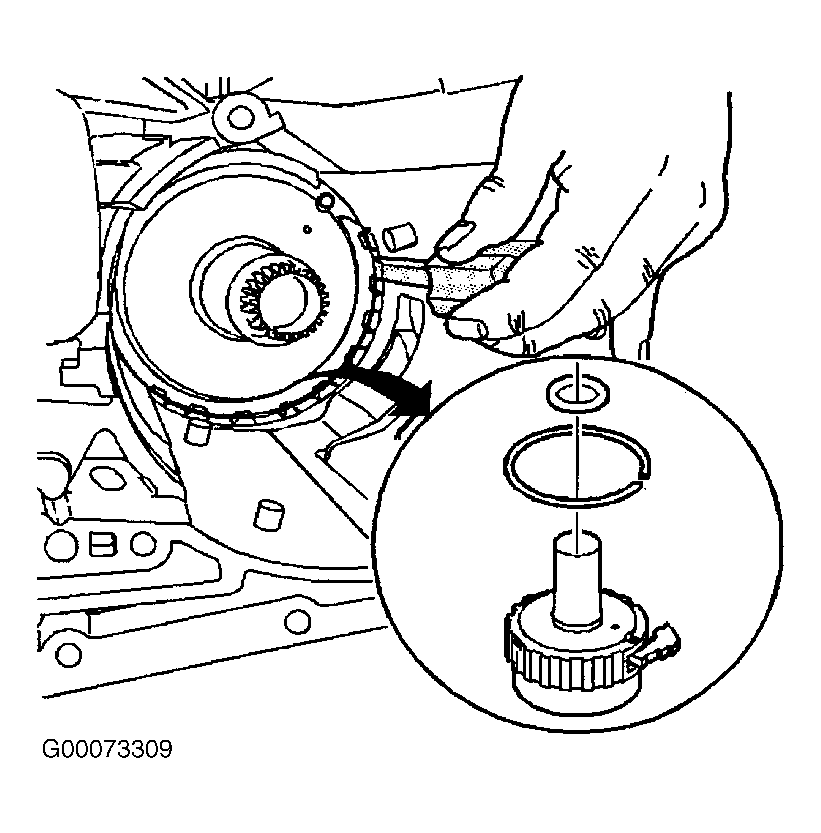

Remove thrust washer from final drive internal gear. Use snap ring remover or large screwdriver to remove final drive internal gear retaining ring. Lift final drive internal gear out of case by depressing parking pawl to clear case. See Fig 1.
