Disassembly & Reassembly
WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2003 Pontiac Montana, 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Pontiac Aztek, and 2003 Oldsmobile Silhouette. However, it is still accessible from the selected car via links, so may be relevant.

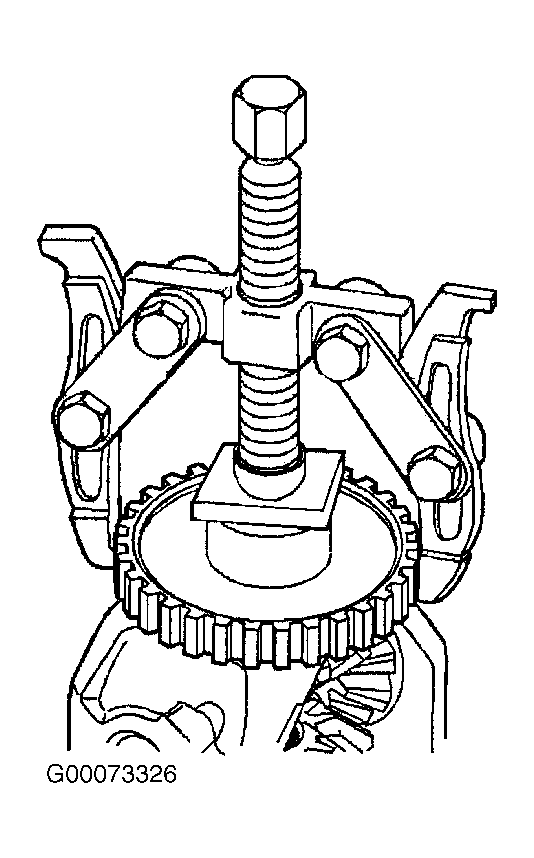

To remove reluctor wheel, install flat metal stock over output shaft opening. Position Bearing Remover (J-22888) arms onto outer edges of reluctor wheel. Position bearing remover shaft onto flat metal stock. Pull wheel off of carrier. See Fig 1. To reassemble, heat reluctor wheel slightly. Using plastic mallet, install reluctor wheel onto carrier by tapping evenly around reluctor wheel edge.
