Input & Reaction Carrier: Inspection
WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2003 Pontiac Montana, 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Pontiac Aztek, and 2003 Oldsmobile Silhouette. However, it is still accessible from the selected car via links, so may be relevant.

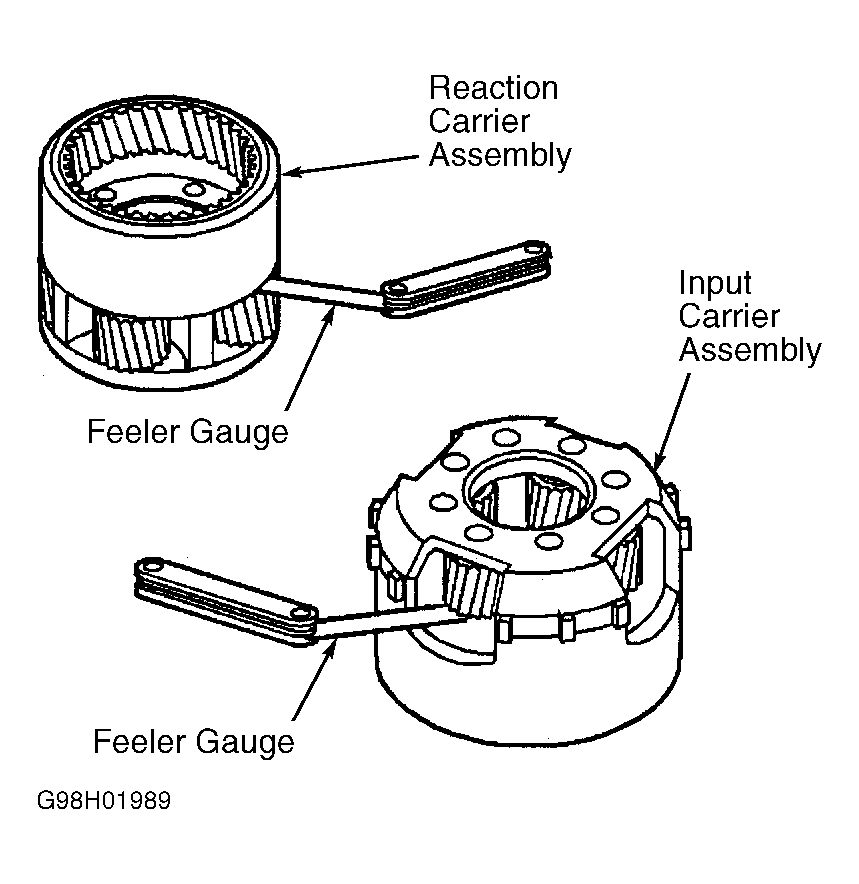

- Using feeler gauge, check for excessive pinion gear end play in input carrier and reaction carrier assemblies. End play should be .009-.030" (.23-.76 mm). If end play is not as specified, replace appropriate component. See Fig 1.
- Inspect thrust bearings, reaction carrier and input carrier for the following:
- Damaged cage.
- Damaged or missing rollers.
- Damage to pinion teeth.
- Damage to internal gear teeth.
- Damage to spline teeth.
Replace components as necessary. See Fig 2.
