Control Valve Body Spacer Plate: Inspection
WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2003 Pontiac Montana, 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Pontiac Aztek, and 2003 Oldsmobile Silhouette. However, it is still accessible from the selected car via links, so may be relevant.

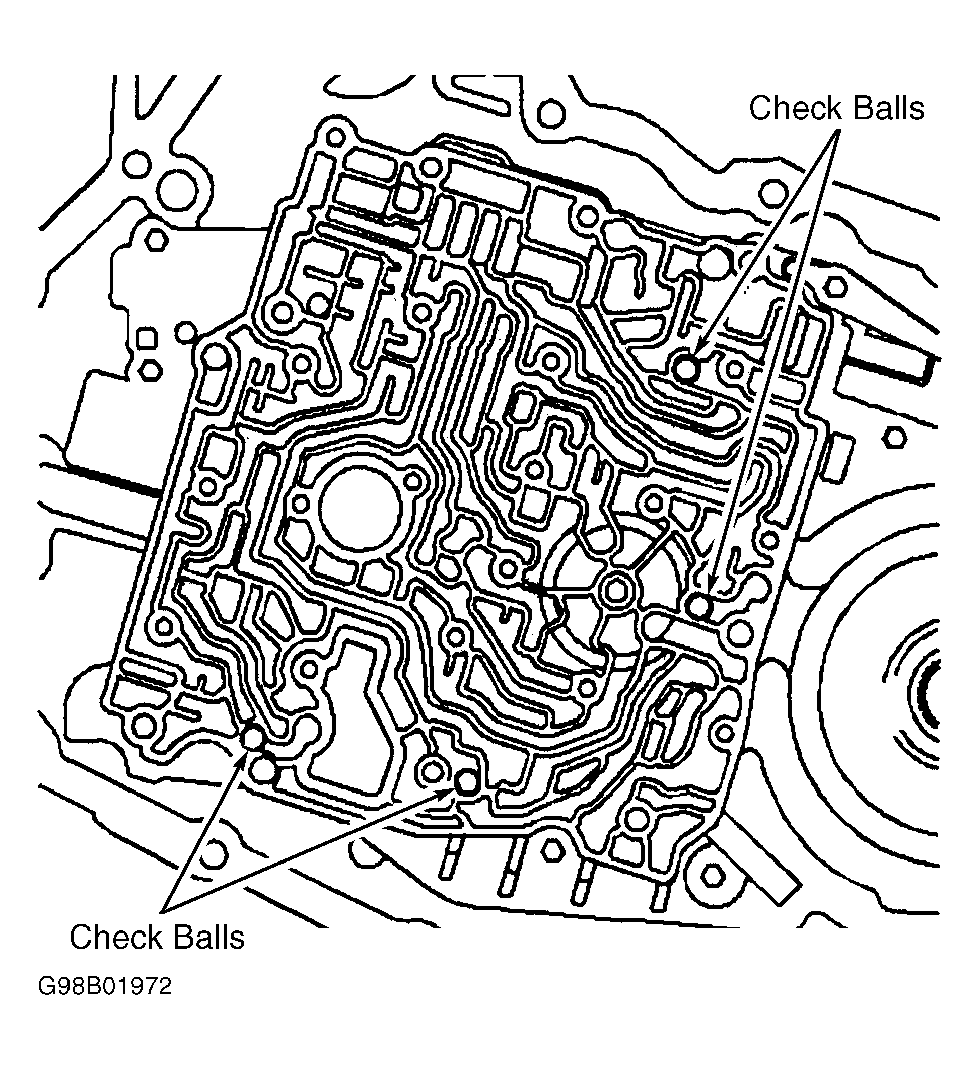

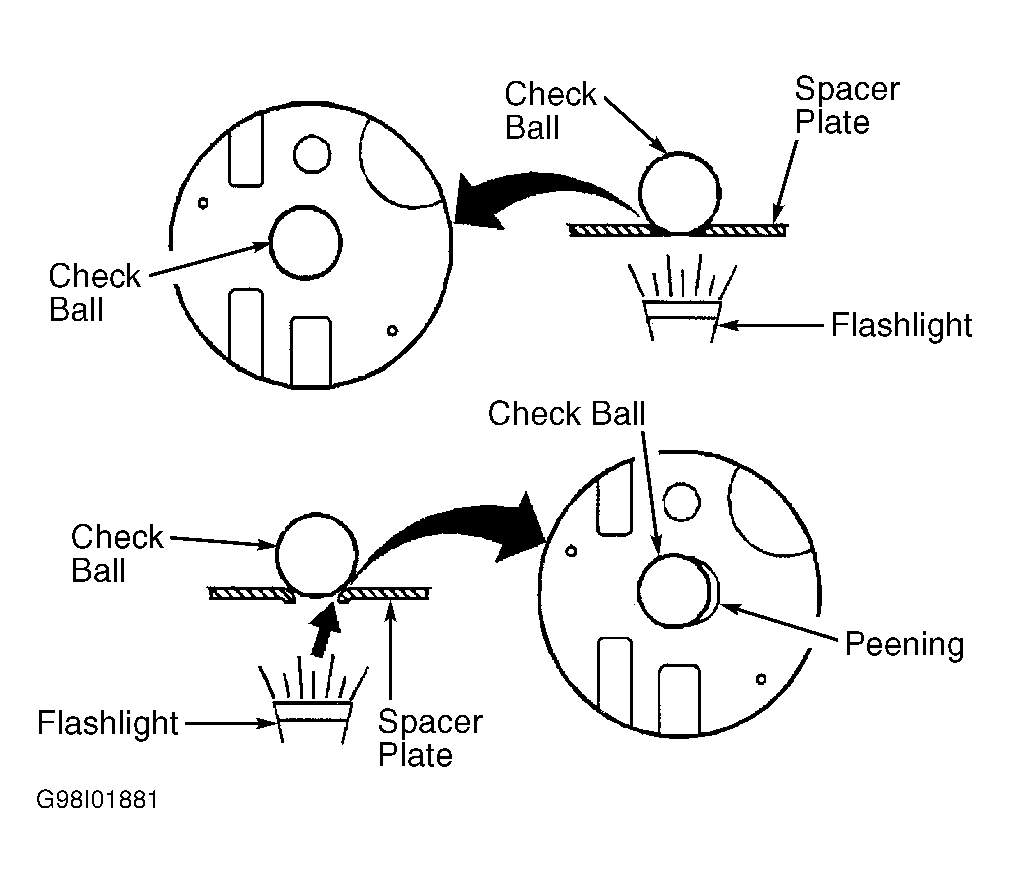

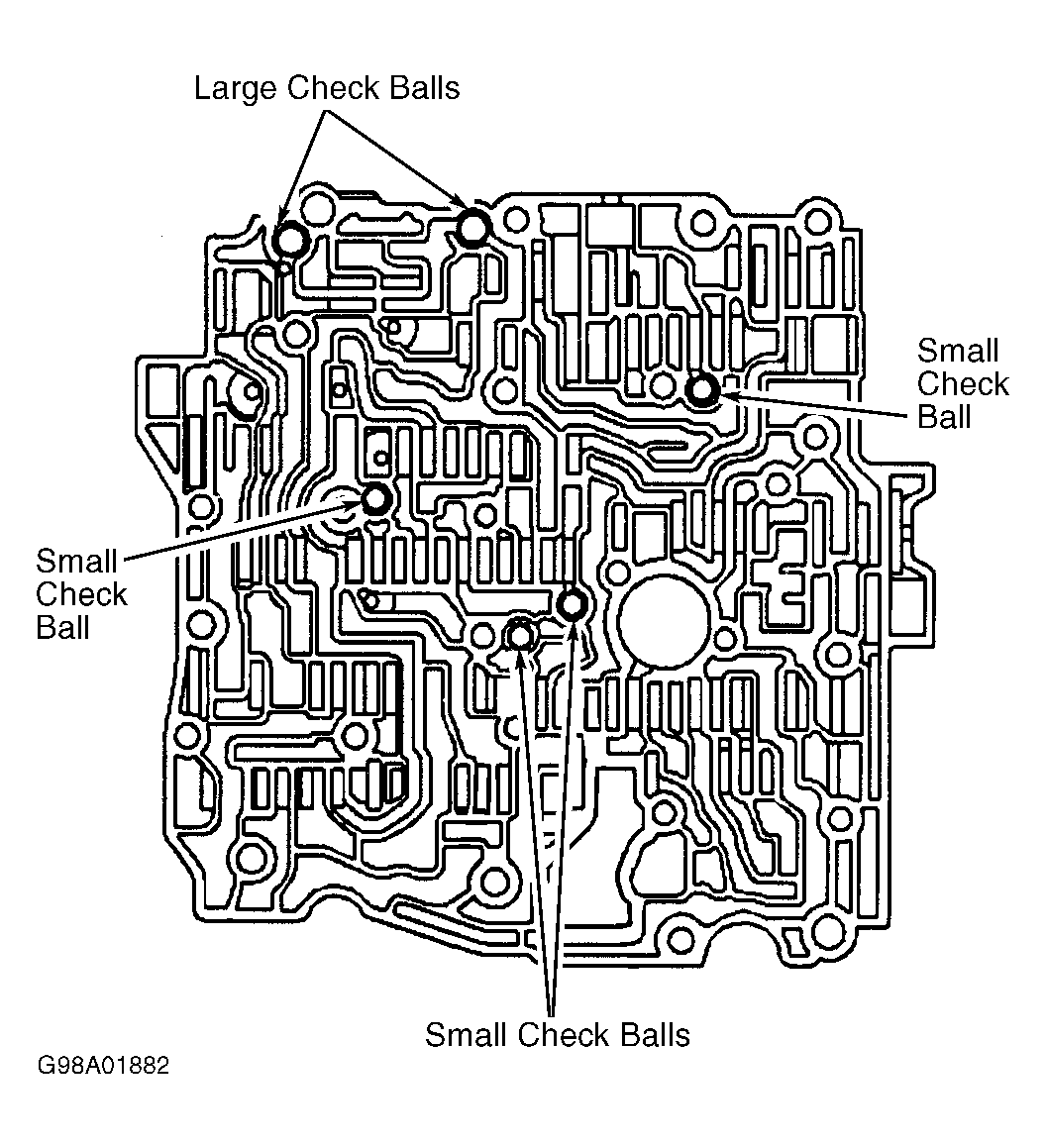

- Inspect control valve body spacer plate for plugged holes, damaged sealing surfaces, or plugged or damaged screen/seal assemblies. Inspect each check ball seat on spacer plate for excessive peening. Place check ball on each seat. Using flashlight, look for visible light between check ball and seat. See Fig 1. If light is visible between check ball and seat, replace spacer plate. For check ball locations, see Figure and Figure .
