Case Cover Components: Reassembly
WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2003 Pontiac Montana, 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Pontiac Aztek, and 2003 Oldsmobile Silhouette. However, it is still accessible from the selected car via links, so may be relevant.

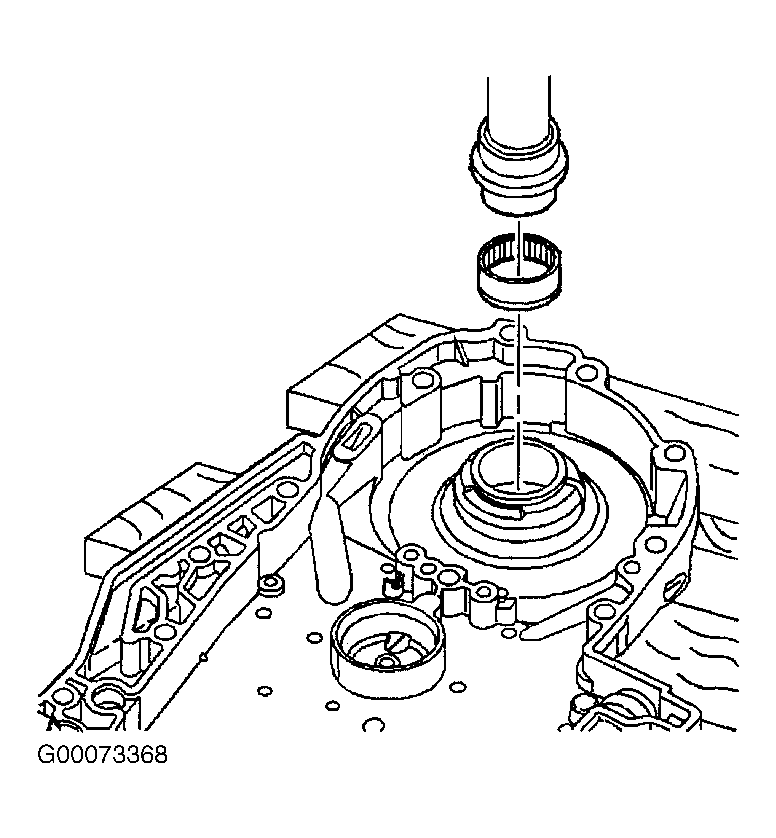

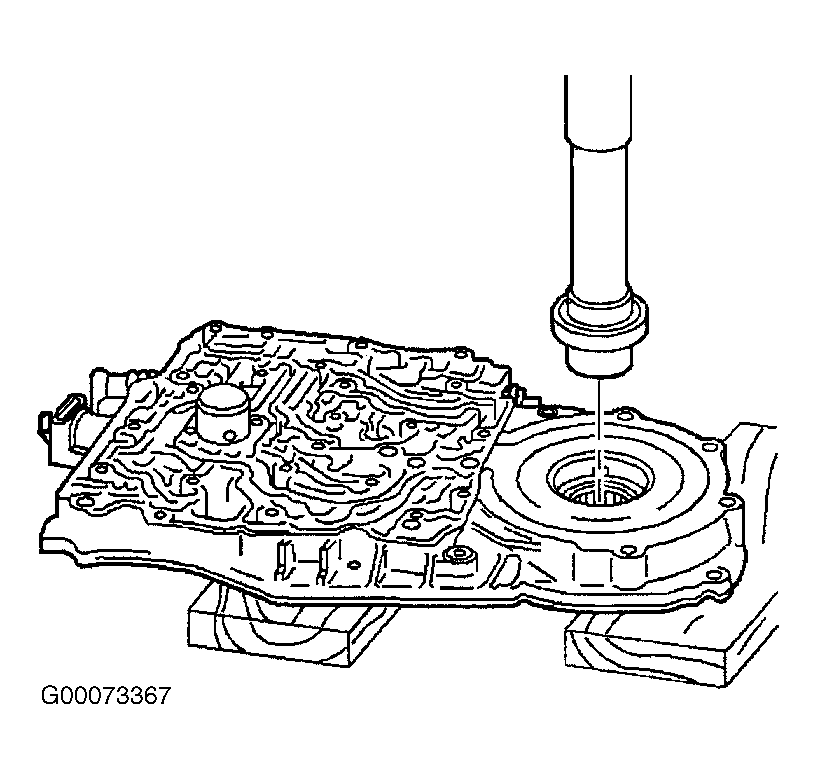

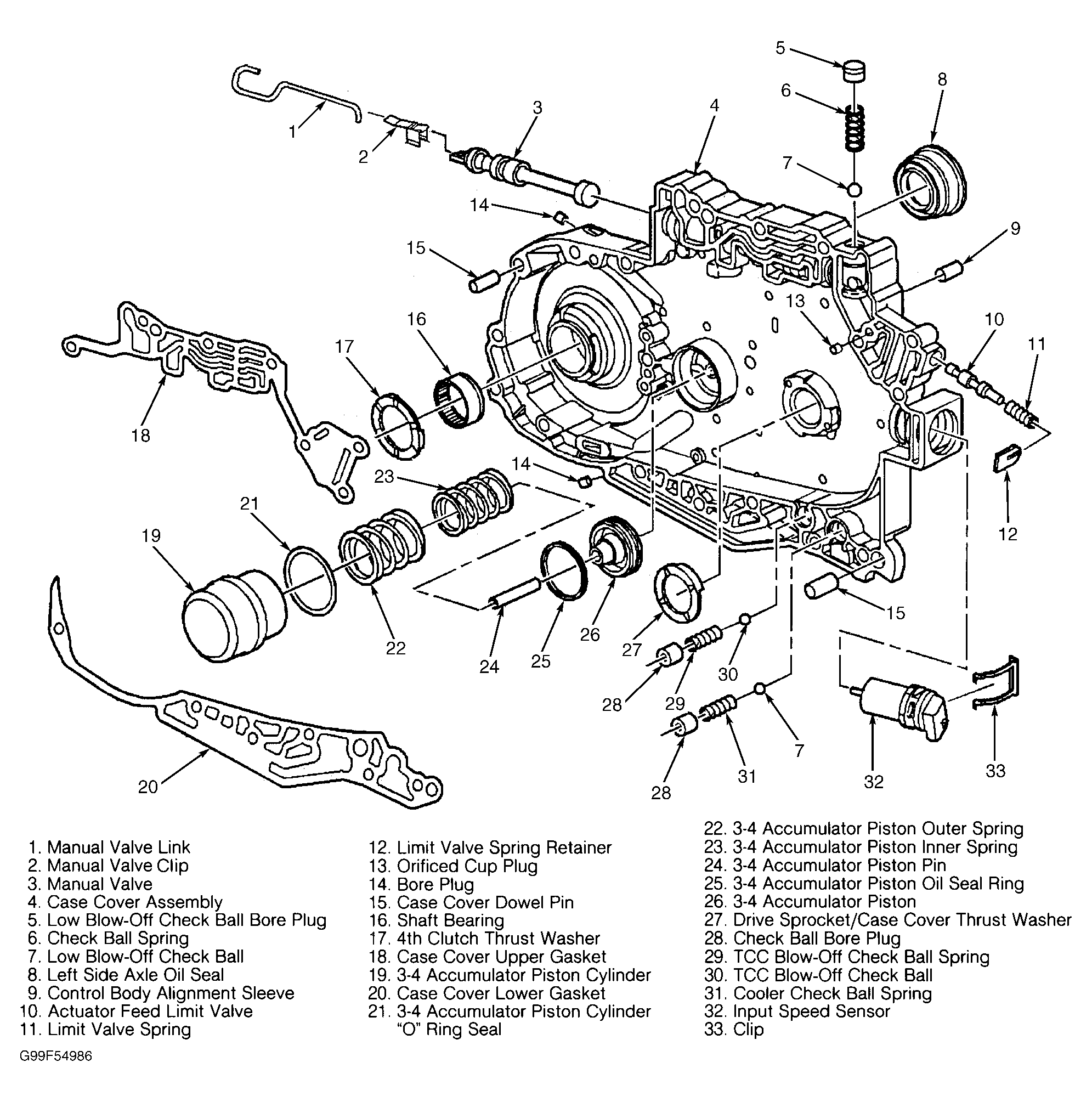

Install NEW 3-4 accumulator piston cylinder "O" ring seal onto 3-4 accumulator piston cylinder. Install 3-4 accumulator piston outer and inner spring into 3-4 accumulator piston cylinder. Install NEW 3-4 accumulator piston seal onto 3-4 accumulator piston. Insert 3-4 accumulator piston into 3-4 accumulator piston cylinder. Using a slight twisting motion, insert 3-4 accumulator piston cylinder into case cover. Insert 3-4 accumulator piston pin through front of case cover and into 3-4 accumulator piston. Install manual valve into case cover. Install actuator feed limit valve, spring and spring retainer into case cover. See Fig 1.
