2ND Clutch Assembly: Disassembly
WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2003 Pontiac Montana, 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Pontiac Aztek, and 2003 Oldsmobile Silhouette. However, it is still accessible from the selected car via links, so may be relevant.

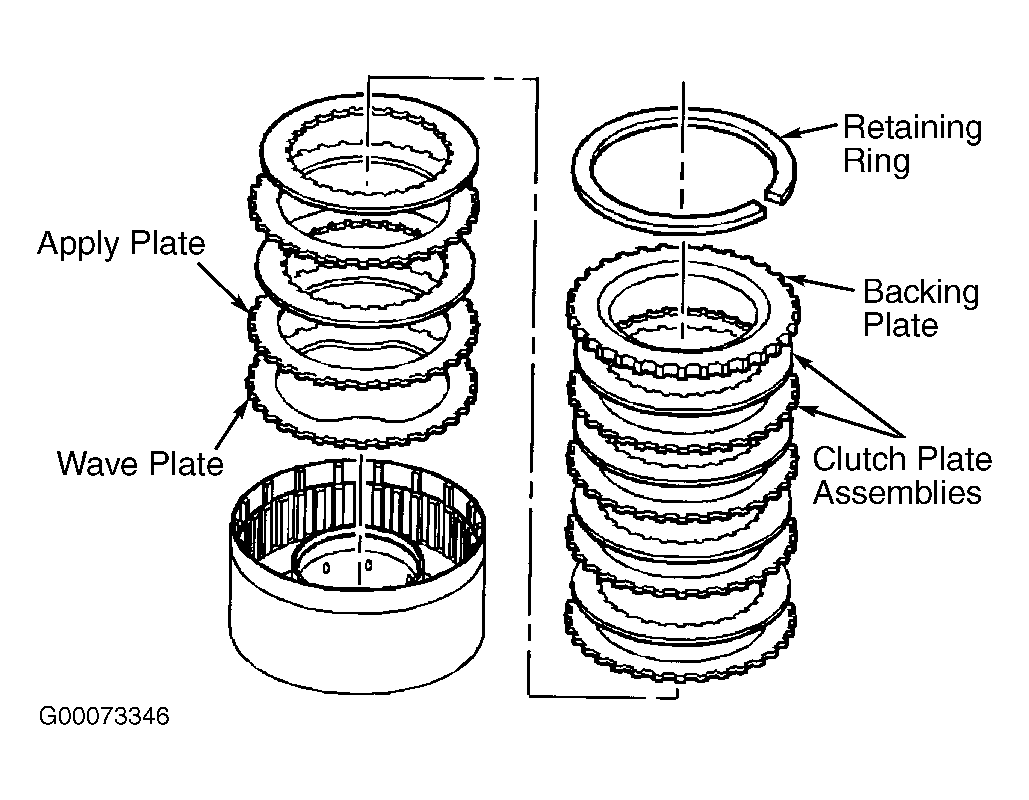

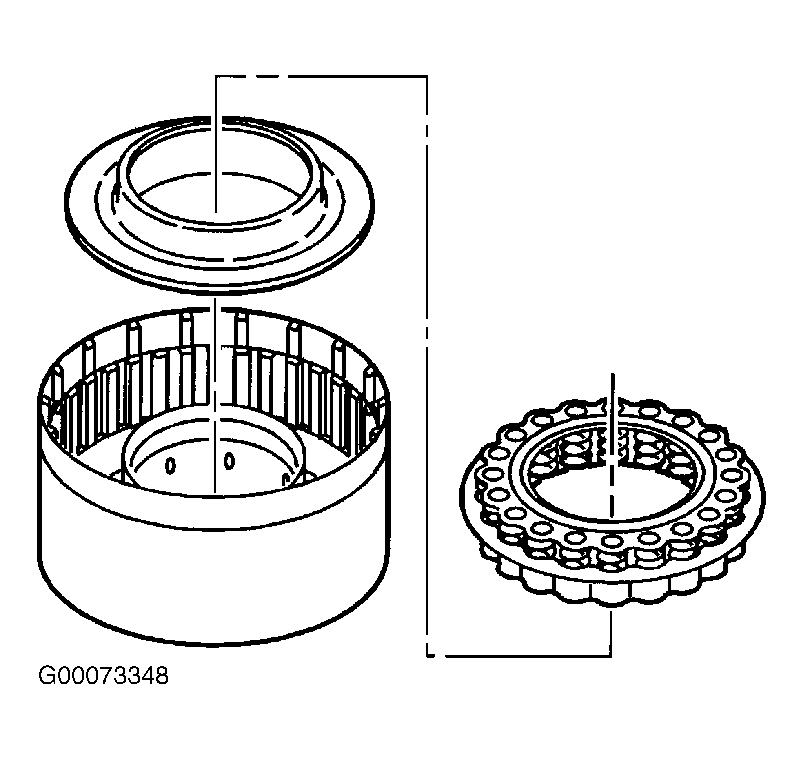

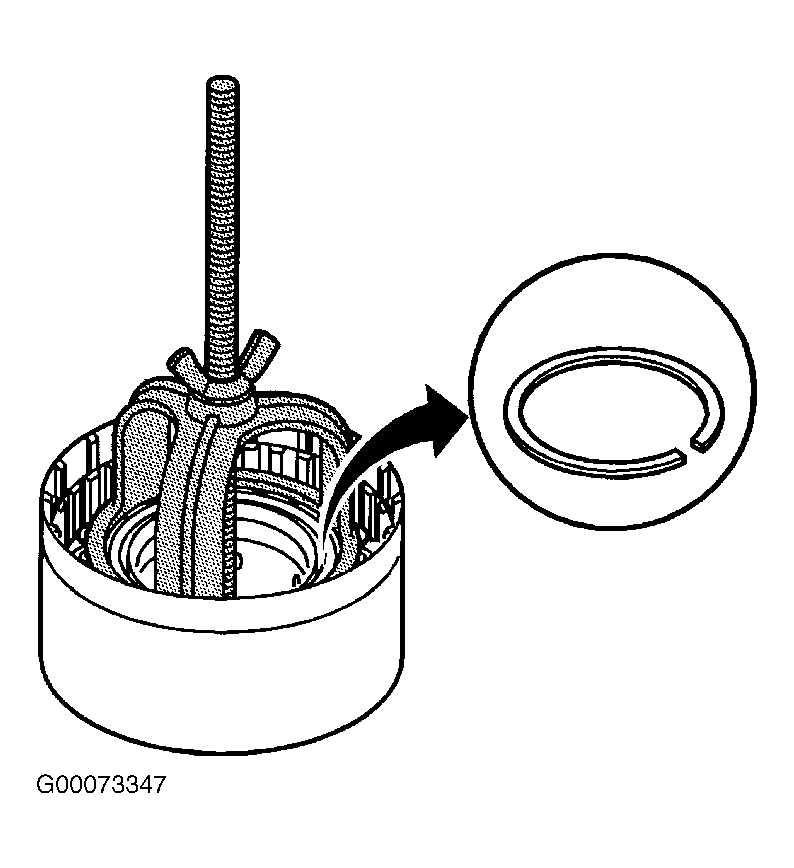

Using flat-blade screwdriver, remove retaining ring from 2nd clutch housing. Remove backing plate, composition plates, steel plates, apply plate and waved plate. See Figure. Using spring compressor, compress 2nd clutch piston spring. Remove retaining ring. See Figure. Remove 2nd clutch spring assembly and 2nd clutch piston. See Figure.
