Functional Check

WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2003 Pontiac Montana, 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Pontiac Aztek, and 2003 Oldsmobile Silhouette. However, it is still accessible from the selected car via links, so may be relevant.

Position 1-2 support drum on bench. Install reaction sun gear assembly into 1-2 support drum. Rotate reaction sun gear counterclockwise. Rotate 1-2 support drum clockwise. See Fig 4. Roller clutch should move freely in indicated directions. Roller clutch should lock in opposite direction. If roller clutch does not function as described, clutch is not assembled correctly. Reassemble as necessary.

Fig 1: Removing 1-2 Roller Clutch

Courtesy of GENERAL MOTORS CORP.

Fig 2: Inspecting 1-2 Roller Clutch & 1-2 Support Drum

Courtesy of GENERAL MOTORS CORP.

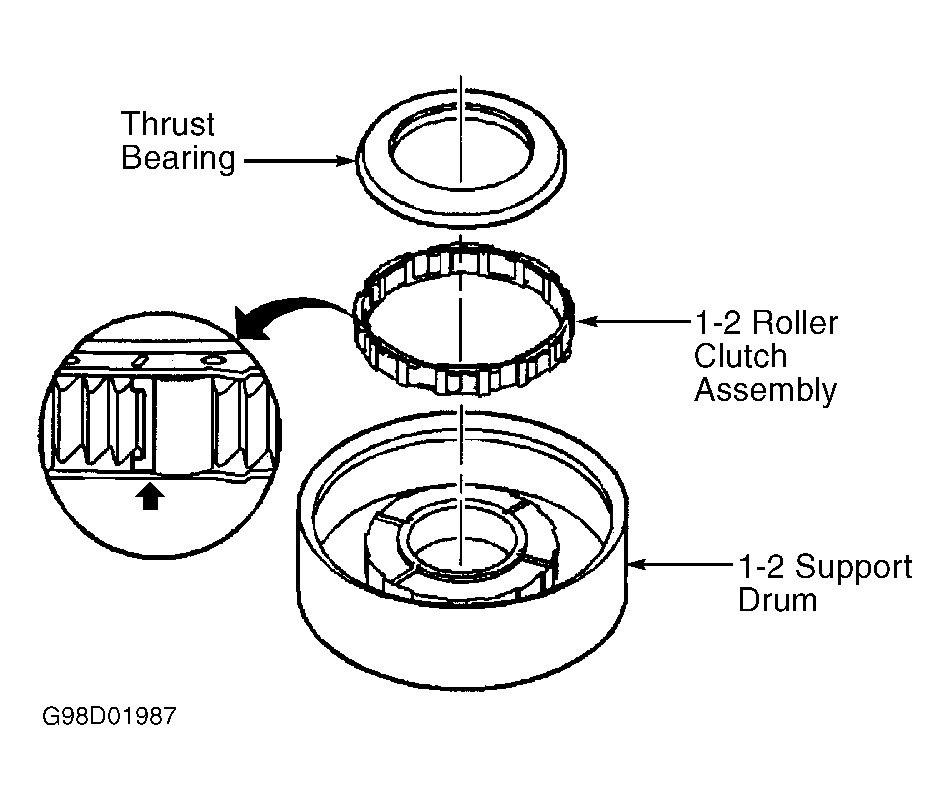

Fig 3: Installing 1-2 Roller Clutch Into 1-2 Support Drum

Courtesy of GENERAL MOTORS CORP.

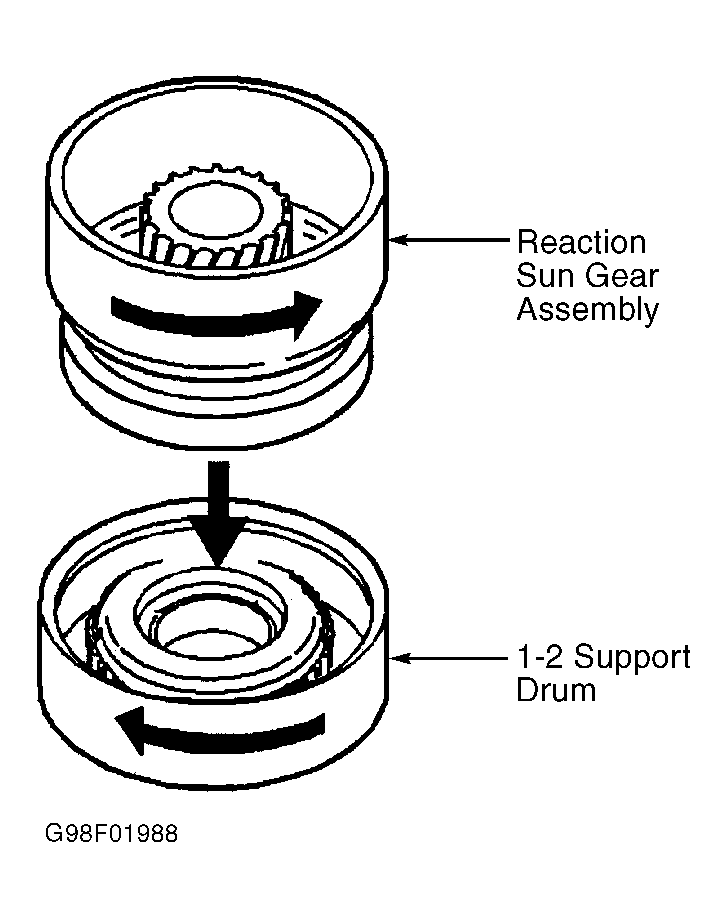

Fig 4: Checking 1-2 Support Roller Clutch Operation

Courtesy of GENERAL MOTORS CORP.
