Control Cable: Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

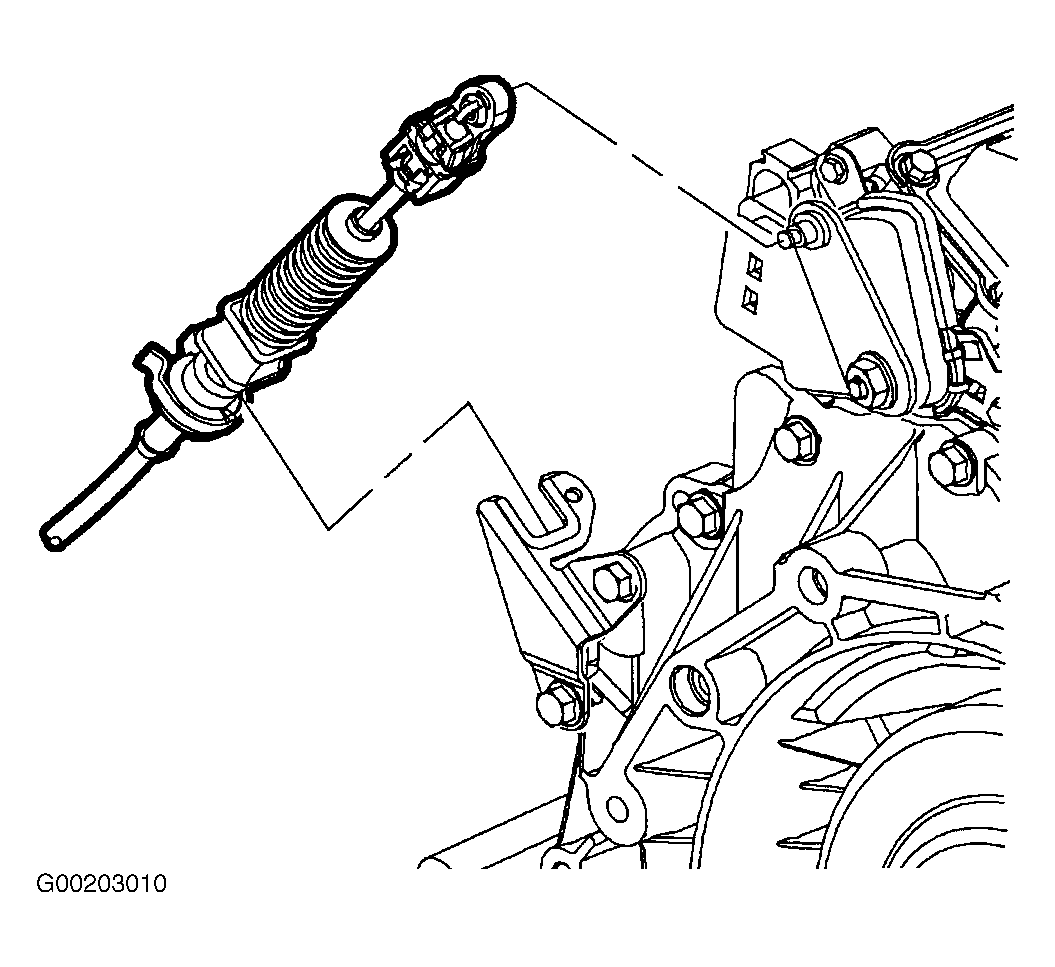

  1. Route control cable through cable bracket. See Figure .

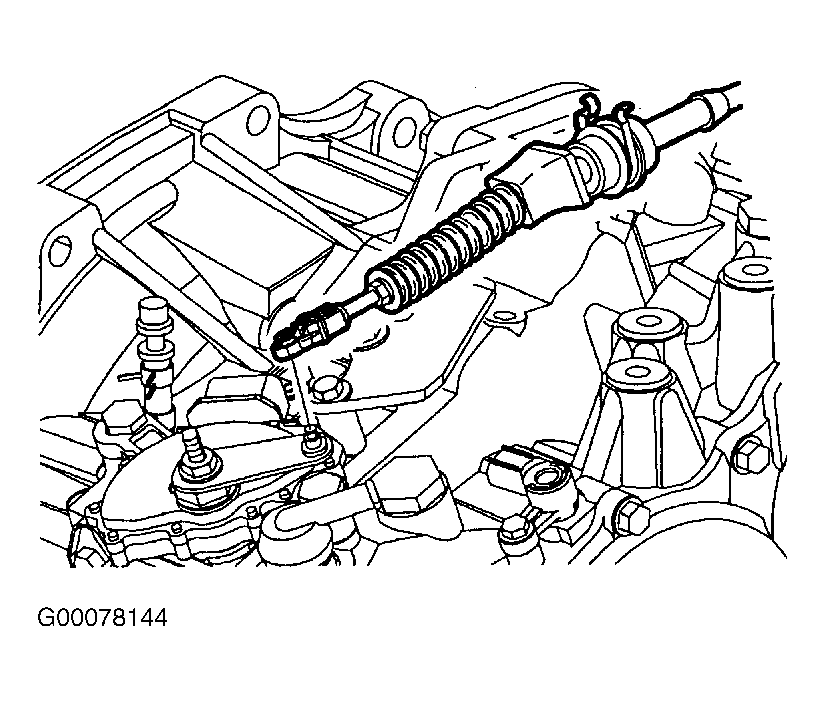

  2. Secure cable to bracket with control cable retainer clip. An audible snap will be heard when properly installed. See Figure .
  3. With transaxle range switch lever located in Neutral, snap cable end fitting onto ball stud of lever. An audible snap will be heard when properly installed.
  4. Position the vehicle on a hoist and raise the vehicle.

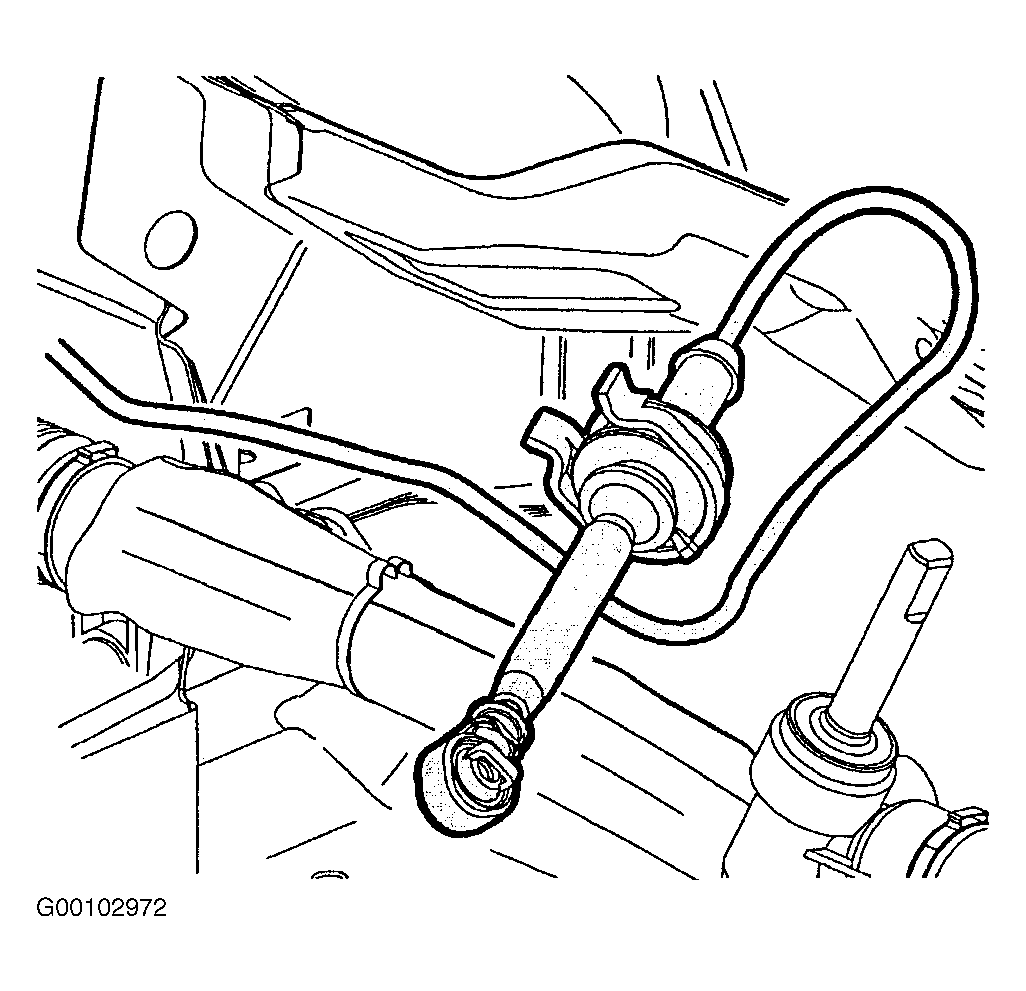

  5. Route the cable along the steering gear assembly into the clip and up into the dash panel. See Figure .
  6. Lower the vehicle.

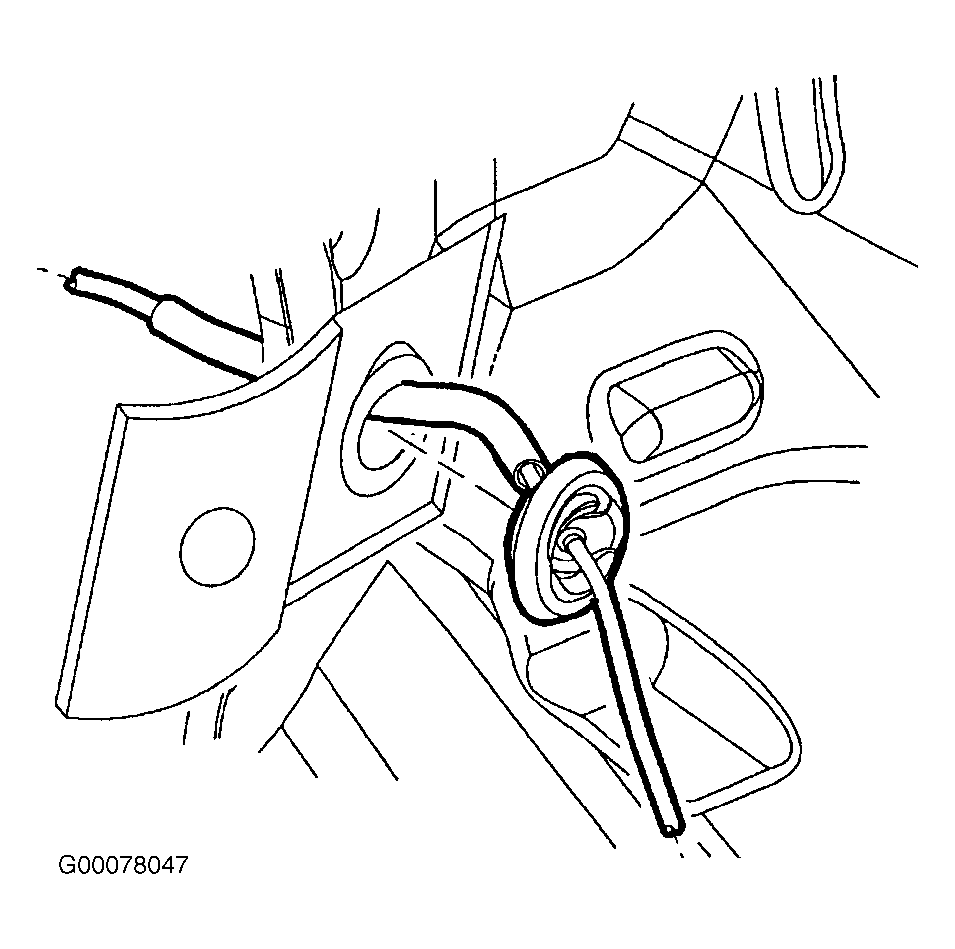

  7. Secure control cable grommet by pressing cable into pass-through hole in dash panel. See Figure .
  8. Make sure control assembly is in Neutral position.

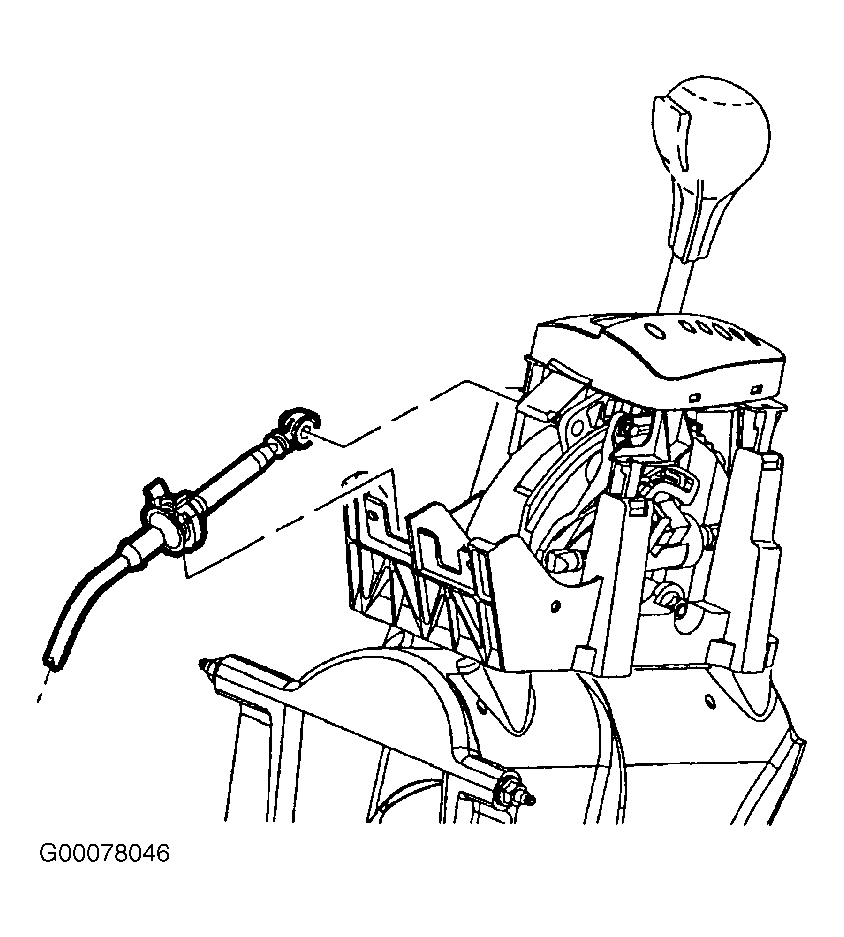

  9. Connect control cable to control assembly. Secure with control cable retainer clip. See Figure .
  10. Install control cable onto control assembly lever.
  11. Adjust control cable assembly. See CONTROL CABLE  under ADJUSTMENTS.
  12. Install console. See CONSOLE  .
  13. Position battery tray bracket and tighten screws to specification. See Figure and TORQUE SPECIFICATIONS  .
  14. Install battery cooling box. See BATTERY COOLING BOX  .
  15. Insert battery and tighten battery hold-down screw to specification. Connect positive battery cable to battery and tighten to specification. Connect negative battery cable to battery and tighten to specification. Install battery cooling box cover and tighten screws to specification. See TORQUE SPECIFICATIONS  .
