Removal & Installation: Console: Removal

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front seats rearward.
  2. Reach under the front seats to access the lower console screws.
  3. Remove the console screws. See Fig 1 .
  4. Remove the cup holder liner.
  5. Remove the cup holder screw. See Fig 2 .
  6. Lift the rear of the center floor console.
  7. Disconnect the electrical connector to the auxiliary power outlet. See Fig 3 .
  8. Slide the center floor console rearward to access the upper console screws.
  9. Remove the console screws. See Fig 4 .
  10. Remove the upper console.

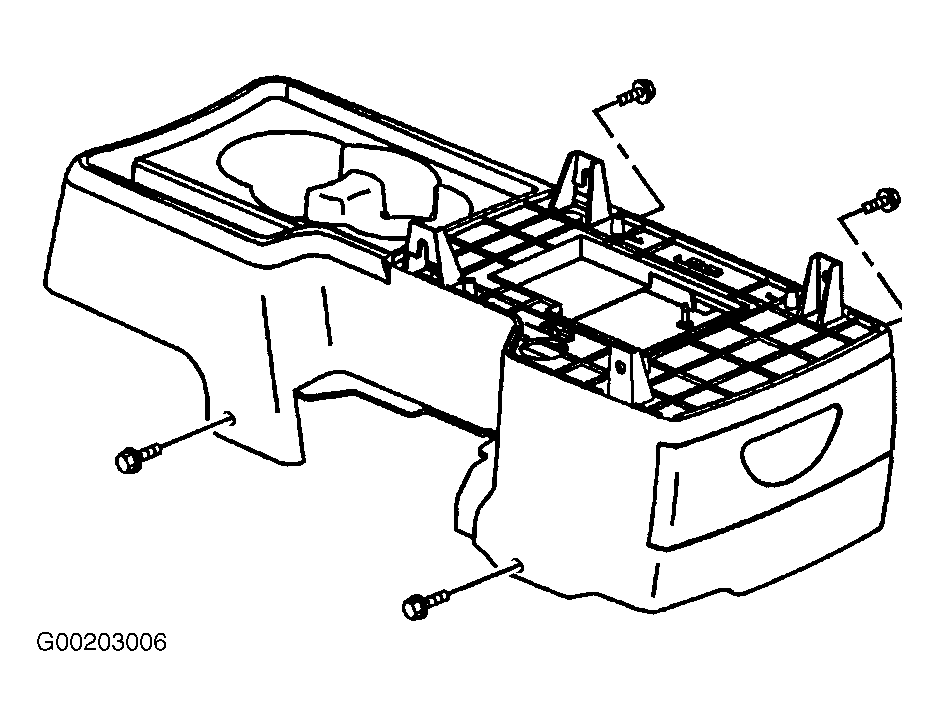

Fig 1: Removing Console Screws
G00203006Courtesy of GENERAL MOTORS CORP.

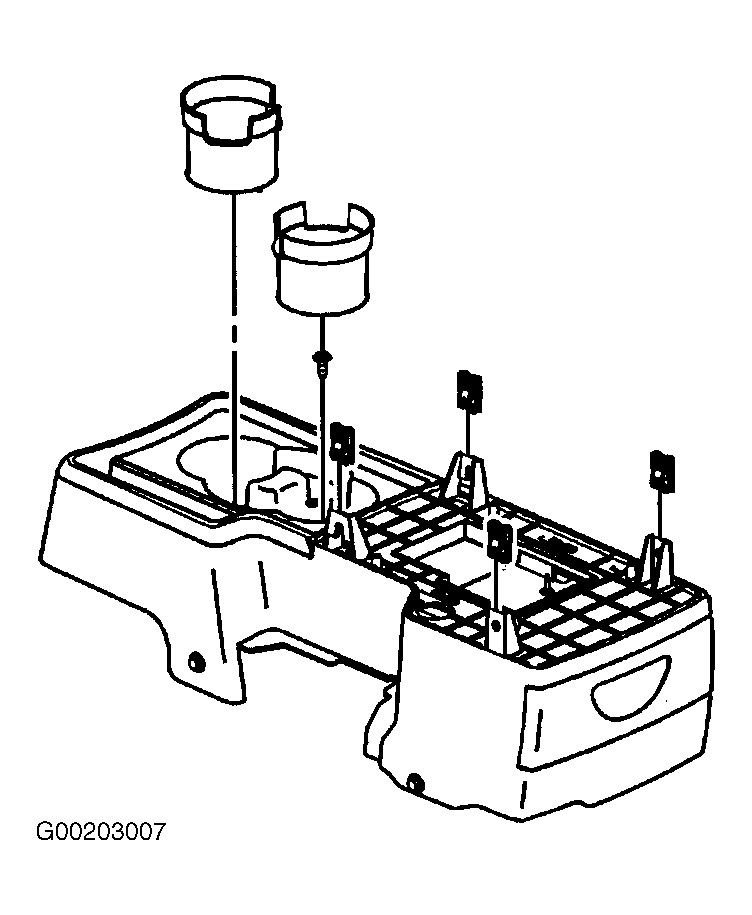

Fig 2: Removing Cup Holders
G00203007Courtesy of GENERAL MOTORS CORP.

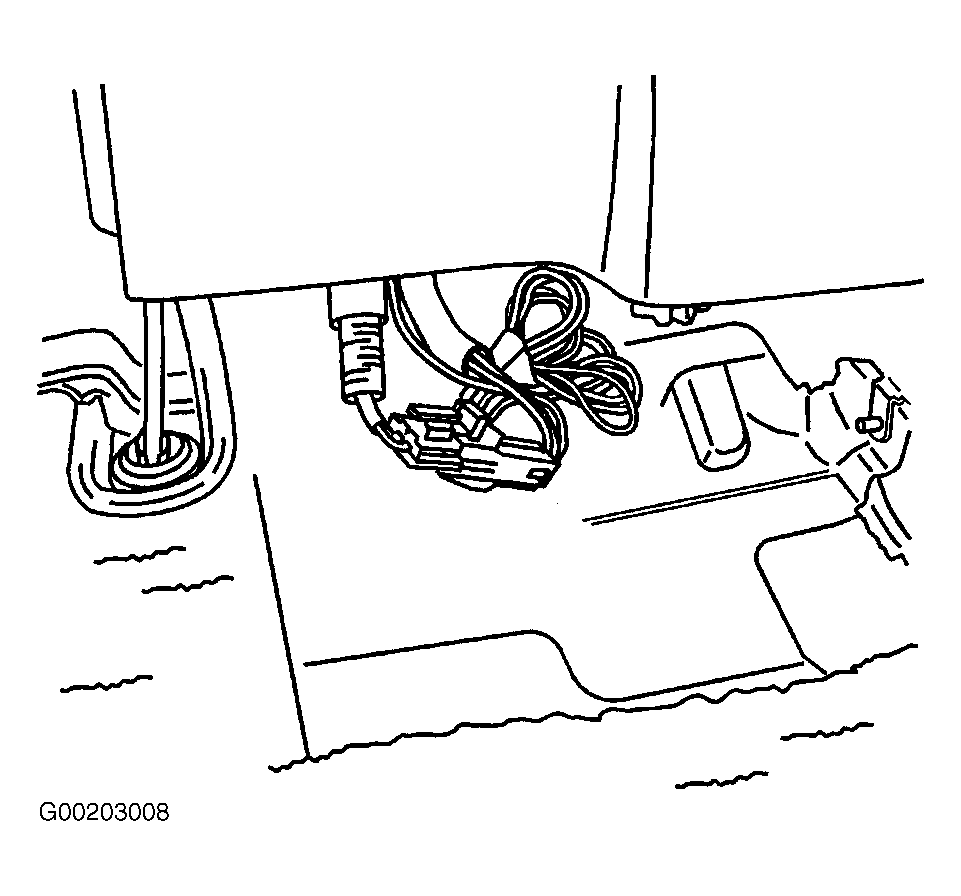

Fig 3: Disconnecting Auxiliary Power Outlet Electrical Connector
G00203008Courtesy of GENERAL MOTORS CORP.

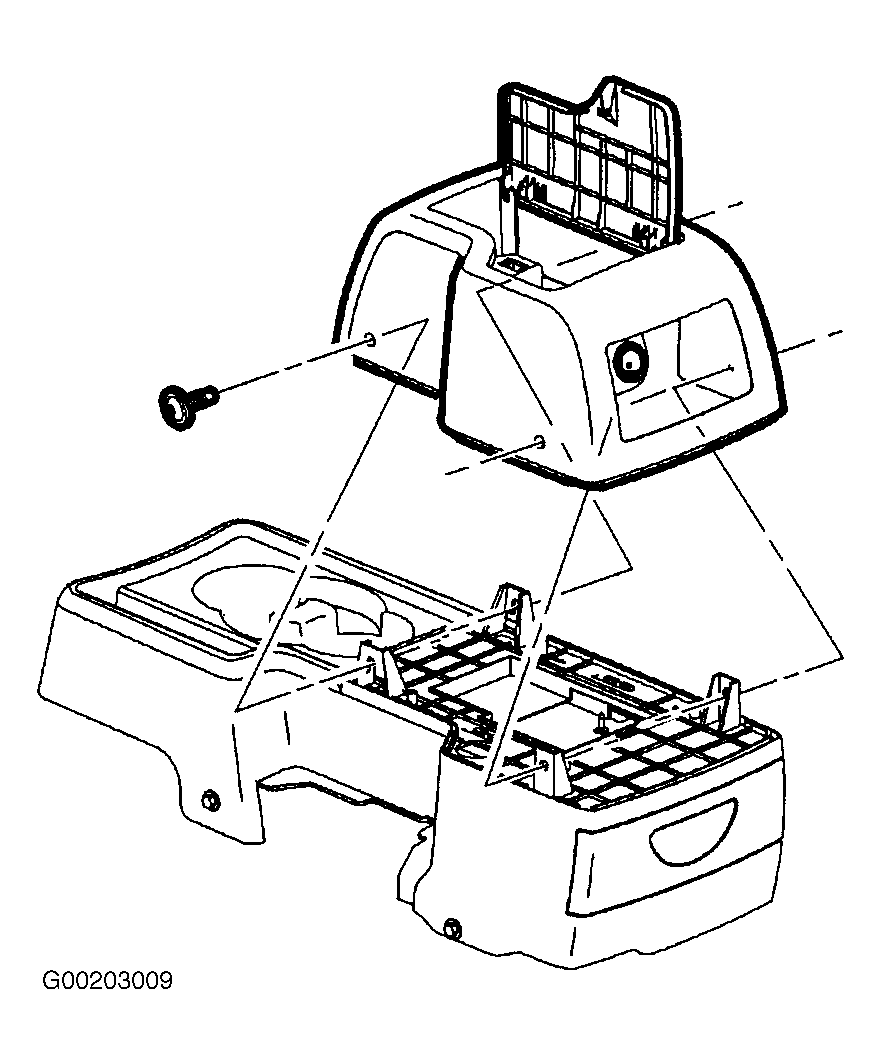

Fig 4: Removing Upper Console
G00203009Courtesy of GENERAL MOTORS CORP.
