Transaxle Range Switch

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Shift transaxle into Neutral position.
  2. Using Fascia Retainer Remover (J-36346), remove control cable assembly from transaxle range switch lever. See Fig 1 .
  3. Remove transaxle range switch lever nut and lever. See Fig 2 .
  4. Loosen transaxle range switch bolts.
  5. Insert Transaxle Range Switch Tool (J-44810) as shown and rotate switch until tool drops into position. See Fig 3 . Transaxle range switch tool is aligned when pin on tool drops into hole on transaxle range switch.
  6. Tighten transaxle range switch bolts to specification. Remove alignment tool. Install transaxle range switch lever and nut, then tighten to specification. See TORQUE SPECIFICATIONS  .
  7. Remove the alignment tool.
  8. Install the transaxle range switch lever and nut. See Fig 2 . Tighten the transaxle range switch lever nut to specification. See TORQUE SPECIFICATIONS  .
  9. Install control cable assembly to transaxle range switch lever. See Fig 1 .
  10. After adjusting switch, verify engine starts only in Park or Neutral. If engine starts in any other position, readjust switch.
Fig 1: Disconnecting Control Cable From Transaxle
G00203010Courtesy of GENERAL MOTORS CORP.

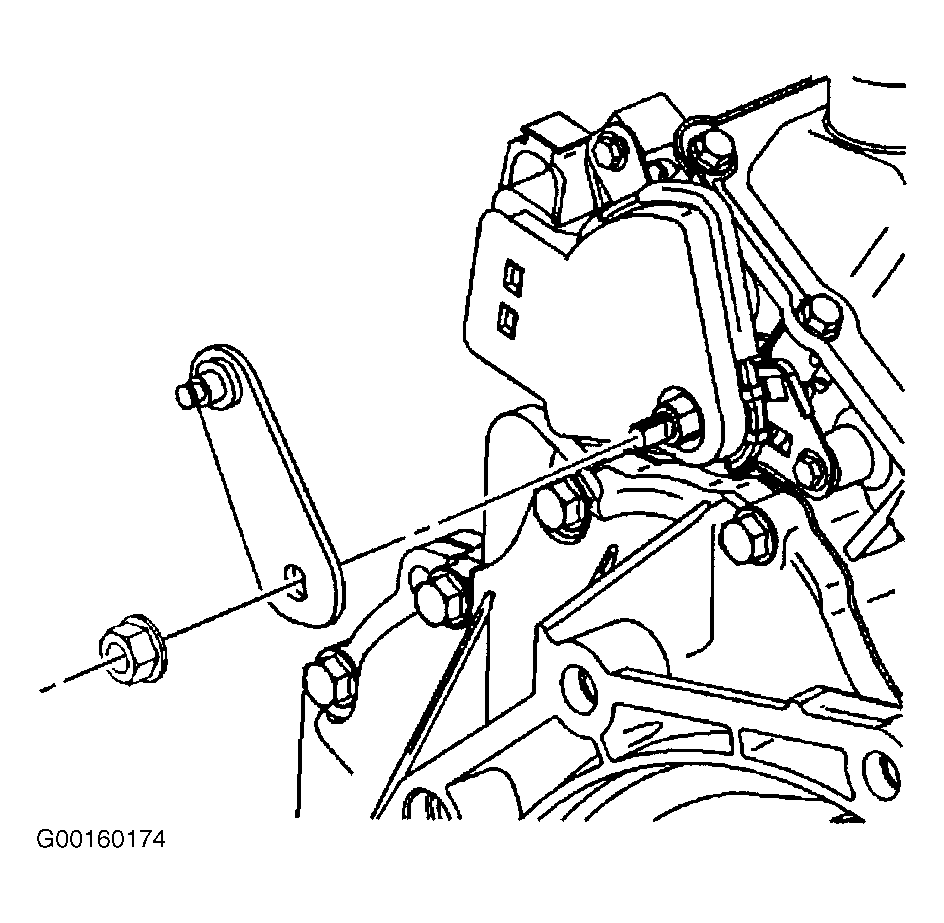

Fig 2: Removing Transaxle Range Switch Lever & Nut
G00160174Courtesy of GENERAL MOTORS CORP.
Fig 3: Installing Transaxle Range Switch Tool
G00078044Courtesy of GENERAL MOTORS CORP.
