Component Locations

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Locating Engine Control Components (1 Of 2)
G00134177Courtesy of GENERAL MOTORS CORP.

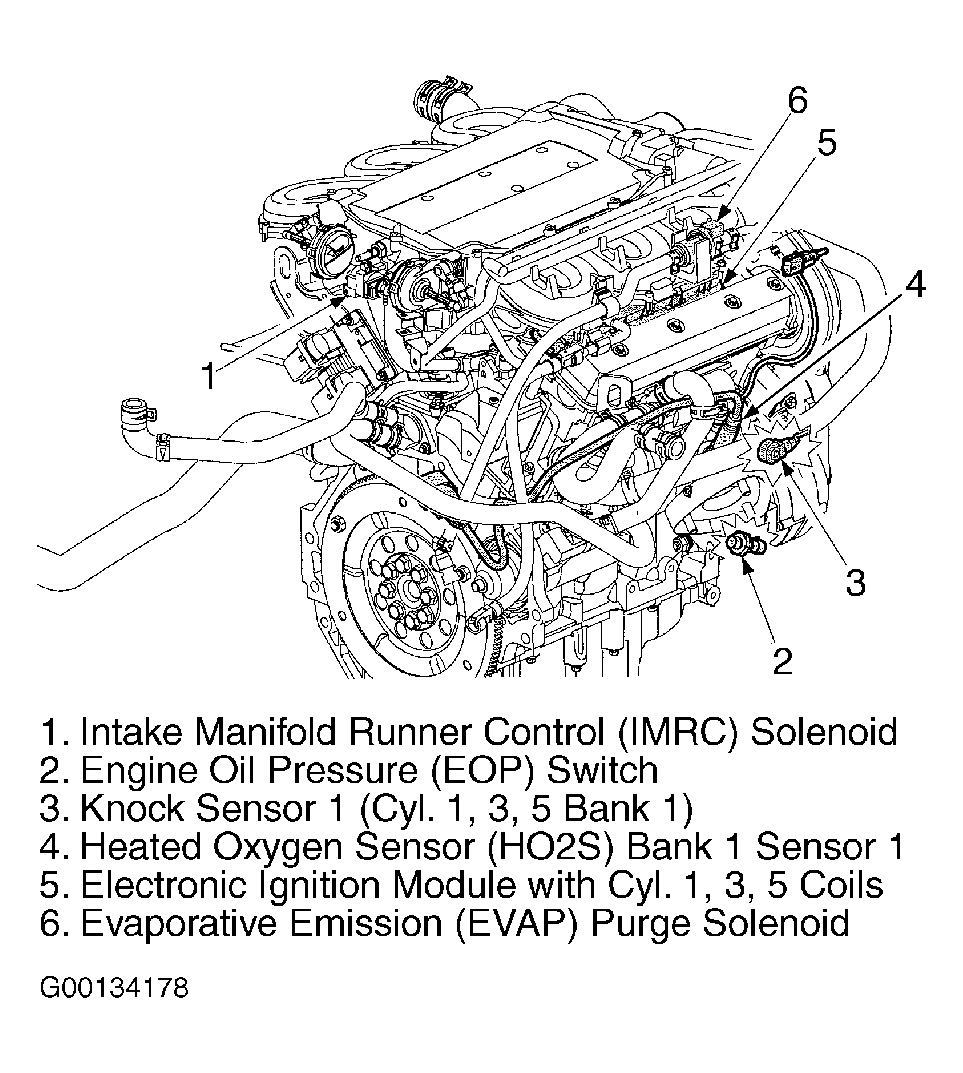

Fig 2: Locating Engine Control Components (2 Of 2)
G00134178Courtesy of GENERAL MOTORS CORP.
