HVAC Control Assembly: Installation

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the HVAC control assembly. Connect the vacuum connectors to the HVAC control assembly. Install the HVAC control assembly into the instrument panel.
  2. Install the retaining screws to secure the HVAC control assembly. Install the instrument panel accessory trim plate. Install the front floor console.

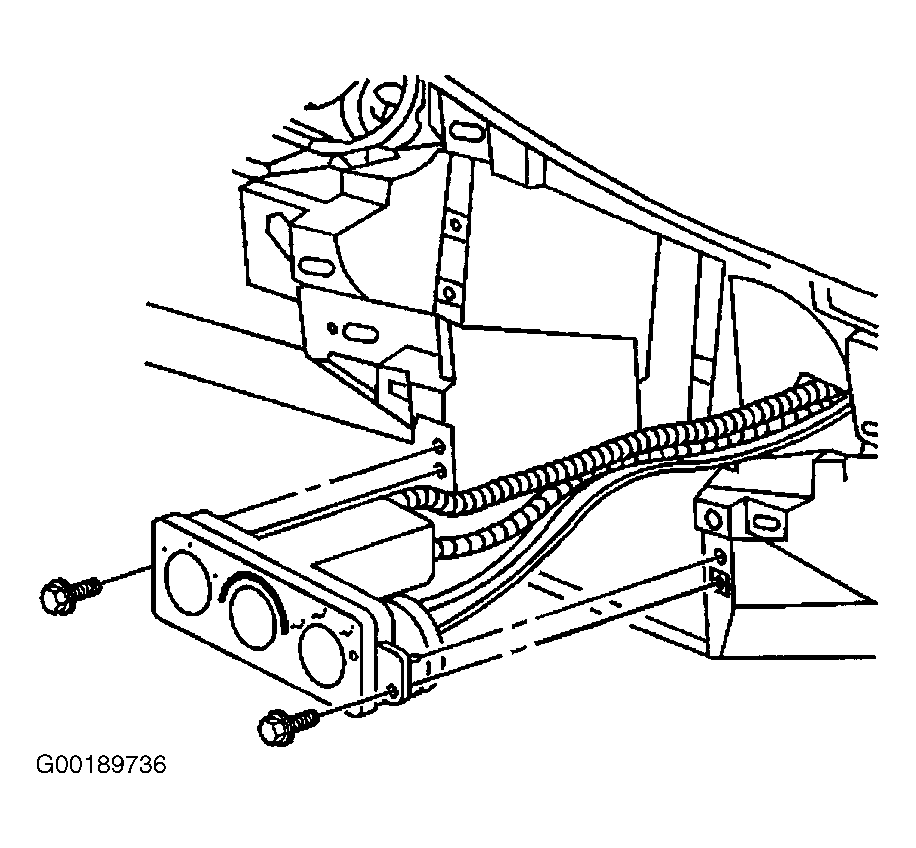

Fig 1: Removing HVAC Control Assembly Screws
G00189736Courtesy of GENERAL MOTORS CORP.

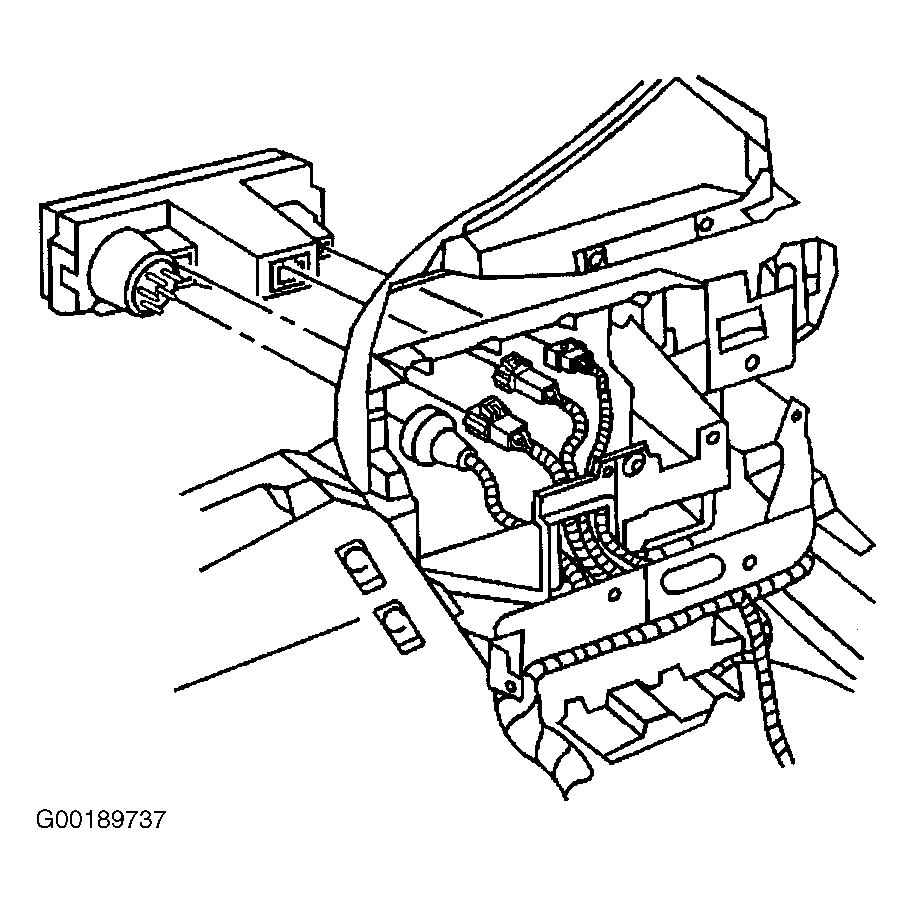

Fig 2: Removing & Installing HVAC Connectors
G00189737Courtesy of GENERAL MOTORS CORP.
