Blower Motor Resistor: Installation
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

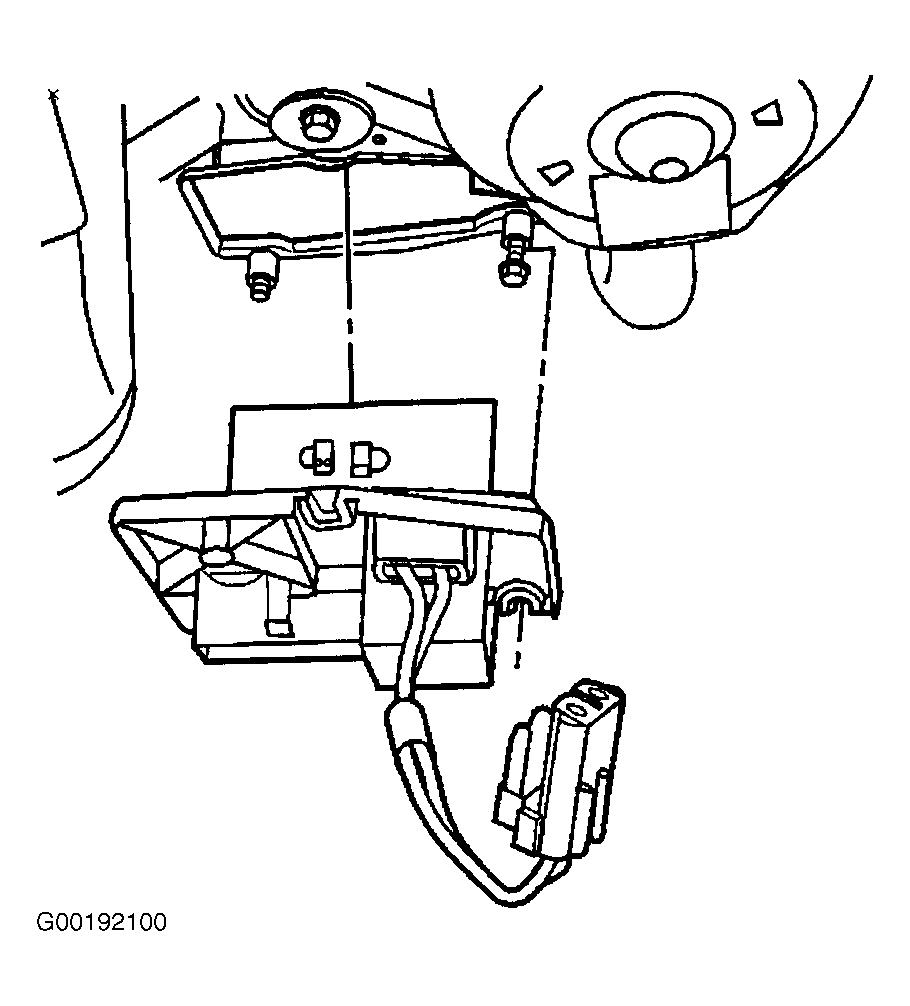

Install the blower motor resistor. Install the rear blower motor resistor screw. Tighten the screw to specification. See TORQUE SPECIFICATIONS . Tighten the forward blower motor resistor screws. Tighten the screws to specification. Connect the electrical connector to the blower motor. Connect the electrical connector to the blower motor resistor. Install the right side instrument panel insulator.
