Installation (Mode)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Connect actuator pushrod to mode door lever. Position mode actuator on to mounting slides of HVAC module assembly. Ensure lock tab locks mode actuator. Connect vacuum lines to mode actuator. Install instrument panel knee bolster bracket. Install left instrument panel insulator.

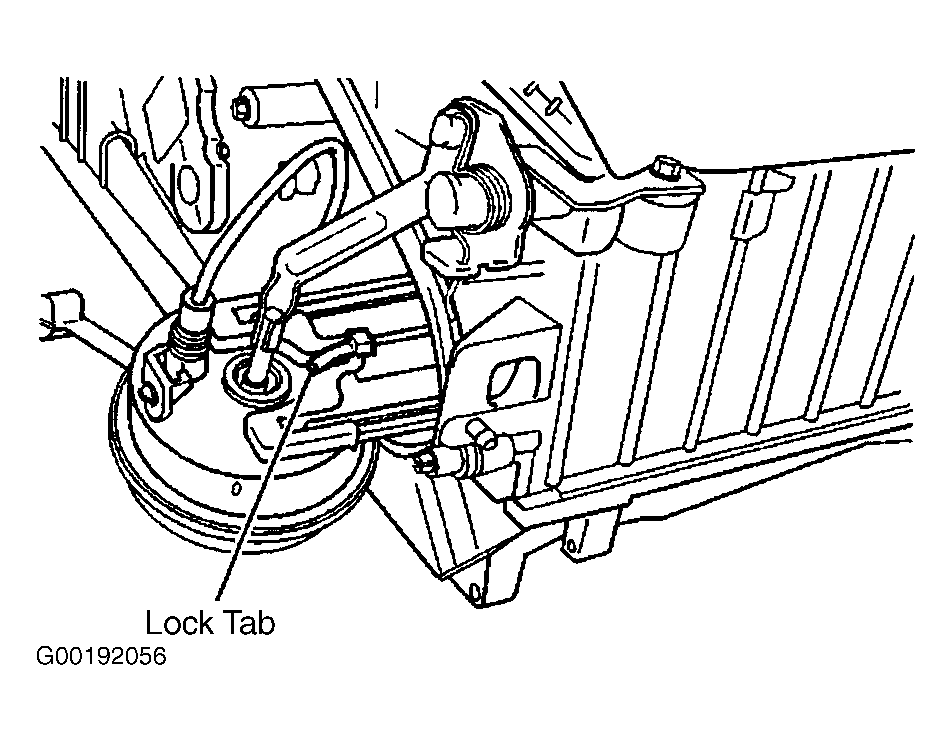

Fig 1: Locating Lock Tab

Courtesy of GENERAL MOTORS CORP.

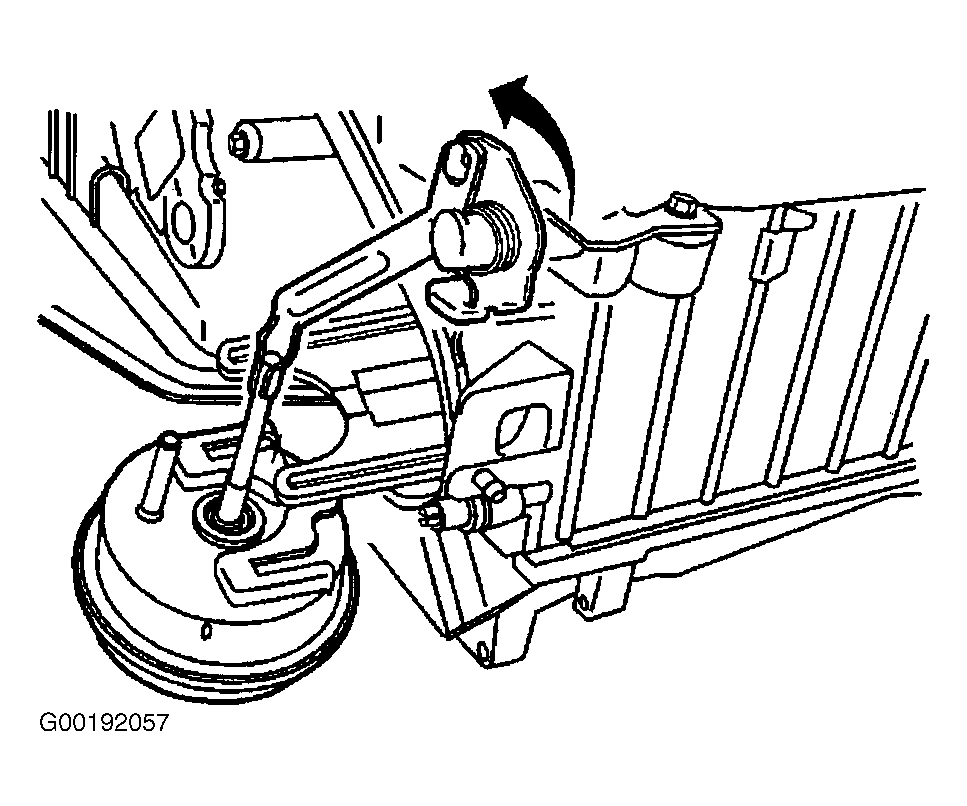

Fig 2: Removing & Installing Mode Actuator From HVAC Module

Courtesy of GENERAL MOTORS CORP.

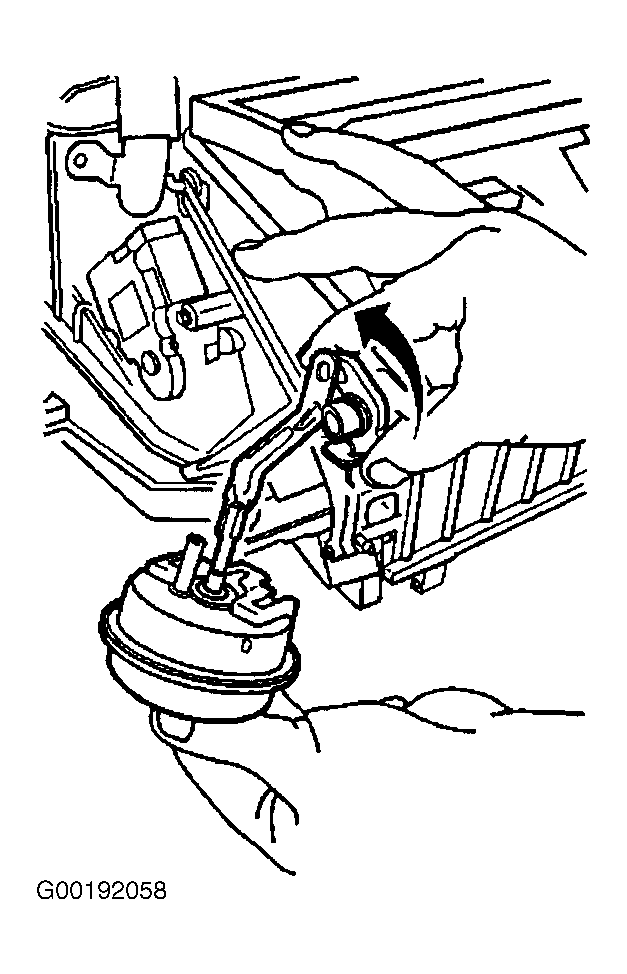

Fig 3: Disconnecting Actuator Linkage

Courtesy of GENERAL MOTORS CORP.
