Installation (Air Temperature - Drivers Side)
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

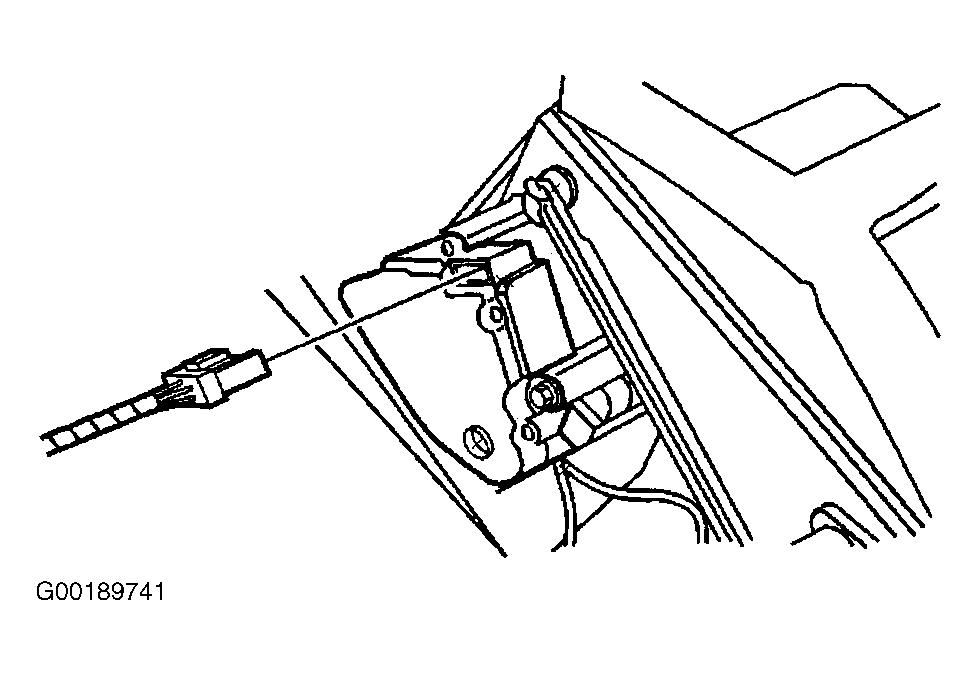

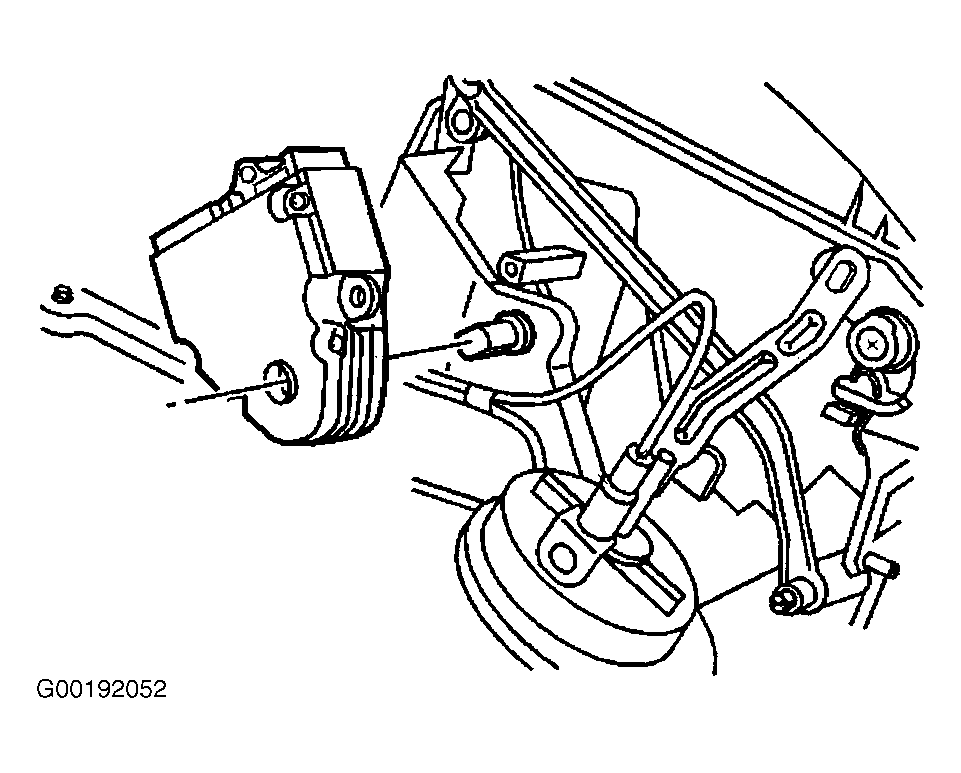

Position left air temperature actuator to align slots in electric actuator driver to flats on shaft. Align locating hole to alignment pin on HVAC module case. Slide actuator driver onto shaft. Set actuator driver completely on shaft so mounting holes are flush with mounting screws on HVAC module case. Install left air temperature actuator mounting screws. Connect electrical connector to left air temperature actuator. Install knee bolster. Install left instrument panel insulator.
