Removal & Installation

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable. Remove air cleaner and duct assembly. Discharge A/C system, using approved refrigerant recovery/recycling equipment. See RECOVERY, EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Loosen the accumulator hose nut from the accumulator. Disconnect the accumulator hose from the accumulator.
  2. Remove the A/C compressor hose block fitting nut from the accumulator. Disconnect the A/C compressor hose from the accumulator. Remove the accumulator bracket retaining bolt. See Fig 1. Remove the accumulator bracket bolt clamp. Remove the accumulator from the mounting bracket.
    3. NOTE: If a NEW accumulator is used, add 2 ounces of NEW PAG oil.
  3. To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS . Evacuate and recharge the system. See RECOVERY, EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING.

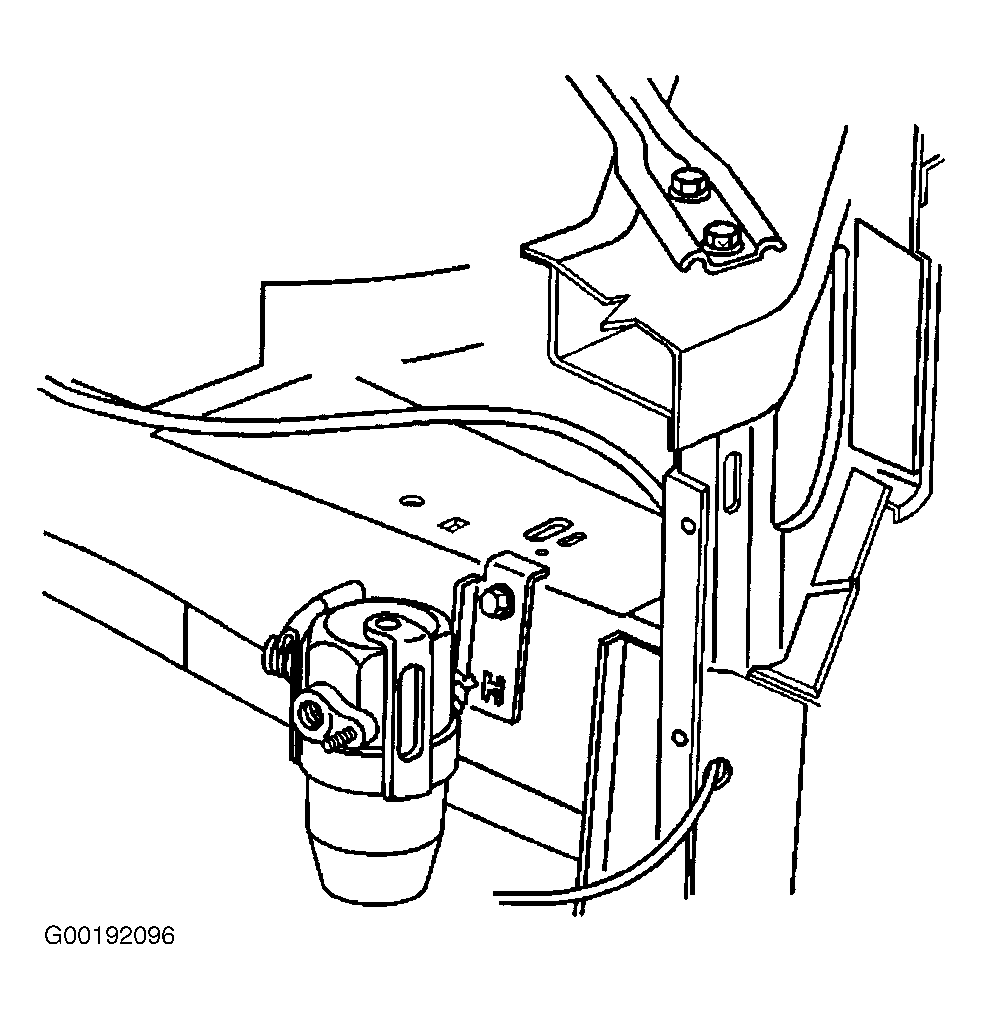

Fig 1: Removing & Installing Accumulator
G00192096Courtesy of GENERAL MOTORS CORP.
