Compressor Hose: Removal

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant from the system. See RECOVERY, EVACUATING & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING.

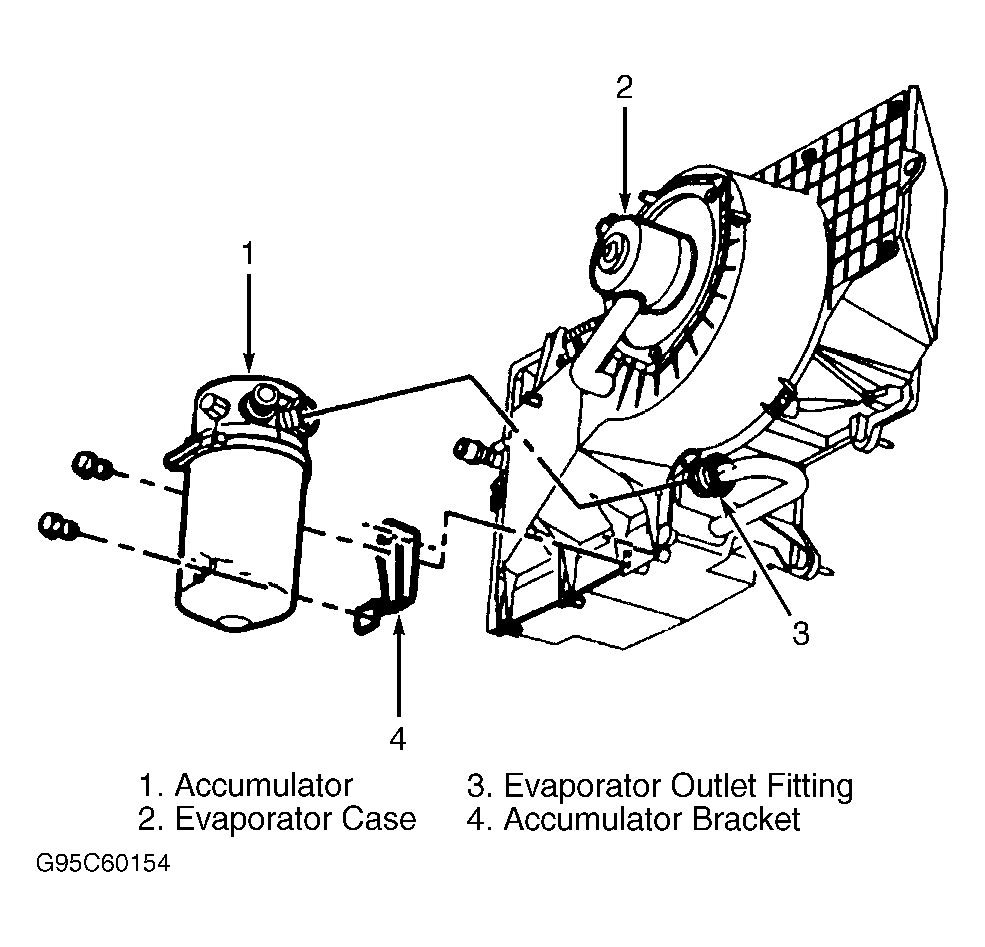

  2. Remove the coolant recovery or the surge tank. Remove the air cleaner from the vehicle. Remove the compressor hose assembly from the accumulator. See Figure.
  3. Remove the auxiliary hose connection from the compressor hose assembly. See Fig 1. Remove the compressor hose assembly from the condenser.
  4. Remove the compressor hose assembly bolt from the compressor. See Fig 2. Remove the compressor hose assembly from the compressor.
  5. Cap or plug all open connections to prevent contamination. Remove the compressor hose assembly from the vehicle.

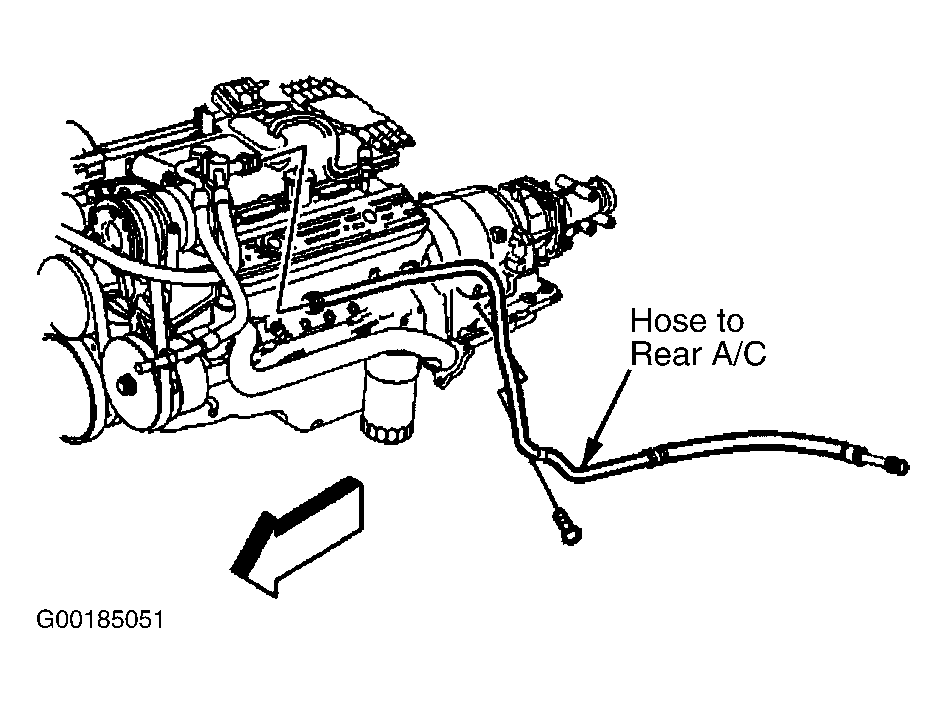

Fig 1: Identifying Auxiliary A/C Hose
G00185051Courtesy of GENERAL MOTORS CORP.

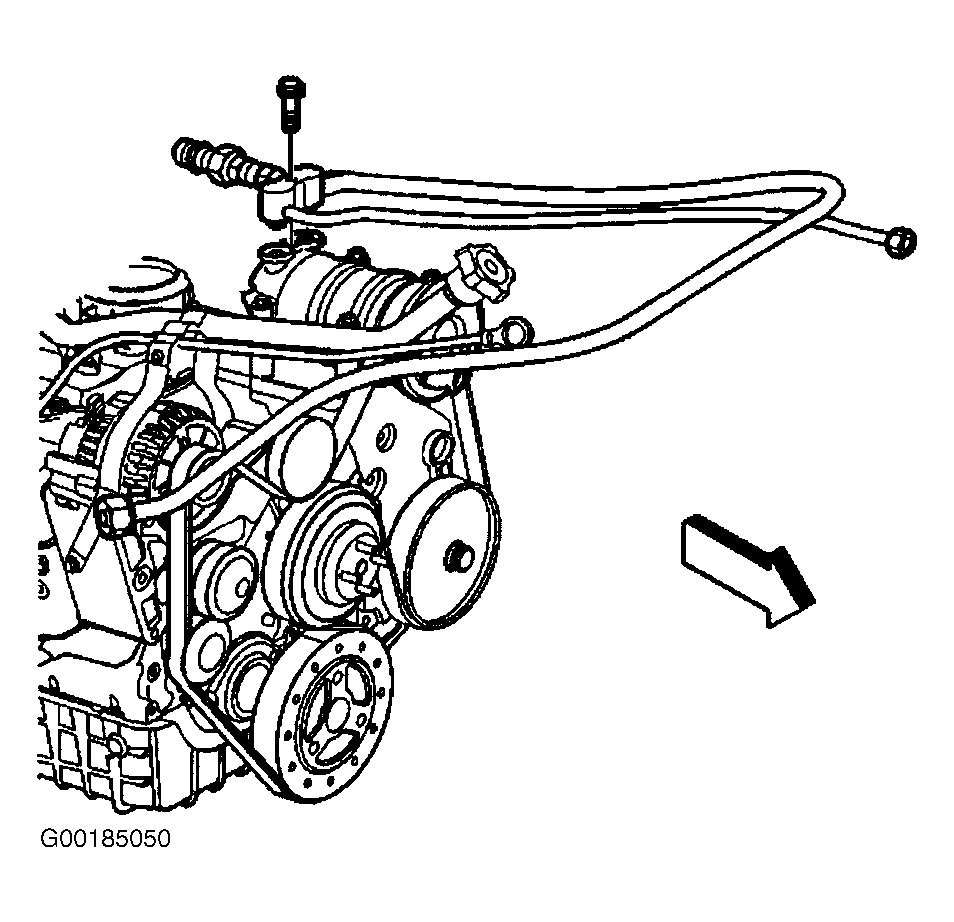

Fig 2: Identifying A/C Hose At Compressor
G00185050Courtesy of GENERAL MOTORS CORP.
