A/C Pressure Sensor: Removal

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

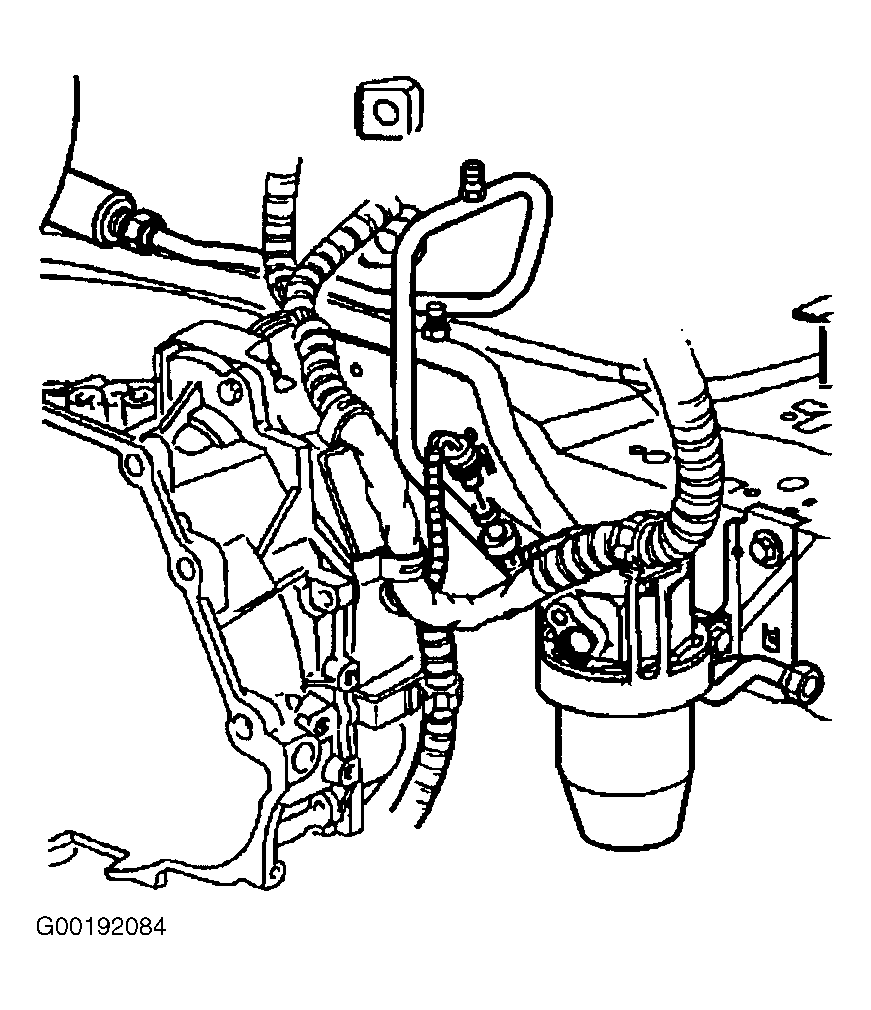

Remove the air cleaner assembly. Disconnect the A/C refrigerant pressure sensor from the electrical connector. See Figure. Remove the A/C refrigerant pressure sensor from the condenser tube. See Figure.
