"U" Series (Front)

WARNING: This page does not describe the selected car, but rather 64 other vehicles, including the 1999 Pontiac Montana, 1999 Oldsmobile Silhouette, 1999 Oldsmobile Bravada, 1999 GMC Yukon, and 1999 GMC Suburban. However, it is still accessible from the selected car via links, so may be relevant.

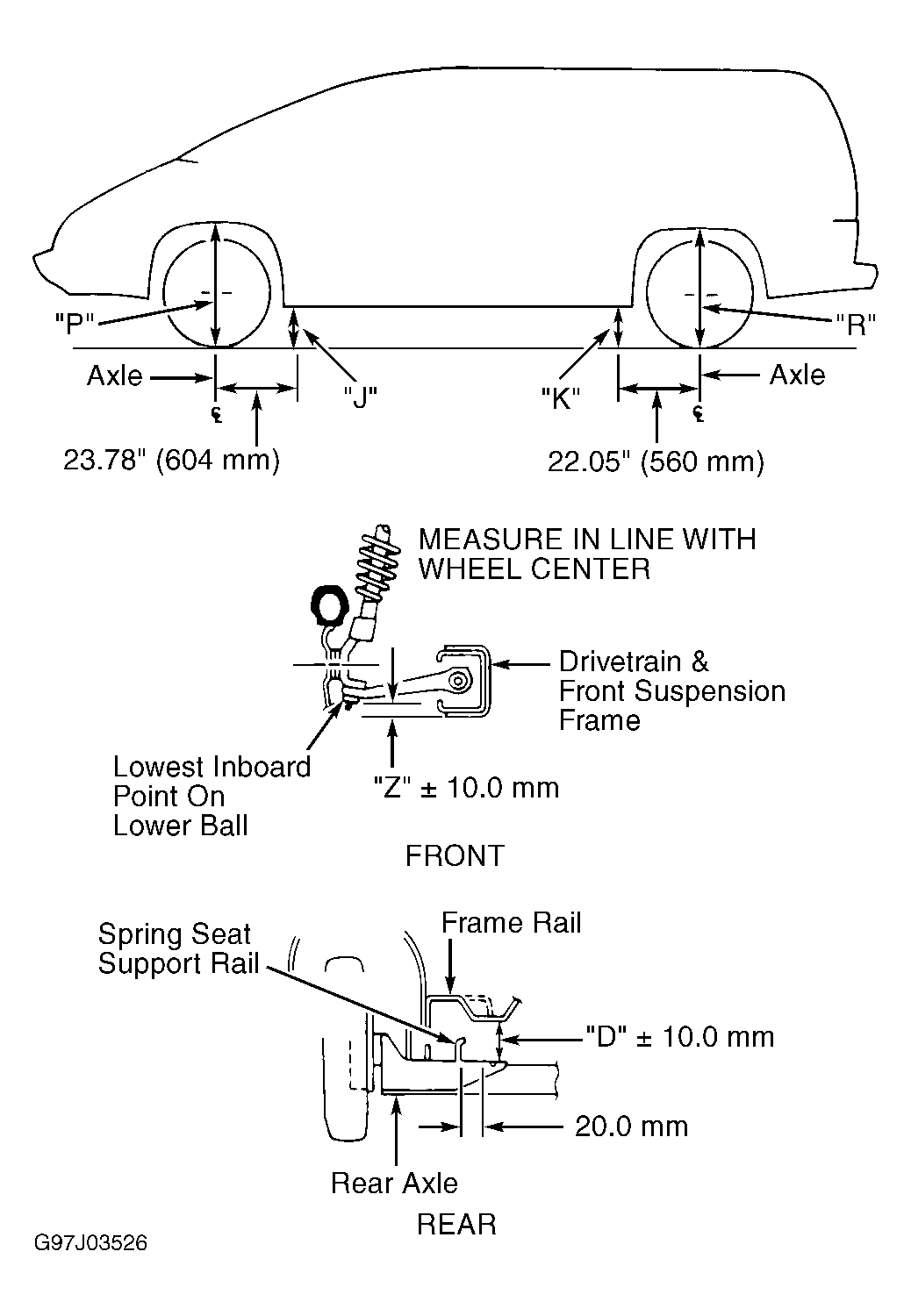

  1. Lift front bumper about 1.5" (38 mm). Gently remove hands and allow vehicle to settle on its own. Do this 2 more times. Measure and record dimensions "Z" and "J". See Figure .
  2. Push front bumper down about 1.5" (38 mm). Gently remove hands and allow vehicle to rise on its own. Do this 2 more times. Measure and record dimensions "Z" and "J" again. To obtain ride height, average the high and low measurements.
  3. If ride height is not as specified, repair or replace suspension components as necessary. See RIDE HEIGHT SPECIFICATIONS  table. If ride height is okay, align wheels. See WHEEL ALIGNMENT PROCEDURES  .
