"G" Series (Rear)

WARNING: This page does not describe the selected car, but rather 64 other vehicles, including the 1999 Pontiac Montana, 1999 Oldsmobile Silhouette, 1999 Oldsmobile Bravada, 1999 GMC Yukon, and 1999 GMC Suburban. However, it is still accessible from the selected car via links, so may be relevant.

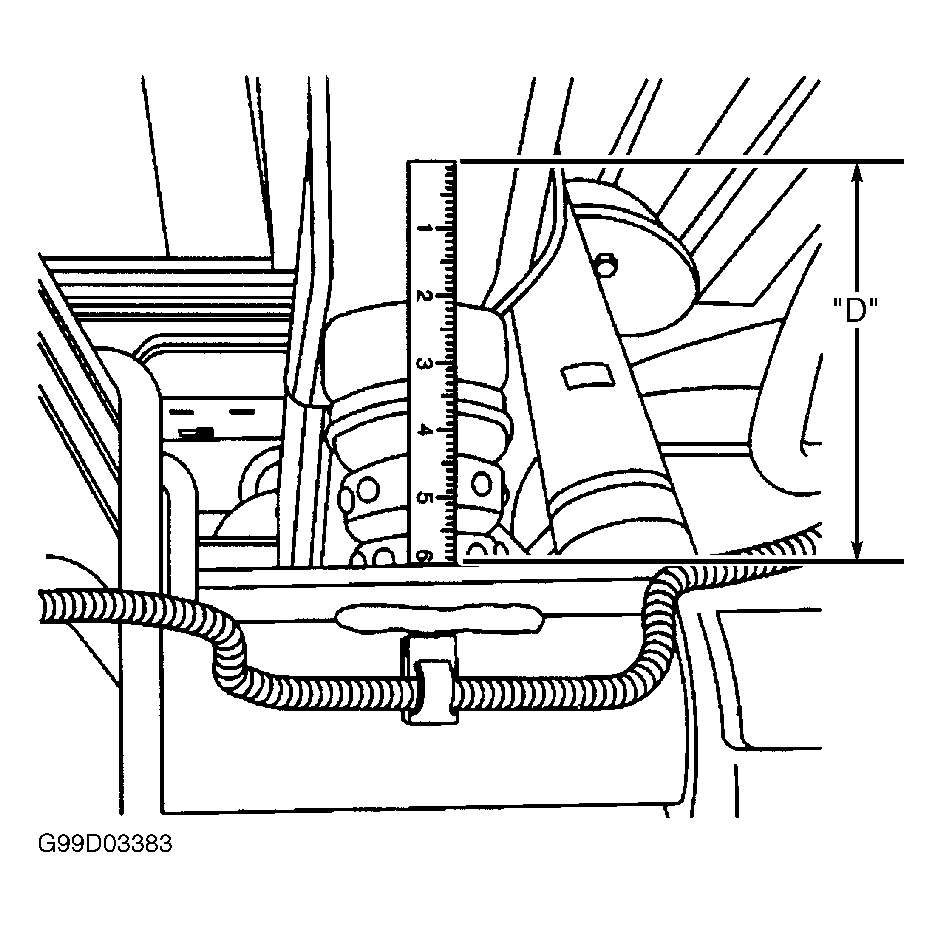

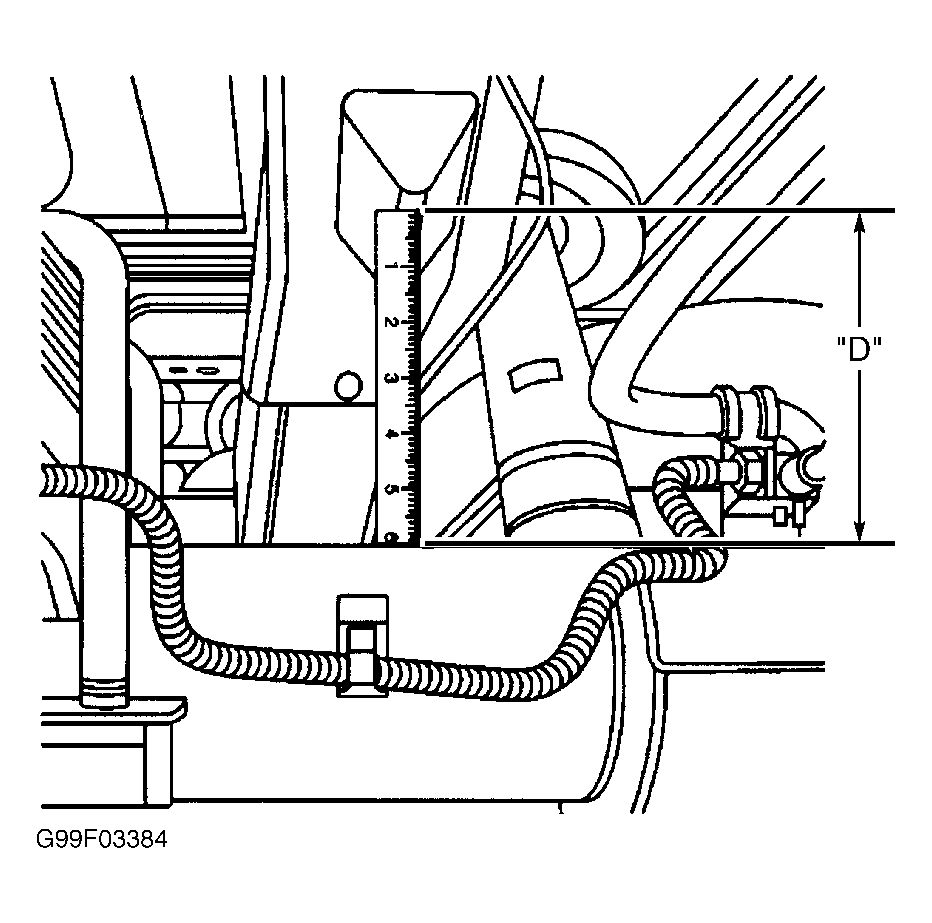

  1. Lift front bumper about 1.5" (38 mm). Gently remove hands and allow vehicle to settle on its own. Do this 2 more times. Measure ride height ("D") on right side of vehicle. See Figure and Figure .
  2. Push front bumper down about 1.5" (38 mm). Gently remove hands and allow vehicle to rise on its own. Do this 2 more times. Measure ride height on right side of vehicle again. Average measurements.
  3. Repeat steps  1 and  2 on left side of vehicle. Compare right and left side measurements. Rear trim height should not exceed 0.5" (13 mm) from side-to-side (left to right). If ride height is not as specified, repair or replace suspension components as necessary. If ride height is okay, align wheels. See WHEEL ALIGNMENT PROCEDURES  .
