Shift Cable: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, 2004 Chevrolet Cab & Chassis Silverado, and 2003 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Instal the cable to the hole in the floor panel. See Figure .
  2. Install the cable grommet to the floor panel.
  3. Position the carpet and insulation around the driver's area.
  4. Raise the vehicle.

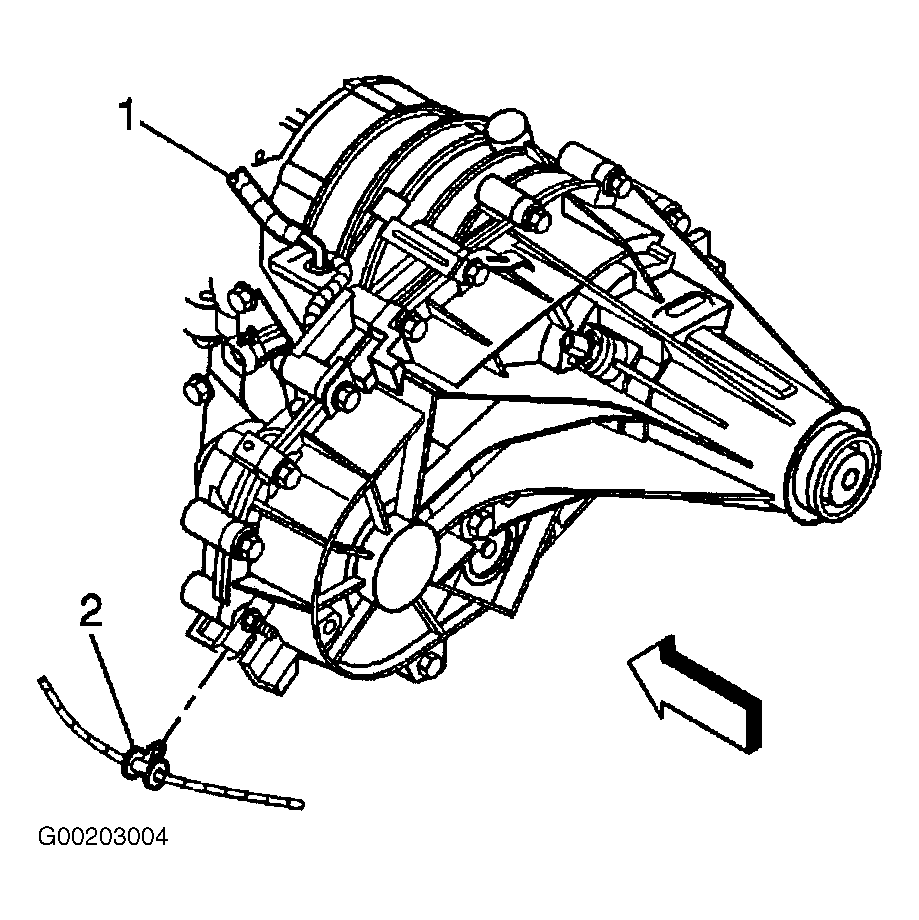

  5. Install the cable clips (2) to the transfer case, if equipped. See Figure .
  6. Install the cable clips to the floor panel reinforcement. See Figure .
  7. Ensure the transmission manual shaft is positioned in mechanical Park.
  8. Install the cable to the transmission bracket. See Figure .
  9. Install the retainer securing the cable to the bracket.
  10. Install the range selector cable end (2) to the transmission range selector lever ball stud (1). See Figure .
  11. Lower the vehicle.
    NOTE: Avoid unnecessary twisting/bending of the range selector cable when removing the cable from the support.
  12. Install the range selector cable to the support. See Figure .
  13. Install the bolt securing the cable support to the brace. See Figure . Tighten the bolt to specification. See TORQUE SPECIFICATIONS  .
  14. Install the cable to the steering column bracket. See Figure .
  15. Install the cable end to the steering column ball stud.
  16. Install the retainer securing the cable to the steering column. See Figure .
  17. Install the instrument panel knee bolster.
  18. If all of the gear positions cannot be achieved, adjust the cable. See SHIFT CABLE  under ADJUSTMENTS.
