Heat Shield: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, 2004 Chevrolet Cab & Chassis Silverado, and 2003 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.

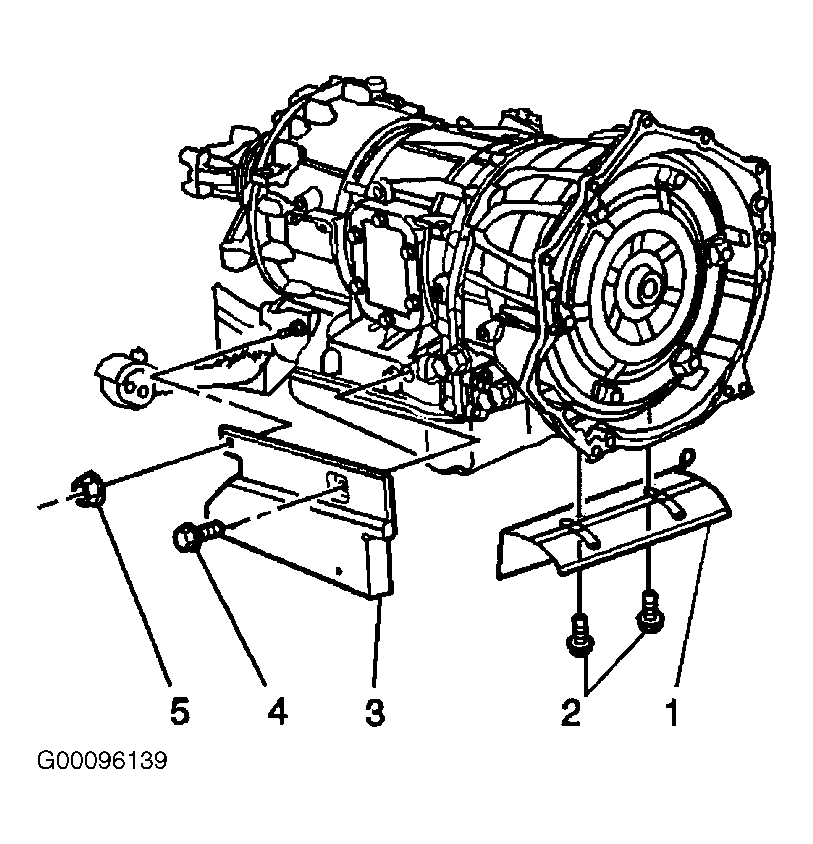

  1. Install the side heat shield (3) to the transmission. See Figure .
  2. Install the bolt (4) and the nut (5) to the side heat shield (3). Tighten the bolt (4) and the nut (5) to specification. See TORQUE SPECIFICATIONS  .
  3. Install the front heat shield (1) to the transmission.
  4. Install the bolts (2) to the front heat shield (1). Tighten the bolts to specification. See TORQUE SPECIFICATIONS  .
  5. Lower the vehicle.
